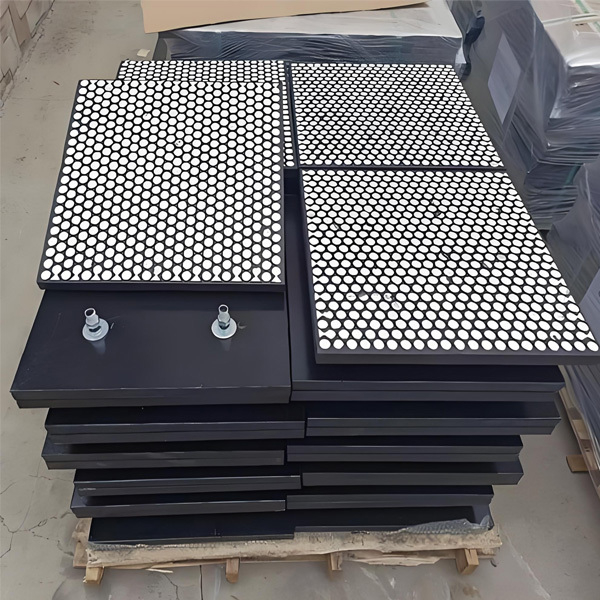

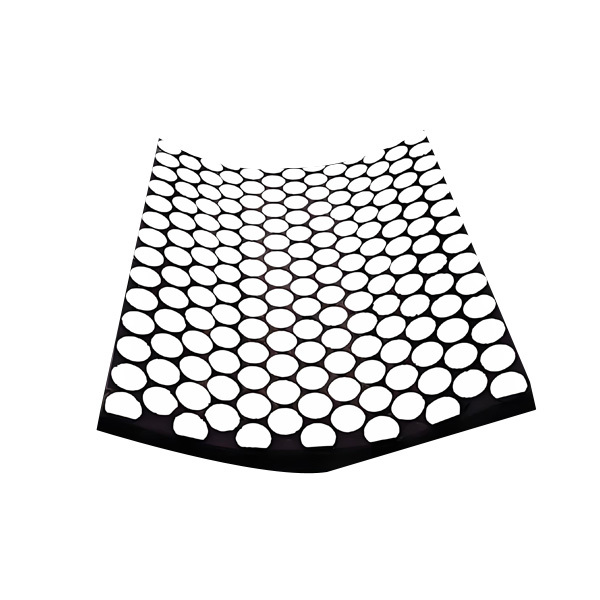

Cylindrical Ceramic Liner ZJCER-HD25

ZJCER-HD25 ceramic liner, specially designed for high wear and high impact working conditions. It has strong wear resistance, especially in the wear environment of high-speed operating materials. The rubber module absorbs impact energy, and the ceramic blocks (Al2O3) vulcanized on the rubber provide wear protection for the surface. The bottom steel plate is equipped with high-strength bolts, making installation simple and quick.

Classification:

Ceramic liner

Key words:

Cylindrical Ceramic Liner ZJCER-HD25

Related Downloads

For more information, please contact us directly by phone or email

86-371-66631118

rmconveyor@aliyun.com

Online inquiry

Product Details

Brand: Tianlihe

　　Size: 500x500x25mm

　　500x250x25mm

　　Ceramic Type: Cylinder + Fishbone

　　Ceramic Thickness: 12mm

　　Rubber Thickness: 8mm

　　Steel Plate Thickness: 5mm

Ceramic liner product structure:

　　● 12mm ceramic (Al2O3) - wear-resistant;

　　● 8mm elastic rubber layer - absorbs impact loads;

　　● 5mm steel plate - easy to install;

Ceramic liner features:

　　1. The three-in-one wear-resistant ceramic liner adopts modular production and assembly, allowing for replacement in high wear areas;

　　2. Provides double-headed bolt fixation and weldable installation methods;

　　3. Special rubber vulcanization process ensures that the ceramic blocks embedded in the rubber layer are firmly bonded and also serves as a cushioning layer to prevent ceramic block breakage;

　　4. The shape, size, and thickness of the ceramic blocks or liners can be customized according to your specific working conditions or applications.

Typical applications of ceramic liners:

　　Used as wear-resistant inner lining for equipment that transports large materials at room temperature, with severe wear and strong impact.

　　● Vibrating feeders, transfer chutes;

　　● Pipes, silos, bins, storage;

　　● Large buckets, discharge hoppers, transfer stations, cyclones, chutes.
