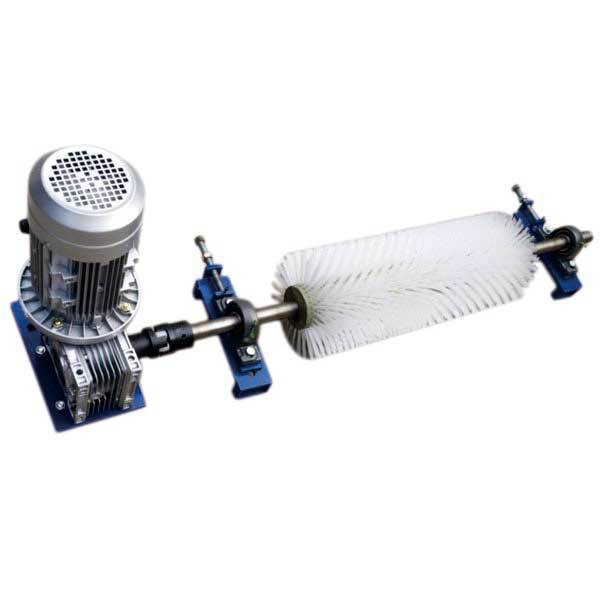

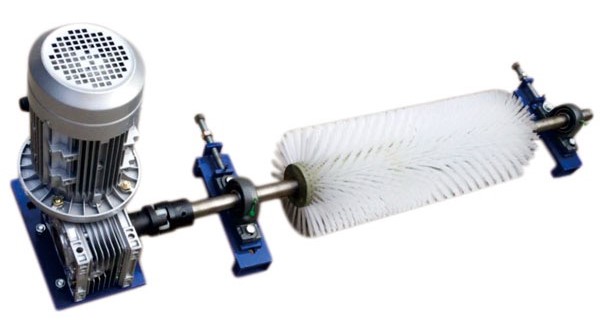

Brush Belt Cleaner With Motor

The BAI-OTT brush cleaner is placed under the working surface of the conveyor belt. The electric brush can effectively clean the surface of the conveyor belt such as coal dust, mud,powery materials and other viscous materials, and is more suitable for the herringbone belt cleaning.

Classification:

Belt Cleaning System

Key words:

Related Downloads

For more information, please contact us directly by phone or email

86-371-66631118

rmconveyor@aliyun.com

Online inquiry

Product Details

Abstracts:

Description:

The electric roller brush cleaner is a new type of cleaner developed by our company. It has a nylon brush roller that is easy to replace and wear-resistant. The brush wire is made of nylon wire 1010, which is wear-resistant, elastic and high temperature resistant. It has the advantages of quick removal of materials on the working surface of the belt, no damage to the belt, long service life, and easy installation. The effect is better when used together with the Polyester Cleaner.

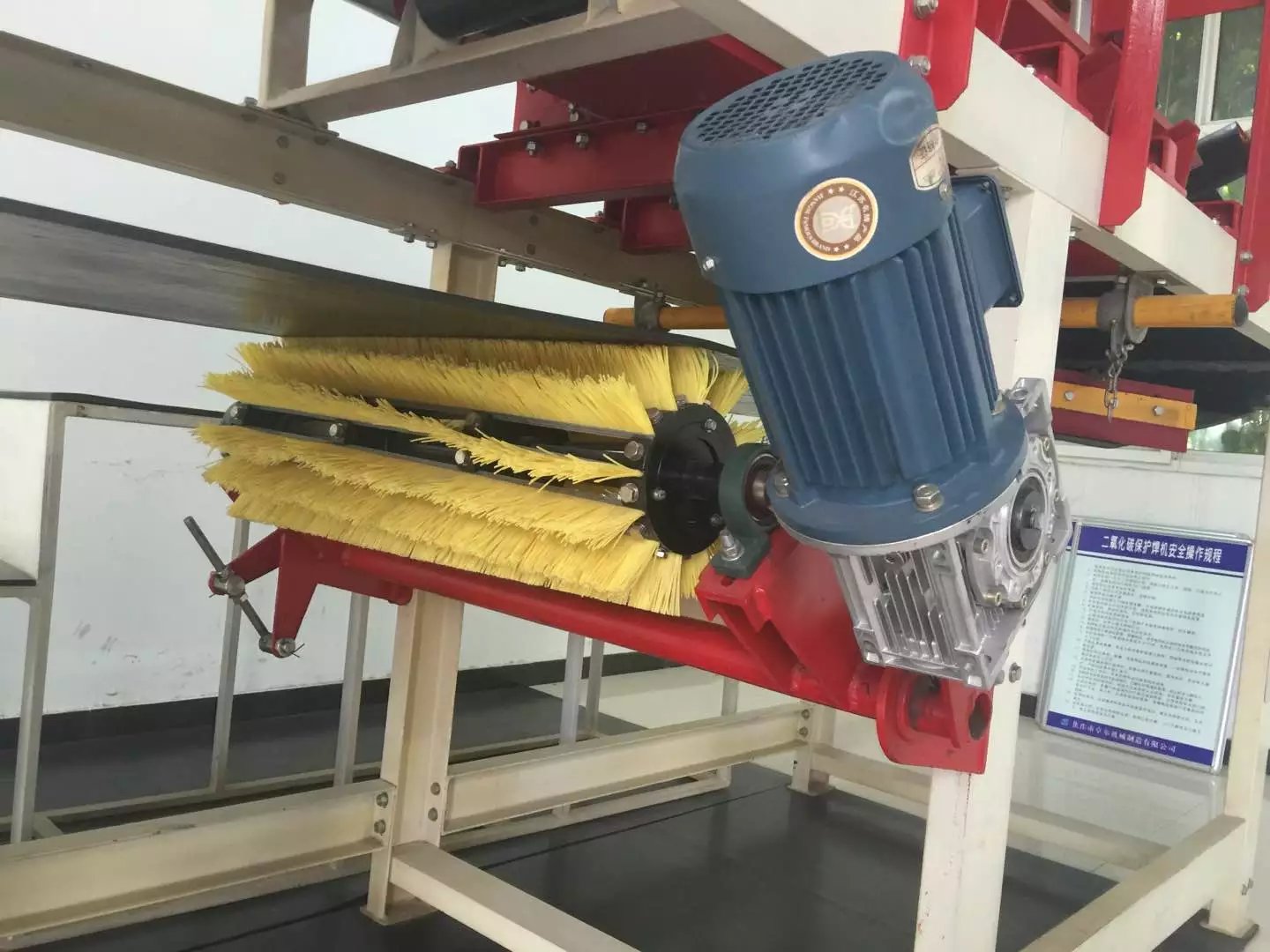

Brush belt cleaner can effectively clean the surface of the roller and the bottom surface of the conveyor belt. The cylindrical brush is driven by the motor. The brush tip is slightly in contact with the belt surface. The rotation direction of the brush is opposite to the running direction of the return conveyor belt.

The particulate material on the belt surface is brushed to achieve the purpose of thorough cleaning. Usually, the brush is in contact with the belt about 3mm-5mm. It has the functions of preventing the deviation of the conveyor belt, extending the service life of the conveyor belt and accessories, and preventing accidents. It is a necessary accessory for the belt conveyor.

Specifications:

Order No.	Product Name	Belt Width(mm)	Motor Power	Brush Width(mm)	Installation Site
ZJCLEAN- BU-650	Electric Brush Cleaner	650	1.1KW	1300	Return Belt
ZJCLEAN- BU-800	Electric Brush Cleaner	800	1.1KW/1.5KW	1450	Return Belt
ZJCLEAN- BU-1000	Electric Brush Cleaner	1000	1.5KW	1650	Return Belt
ZJCLEAN- BU-1200	Electric Brush Cleaner	1200	2.2KW	1850	Return Belt
ZJCLEAN- BU-1400	Electric Brush Cleaner	1400	2.2KW	2050	Return Belt
ZJCLEAN- BU-1600	Electric Brush Cleaner	1600	2.2KW/3KW	2250	Return Belt
ZJCLEAN- BU-1800	Electric Brush Cleaner	1800	3KW	2450	Return Belt
ZJCLEAN- BU-2000	Electric Brush Cleaner	2000	3KW/3.5KW	2650	Return Belt
ZJCLEAN- BU-2200	Electric Brush Cleaner	2200	3KW/4KW	2850	Return Belt

Further Dimensions on Demand.

Motor And Reducer Parameters:

Operating Voltage	380V/660V AC±10%	Non-standard voltage needs to be customized
Power	1.1KW/1.5KW/2.2KW/3KW	Customize
Output speed	132r/min	Customize
Transmission ratio	10.78i	Customize
Output torque	128Nm	Customize
Lubricating oil	L-CKD Heavy duty industrial gear oil	Customize
Ambient temperature	-20°C-60°C	Customize

Belt Width（mm）	Cleaner Length（mm）	Brush Roller Length（mm）
650	1200	650
800	1450	800
1000	1650	1000
1200	1850	1200
1400	2050	1400
1600	2250	1600
1800	2450	1800
2000	2650	2000
2200	2850	2200

Parameters:

Model Number: ZJCLEAN-BU

Belt Width: 650mm-2200mm

Material: Nylon

Belt Speed: 500-1000 fpm (2.5 m/s-5m/s)

Operating Voltage: 380V/660v AC±10%

Temperature: Between -30 degrees F and 180 degrees F

Colour: Customised production

Corrosive Conditions: YES

Underground Applications: YES

Starting quantity: 1 Set

Warranty: 6 months

Supply capacity: 450 Set/ month

Certification:ISO9001;ISO14001;ISO45001;CE;UPEM

Packing: pallet, wooden case

Delivery Time：1～5 Set，1-3days / 10～20 Set，3-5days

FAQ：

1、How long will your rubber sheets last?

Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.

2、How can I get some samples?

We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.

3、Can I visit your factory?

Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
