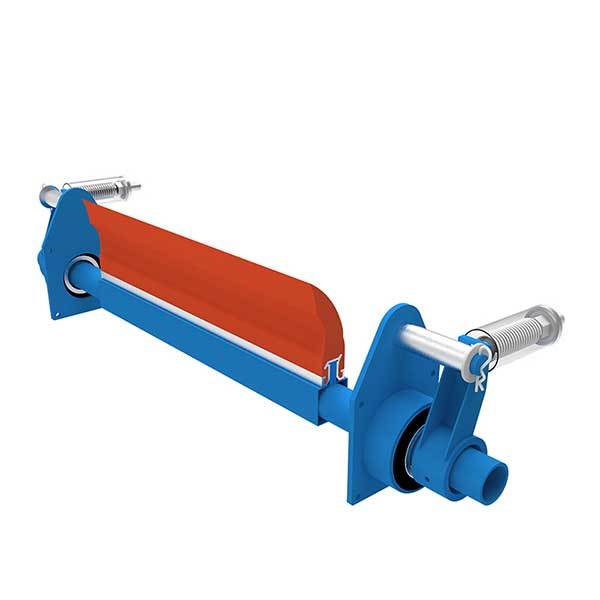

Constant Pressure Primary belt Cleaner
Classification:
Key words:
Related Downloads
For more information, please contact us directly by phone or email
Product Details
Abstracts:
BAI-OTT is a professional conveyor belt cleaner and polyurethane scraper manufacturer in China. We design and manufacture cleaning machines including light duty PU cleaners, constant pressure belt cleaners, tungsten alloy cleaners, ceramic cleaners, general purpose sweepers, secondary de-watering cleaners, secondary alloy cleaners, general purpose alloy cleaners, tail V-cleaners, motorised roller brush cleaners, and customised polyurethane blades.
Description:
One thing that everyone understands is that the primary cleaner is the most important part of the conveyor belt cleaning system, it is located under the head drum and is the first step in cleaning the whole system, 90% of the residual material can be cleaned through it during transport.
It is therefore necessary to ensure the strength of the frame and drawcord, as well as the wear resistance of the blades, which will affect the overall effectiveness of the product.
|
Order No. |
Product Name |
Belt Width(mm) |
Blade Width(mm) |
Total Length(mm) |
|
ZJCLEAN-PU/R-650 |
Constant Pressure Cleaner |
B650 |
650 |
1650 |
|
ZJCLEAN-PU/R-800 |
Constant Pressure Cleaner |
B800 |
800 |
1800 |
|
ZJCLEAN-PU/R-1000 |
Constant Pressure Cleaner |
B1000 |
1000 |
2000 |
|
ZJCLEAN-PU/R-1200 |
Constant Pressure Cleaner |
B1200 |
1200 |
2200 |
|
ZJCLEAN-PU/R-1400 |
Constant Pressure Cleaner |
B1400 |
1400 |
2400 |
|
ZJCLEAN-PU/R-1600 |
Constant Pressure Cleaner |
B1600 |
1600 |
2600 |
|
ZJCLEAN-PU/R-1800 |
Constant Pressure Cleaner |
B1800 |
1800 |
2700 |
|
ZJCLEAN-PU/R-2000 |
Constant Pressure Cleaner |
B2000 |
2000 |
2900 |
|
ZJCLEAN-PU/R-2200 |
Constant Pressure Cleaner |
B2200 |
2200 |
3100 |
|
ZJCLEAN-PU/R-2400 |
Constant Pressure Cleaner |
B2400 |
2400 |
3300 |
Further Dimensions on Demand.
Difficulty
*High-speed conveyor line
*Difficult to clean up muddy bulk
*High temperature conveyor line
*Scraper replacement hassle
*Blade wears too fast
*Frequent adjustment of locking is time-consuming and labor-intensive
Advantage

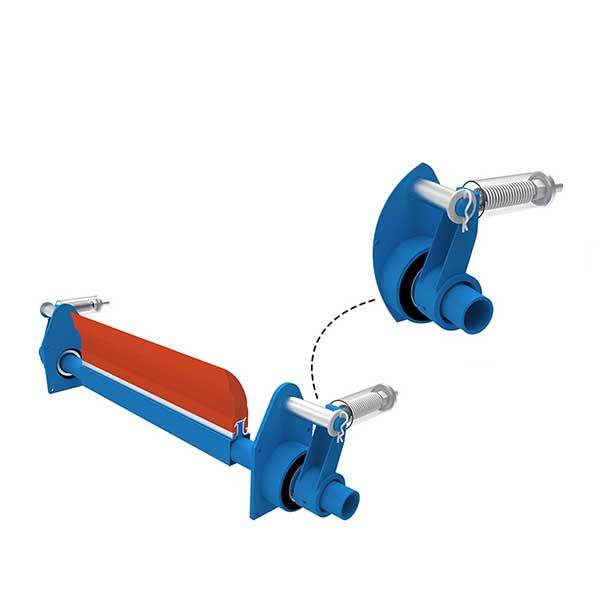

*The in-line scraper has a hollow buffer hole, which has good followability to various belts, and is matched with holes and pins.
*The scraper and the fixed seat are combined with a dovetail groove, and there is a top tightening device to eliminate the clearance.
*Aluminum alloy knife holder, surface anodized, not easy to rust.
*It has a detachable fixing seat, which can be extracted from the side of the hopper, which is very easy to install or maintain.
*The use of pre-pressure regulator (buffer spring group) can ensure a uniform and stable contact pressure between the scraper and the belt for a long time, and can be fine-tuned if necessary to ensure the scraping effect.
*The position of the scraper can be adjusted by adjusting the screw of the scraper group, which is more suitable for the scene.

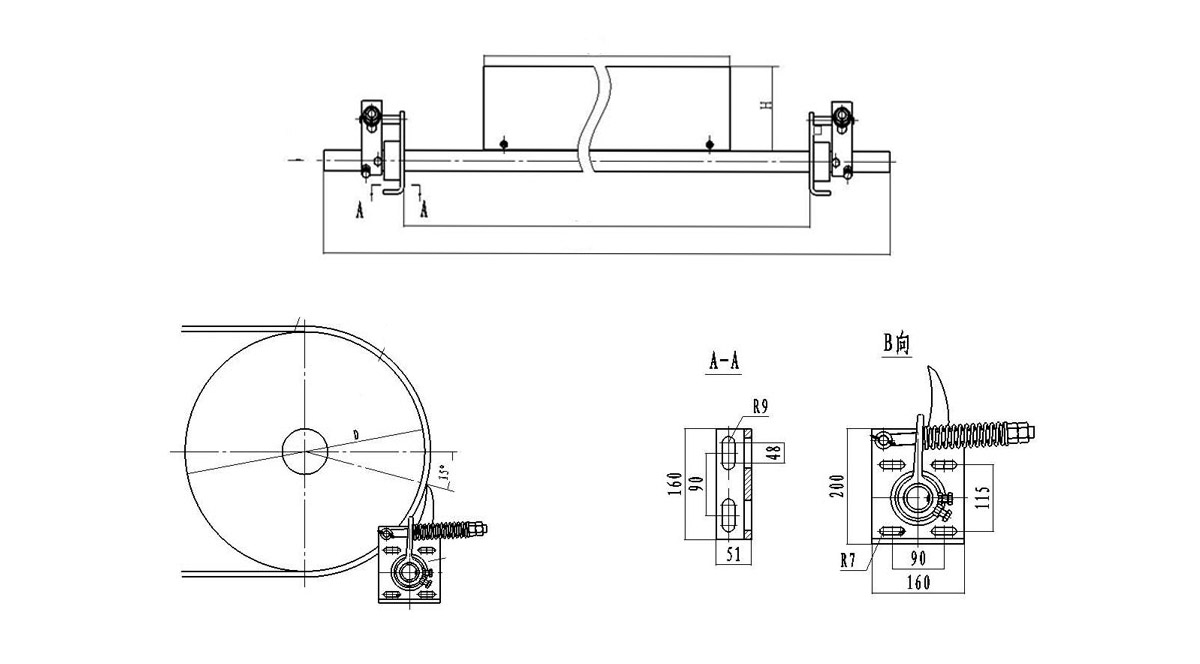

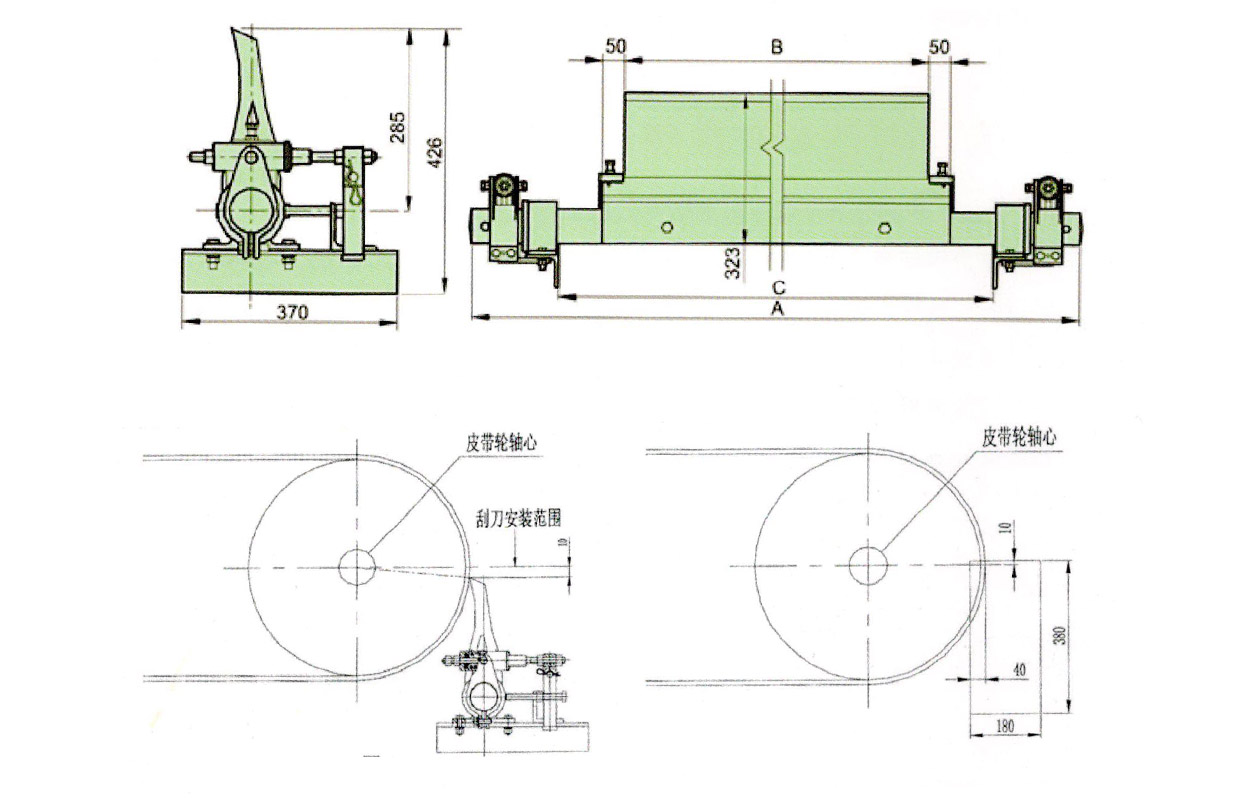

Specifications
|
Belt Width（mm） |
A（mm） |
B（mm） |
C（mm） |
D（pcs） |
Scraper Weight（KG） |
Total Weight（KG） |
||||
|
178mm |
260mm |
301mm |
178mm |
260mm |
301mm |
|||||
|
650 |
600 |
650 |
700 |
1 |
6.5 |
13 |
15.3 |
37 |
55 |
60 |
|
800 |
762 |
800 |
700 |
1 |
8 |
16 |
18.9 |
41 |
61 |
67 |
|
1000 |
914 |
1000 |
700 |
1 |
10 |
20 |
23.6 |
45 |
68 |
73 |
|
1200 |
1067 |
1200 |
700 |
2 |
12 |
28 |
23.6 |
55 |
75 |
80 |
|
1400 |
1321 |
1400 |
700 |
2 |
14 |
32 |
33 |
59 |
86 |
91 |
|
1600 |
1524 |
1600 |
700 |
2 |
16 |
36 |
37.8 |
63 |
93 |
98 |
|
1800 |
1676 |
1800 |
700 |
2 |
18 |
40 |
42.5 |
68 |
101 |
105 |
|
2000 |
1828 |
2000 |
700 |
2 |
20 |
44 |
47.2 |
83 |
107 |
112 |
|
2200 |
1912 |
2200 |
900 |
2 |
22 |
48 |
51.9 |
88 |
113 |
118 |
|
2400 |
1997 |
2400 |
900 |
2 |
24 |
52 |
56.6 |
93 |
120 |
127 |

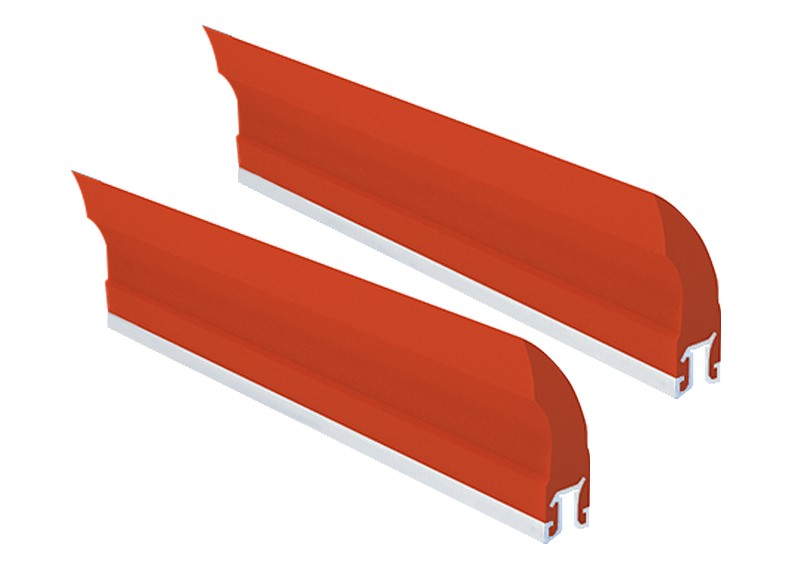

Blade Part:
This part touch conveyor belt bottom surface to clean the material on it.
*Wear abrasive Polyurethane materail
*Color can be customized
*Temperature from -20 to 120°C available
*Blade is detachable
*Used in power plant, mining, port, cement plant
Parameters:
Model Number: ZJCLEAN-PU/R
Belt Width: 650mm-2400mm
Material: PU
Belt Speed: Up to 1600 fpm (8 m/s)
Hardness: 85 Shore A
Temperature: Between -35 degrees F and 185 degrees F
Colour: Customised production
Corrosive Conditions: YES
Underground Applications: YES
Starting quantity: 1 Set
Warranty: 6 months
Supply capacity: 450 Set/ month
Certification:ISO9001;ISO14001;ISO45001;CE;UPEM
Packing: pallet, wooden case
Delivery Time：1～5 Set，1-3days / 10～20 Set，3-5days
FAQ：
1、How long will your rubber sheets last?
Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.
2、How can I get some samples?
We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.
3、Can I visit your factory?
Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
