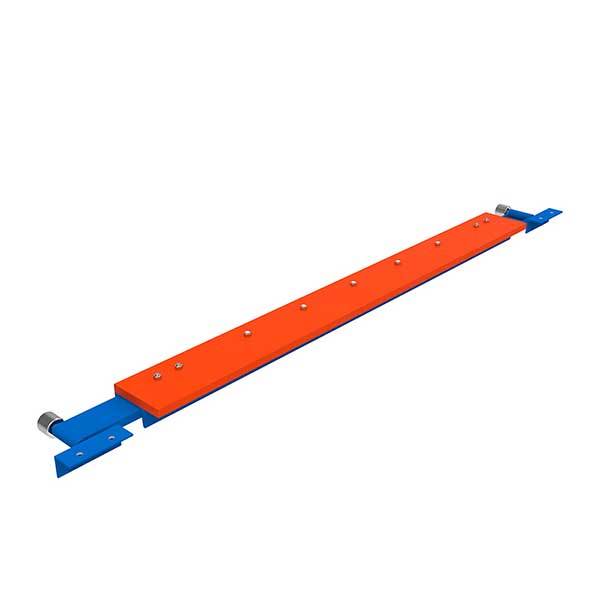

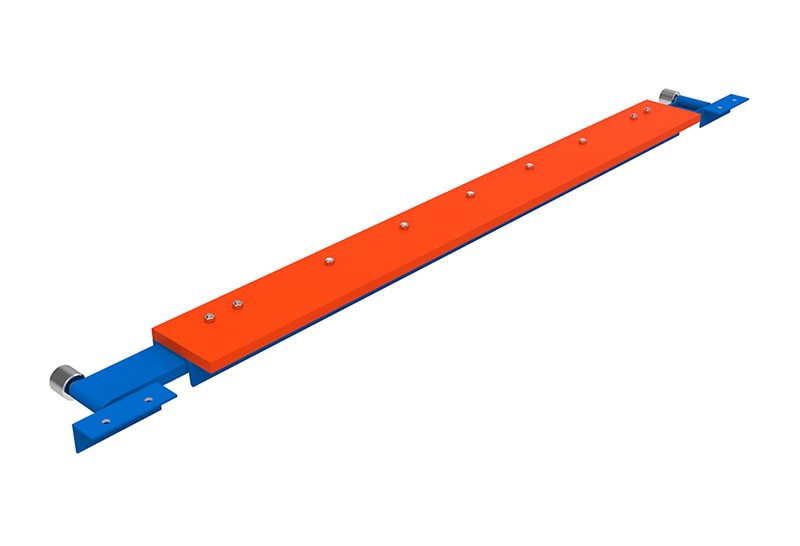

PU I-Plow Belt Cleaner Machine

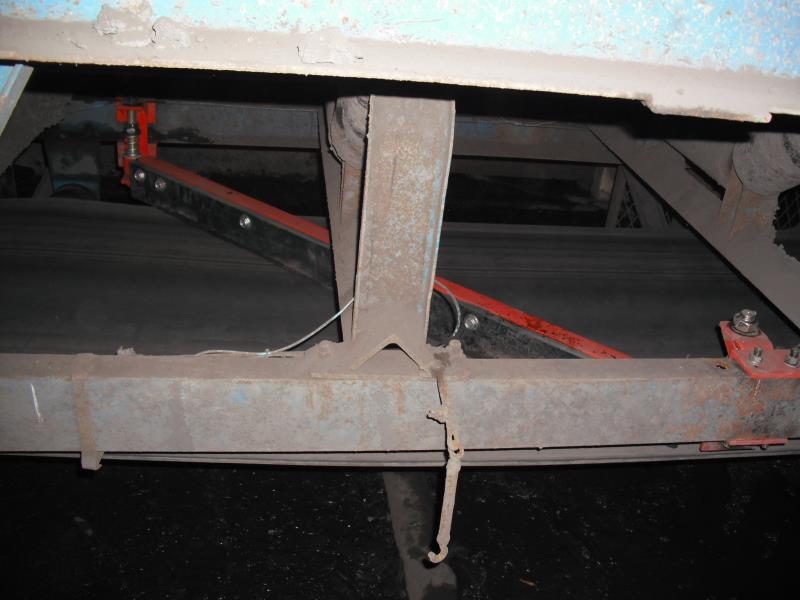

I Shape belt cleaner is located in non-working face of the tail pulley position to clean the little residule materials. Used to cleaning the last residule materials before them rolled in space between drum and belt. Support part is steel and blade is PU material, compare to V plough it is easier and freely to install any where and any direction on belt.

Classification:

Belt Cleaning System

Key words:

Related Downloads

For more information, please contact us directly by phone or email

86-371-66631118

rmconveyor@aliyun.com

Online inquiry

Product Details

Abstracts:

BAI-OTT is a professional manufacturer of conveyor belt cleaner and scraper in China. The cleaners we design and manufacture are Light duty PU primary belt Cleaner, Heavy duty primary PU belt scraper, Constant pressure primary belt sweeper, Alloy primary belt cleaner (H type), Ceramic belt cleaner, Medium-sized primary conveyor sweeper, secondary scraper sweeper, second alloy sweeper,second constant pressure sweeper, universal alloy sweeper, Tail V-plow conveyor sweeper, central I-type conveyor cleaner, electric roller brush cleaner and sweeper blade. As we know,Primary belt cleaner is the most important part in conveyor belt cleaning system. It located closely under the head drum to make the first step of cleaning for the whole system. 90% residule materials can be cleaned by it in transportation. So it is necessary to guarantee the strength of frame and tensioners, the wear abrasive ability of blades, which influence products effect lot.

Description:

Order No.	Product Name	Belt Width(mm)	Blade Width(mm)	Installation Site
ZJCLEAN-I-650	I-Plow Belt Cleaner Machine	650	650	Return Belt Tail Drum
ZJCLEAN-I-800	I-Plow Belt Cleaner Machine	800	800	Return Belt Tail Drum
ZJCLEAN-I-1000	I-Plow Belt Cleaner Machine	1000	1000	Return Belt Tail Drum
ZJCLEAN-I-1200	I-Plow Belt Cleaner Machine	1200	1200	Return Belt Tail Drum
ZJCLEAN-I-1400	I-Plow Belt Cleaner Machine	1400	1400	Return Belt Tail Drum
ZJCLEAN-I-1600	I-Plow Belt Cleaner Machine	1600	1600	Return Belt Tail Drum
ZJCLEAN-I-1800	I-Plow Belt Cleaner Machine	1800	1800	Return Belt Tail Drum
ZJCLEAN-I-2000	I-Plow Belt Cleaner Machine	2000	2000	Return Belt Tail Drum
ZJCLEAN-I-2200	I-Plow Belt Cleaner Machine	2200	2200	Return Belt Tail Drum
ZJCLEAN-I-2400	I-Plow Belt Cleaner Machine	2400	2400	Return Belt Tail Drum

Further Dimensions on Demand.

Difficulty

*High-speed conveyor line

*Supports bidirectional use

*High temperature conveyor line

*Scraper replacement hassle

*Blade wears too fast

*Frequent adjustment of locking is time-consuming and labor-intensive

Advantage

*The cleaning blade is made of high-strength polyurethane, which has high strength, high wear resistance, high elasticity, low friction coefficient, will not cause damage to the conveyor belt, and has a long service life.

*After the blade is worn, the blade compensation can be automatically adjusted according to the self-weight of the cleaner.

*The latest spring tensioning style is optional, which can make the cleaner better fit the conveyor belt, and the cleaning effect is more stable and efficient.

Specifications

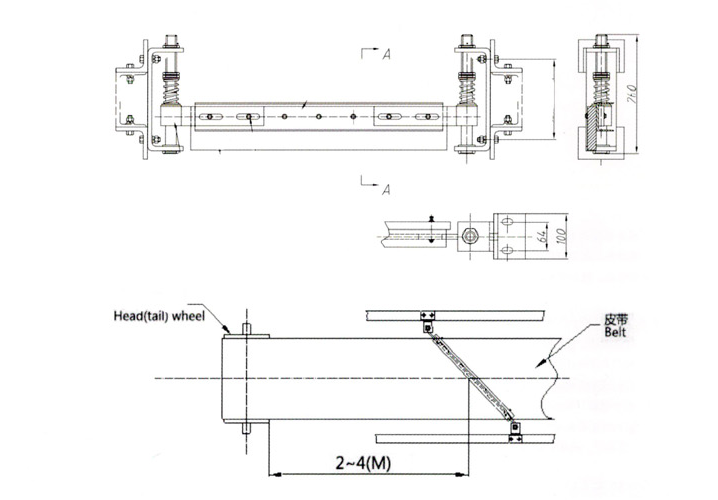

Outline design and installation drawings

Parameters:

Model Number: ZJCLEAN-I

Belt Width: 650mm-2400mm

Material: Polyurethane+Steel

Belt Speed: Up to 1000 fpm (5m/s)

Hardness: 85 Shore A

Temperature: Between -35 degrees F and 185 degrees F

Colour: Customised production

Corrosive Conditions: YES

Underground Applications: YES

Starting quantity: 1 Set

Warranty: 6 months

Supply capacity: 450 Set/ month

Certification:ISO9001;ISO14001;ISO45001;CE;UPEM

Packing: pallet, wooden case

Delivery Time：1～5 Set，1-3days / 10～20 Set，3-5days

FAQ：

1、How long will your rubber sheets last?

Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.

2、How can I get some samples?

We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.

3、Can I visit your factory?

Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
