BAI-OTT is a professional manufacturer of conveyor belt cleaner and scraper in China. The cleaners we design and manufacture are Light duty PU primary belt Cleaner, Heavy duty primary PU belt scraper, Constant pressure primary belt sweeper, Alloy primary belt cleaner (H type), Ceramic belt cleaner, Medium-sized primary conveyor sweeper, secondary scraper sweeper, second alloy sweeper,second constant pressure sweeper, universal alloy sweeper, Tail V-plow conveyor sweeper, central I-type conveyor cleaner, electric roller brush cleaner and sweeper blade.

Description:

The secondary water proof belt cleaner solves the problem of deposits and stickies on conveyor belts.

Flat top and 85 Shore A PU material can softly touch the belt bottom so that can clean the rest tiny material well. The adjustable tensioner part can make it very easy to be modified as the conveyor frame.

Difficulty

*High-speed conveyor line

*Difficult to clean up muddy bulk

*High temperature conveyor line

*Scraper replacement hassle

*Blade wears too fast

*Frequent adjustment of locking is time-consuming and labor-intensive

Advantage

*The unique tensioning device and high-performance spring can make the blade stick closely to the leather when the belt is constantly shaking.

*It can maintain a stable tension, reduce the fatigue damage to the blade base caused by jitter, and improve the service life of the blade.

*There is no need to disassemble the cleaner, just adjust the screw on the tensioner to adjust the tension of the knife edge. The cleaning effect is obvious, durable, and well-received by users.

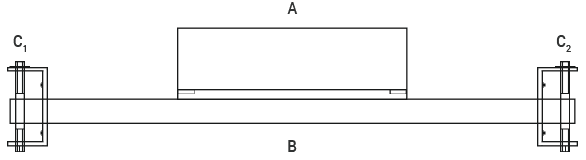

Specifications

Orange Type:

Blue Type:

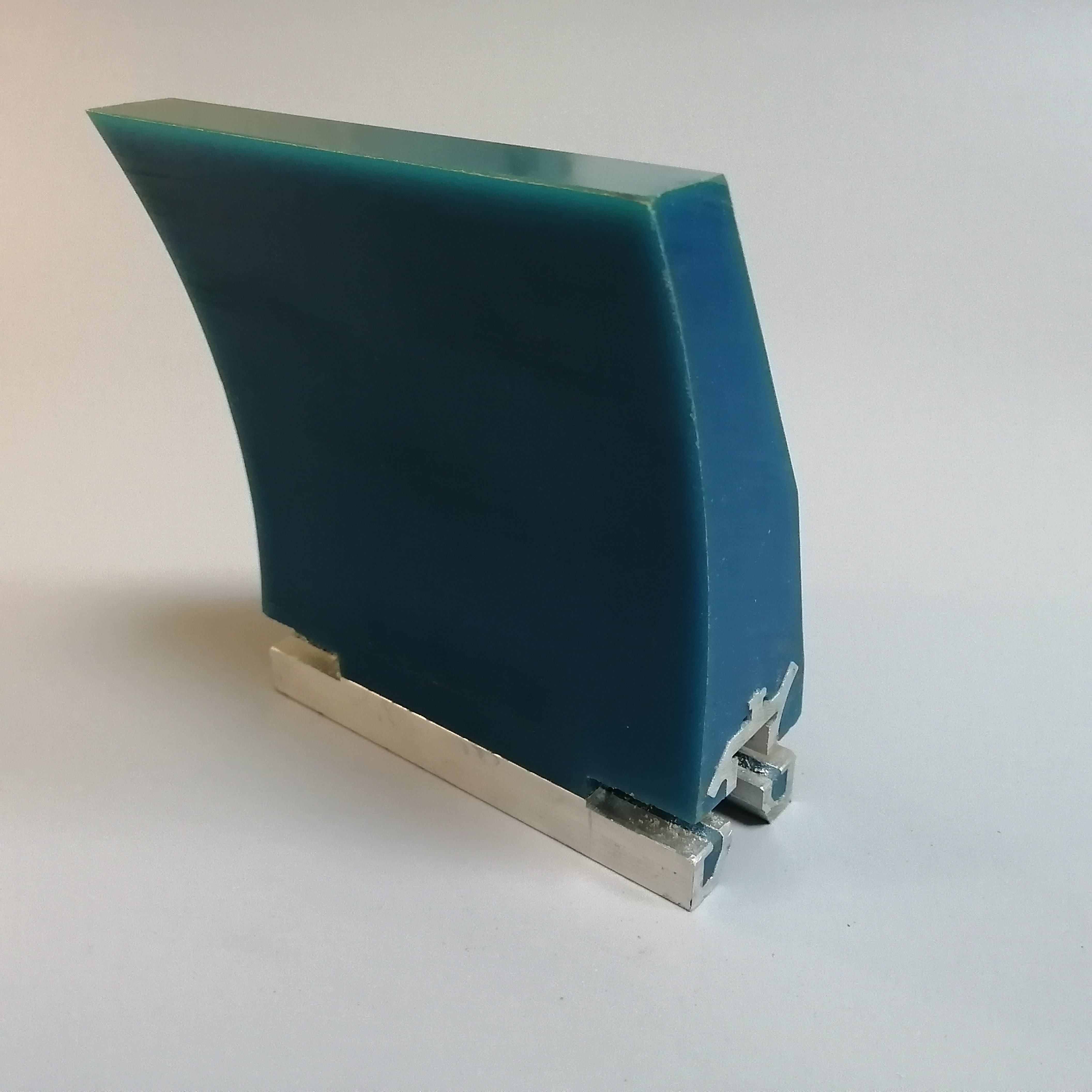

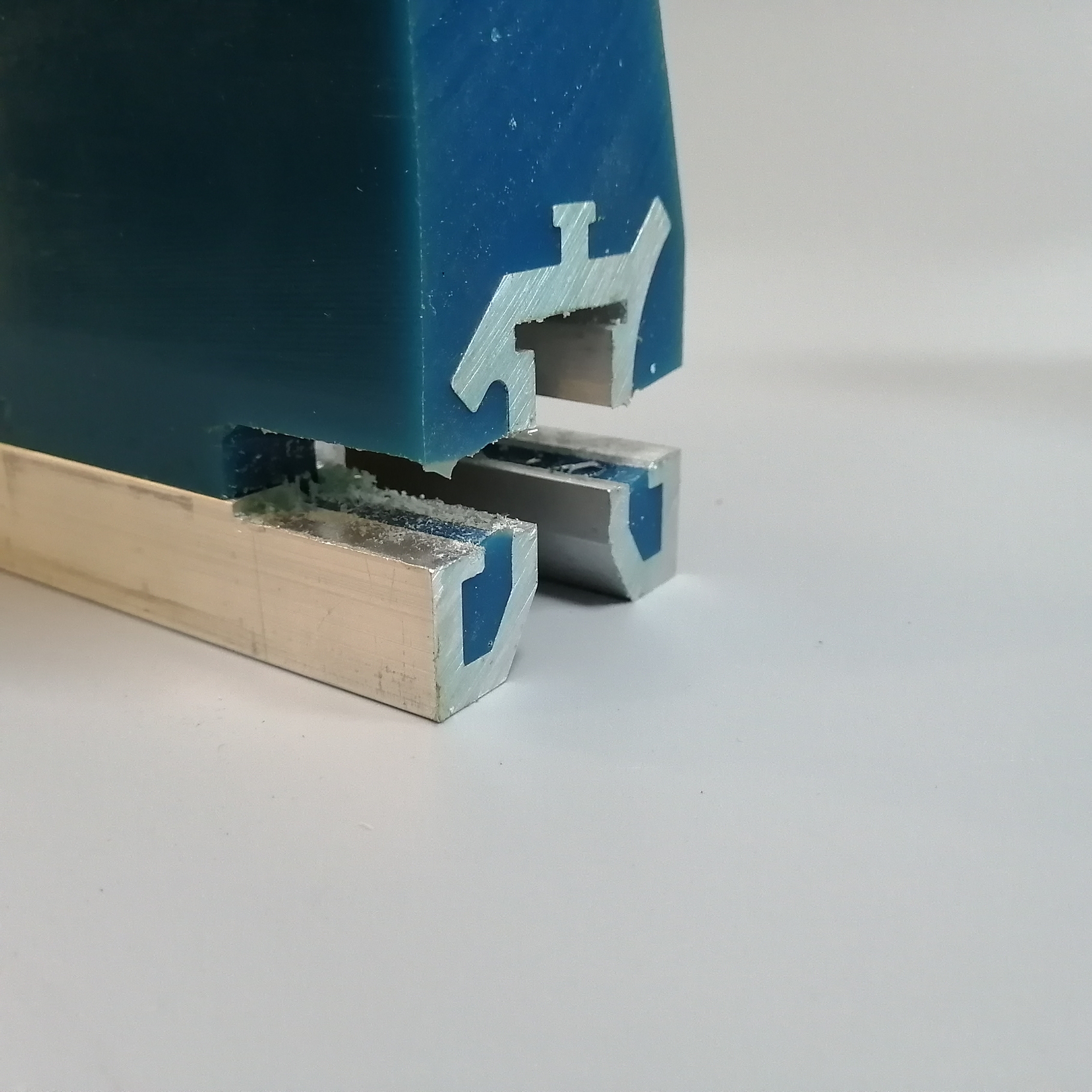

Blade Part:

This part touch conveyor belt bottom surface to clean the material on it.

*Wear abrasive Polyurethane materail

*Color can be customized

*Temperature from -20 to 120°C available

*Blade is detachable

*Used in power plant, mining, port, cement plant

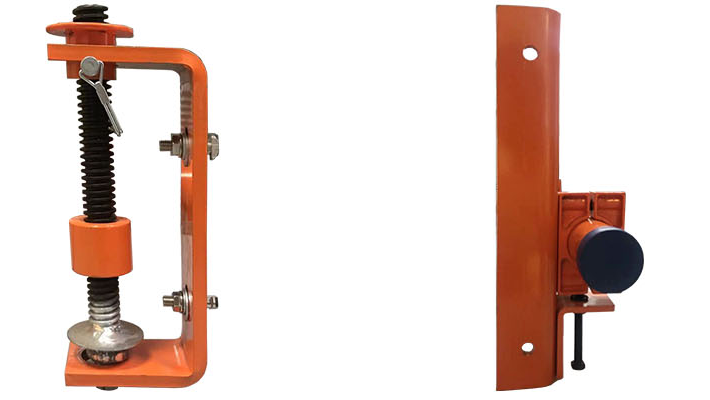

Tensioner Part:

Different tensioner types to meet various conveyor type and cleaning requirements.

The first tensioner is (L)*23(W)*25(H)cm which is small and porable to stall in many narrow and short distance between belt and conveyor frame.

2 bolts to install it on conveyor and 3 bolts fix it on cleaner tube.Esay operation 4kg for each.

The second tensioner is 18(L)*7(W)*45(H)cm which is taller to matched the higher distance between conveyor frame and bottom belt.

Larger adjustable range is convenient to operate.2 bolts to install it on conveyor and 3 bolts fix it on cleaner tube.

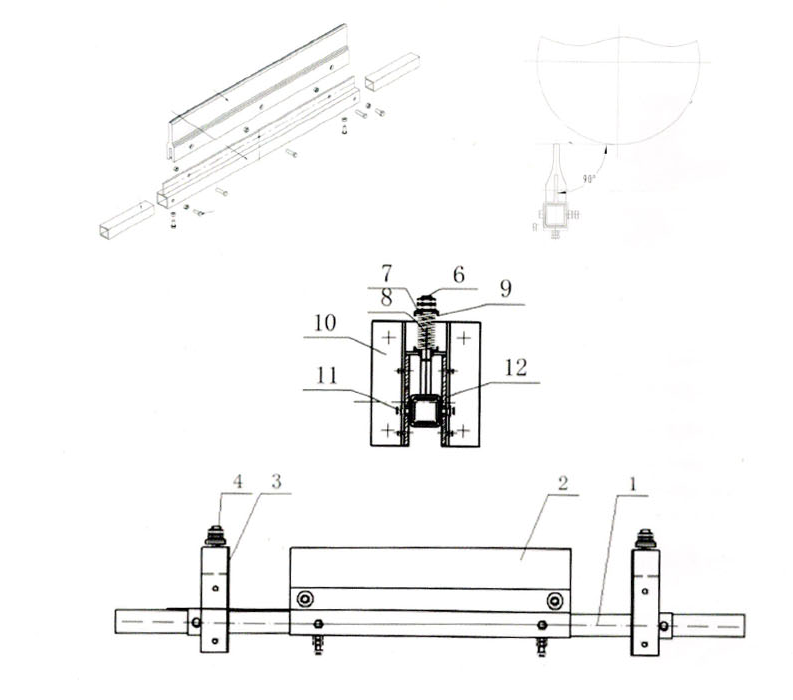

Installation Drawing

Parameters:

Model Number: ZJCLEAN-CH

Belt Width: 650mm-2400mm

Material: PU

Belt Speed: Up to 1000 fpm (5 m/s)

Hardness: 85 Shore A

Temperature: Between -35 degrees F and 150 degrees F

Colour: Customised production

Corrosive Conditions: YES

Underground Applications: YES

Starting quantity: 1 Set

Warranty: 6 months

Supply capacity: 450 Set/ month

Certification:ISO9001;ISO14001;ISO45001;CE;UPEM

Packing: pallet, wooden case

Delivery Time：1～5 Set，1-3days / 10～20 Set，3-5days

FAQ：

1、How long will your rubber sheets last?

Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.

2、How can I get some samples?

We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.

3、Can I visit your factory?

Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
