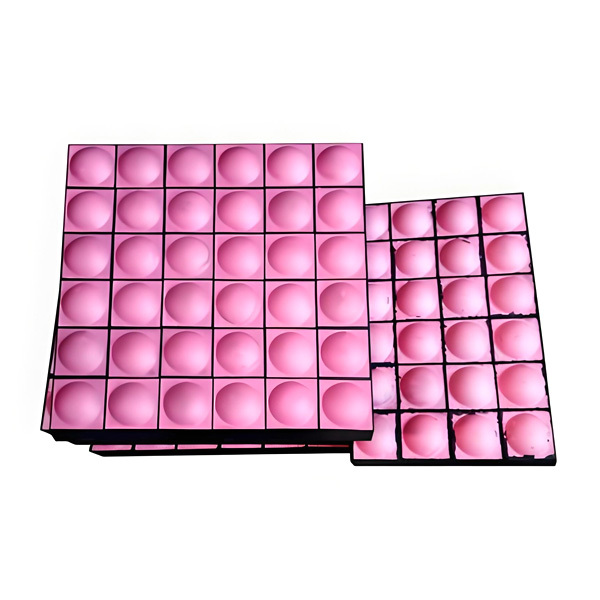

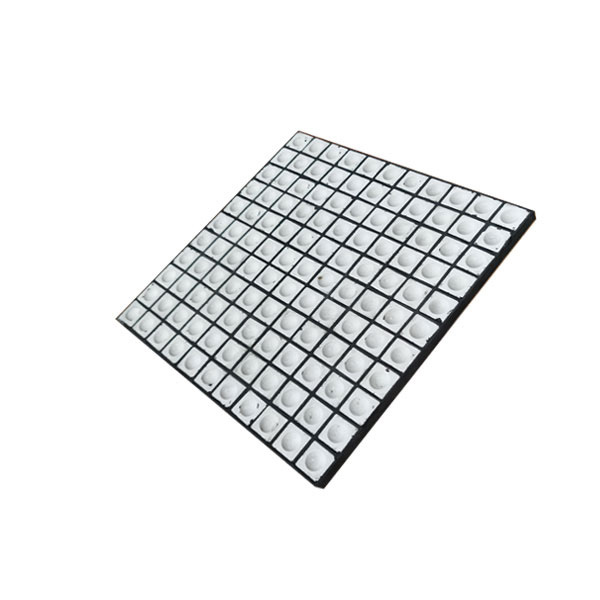

Spherical Ceramic Liner ZJCER-C25

ZJCER-C25 ceramic liner, specifically designed for high wear and high impact working conditions. It has strong wear resistance, especially in the wear environment of high-speed operating materials. The rubber module absorbs impact energy, and the ceramic blocks (Al2O3) vulcanized on the rubber provide wear protection for the surface. The bottom steel plate is equipped with high-strength bolts, making installation simple and quick.

Classification:

Ceramic liner

Key words:

Spherical Ceramic Liner ZJCER-C25

Related Downloads

For more information, please contact us directly by phone or email

86-371-66631118

rmconveyor@aliyun.com

Online inquiry

Product Details

Brand: Tianlihe

　　ZJCER-C25 ceramic liner, specially designed for high wear and high impact working conditions. It has strong wear resistance, especially in the wear environment of high-speed operating materials. The rubber module absorbs impact energy, and the ceramic blocks (Al2O3) vulcanized on the rubber provide wear protection for the surface. The bottom steel plate is equipped with high-strength bolts, making installation simple and quick.

Ceramic liner product structure:

　　● 10+5mm ceramic (Al2O3) - wear-resistant;

　　● 5mm elastic rubber layer - absorbs impact loads;

　　● 5mm steel plate - easy to install;

Ceramic liner features:

　　1. The three-in-one wear-resistant ceramic liner adopts modular production and assembly, allowing for replacement in high wear areas;

　　2. Provides double-headed bolt fixation and weldable installation methods;

　　3. Special rubber vulcanization process ensures that the ceramic blocks embedded in the rubber layer are firmly bonded and also serves as a cushioning layer to prevent ceramic block breakage;

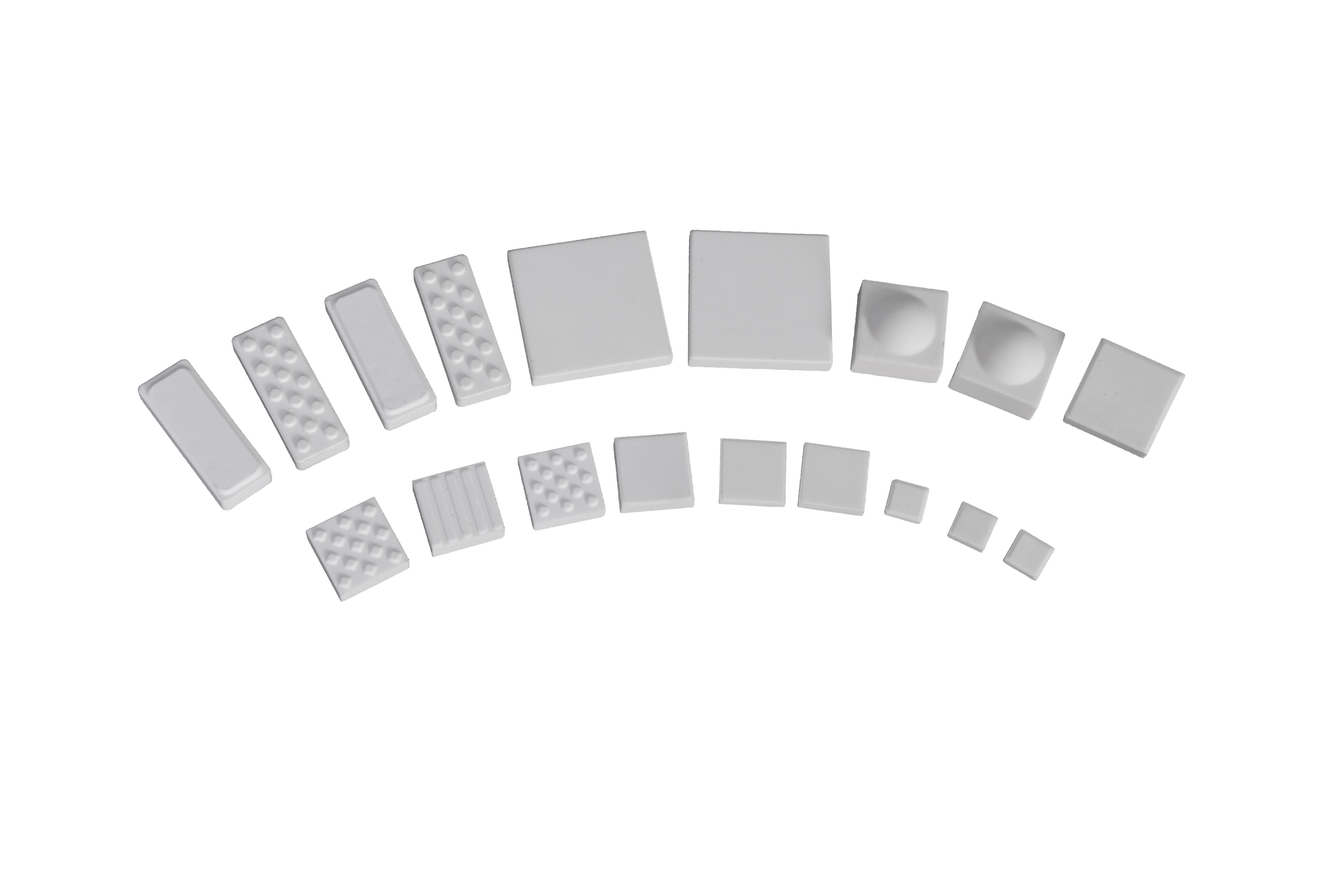

　　4. The shape, size, and thickness of the ceramic blocks or liners can be customized according to your specific working conditions or applications.

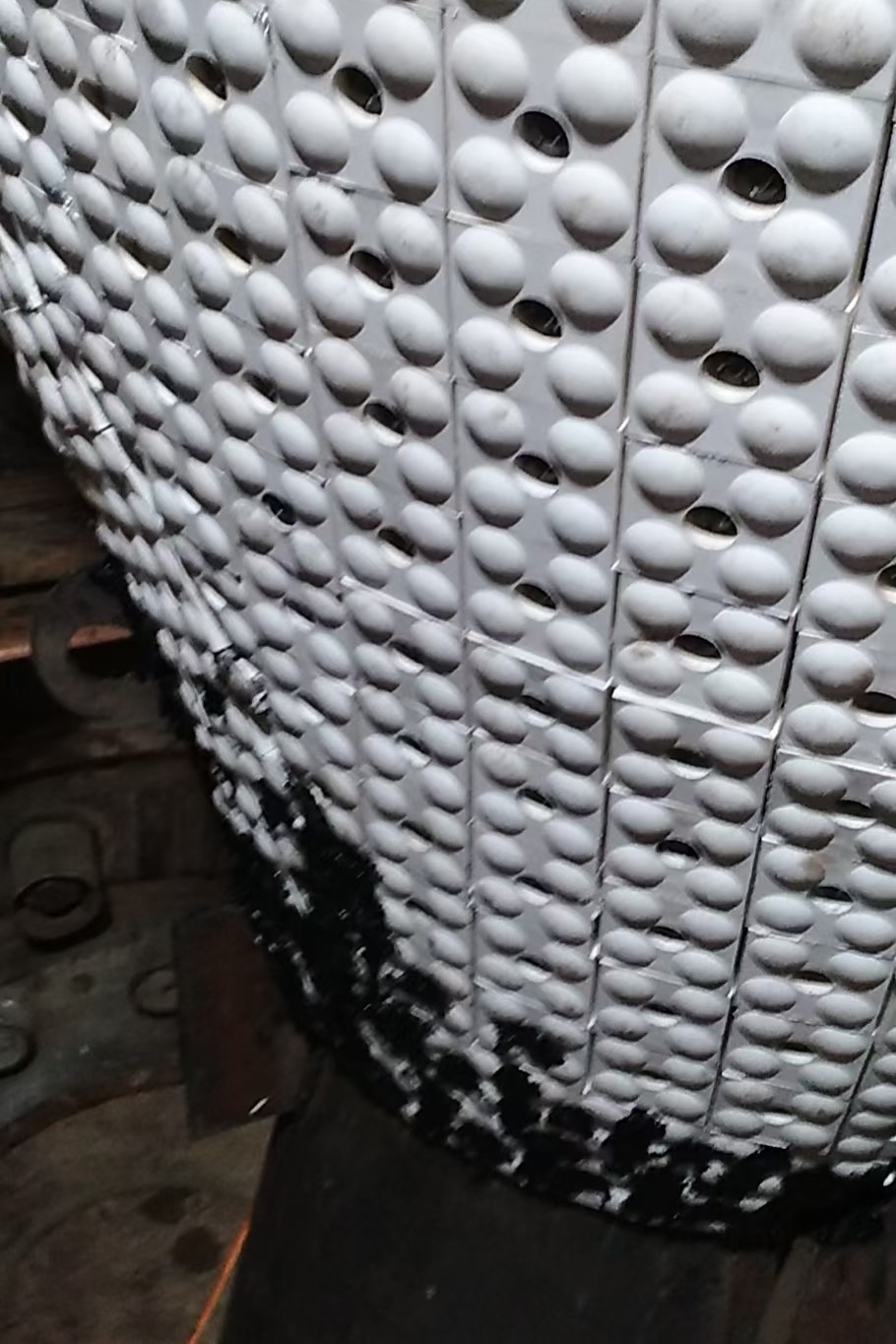

Typical applications of ceramic liners:

　　Used as wear-resistant linings in equipment for conveying large materials at room temperature, where wear is severe and impact forces are strong.

　　● Vibrating feeders, transfer chutes;

　　● Pipes, silos, bins, storage;

　　● Large buckets, discharge hoppers, transfer stations, cyclones, chutes.
