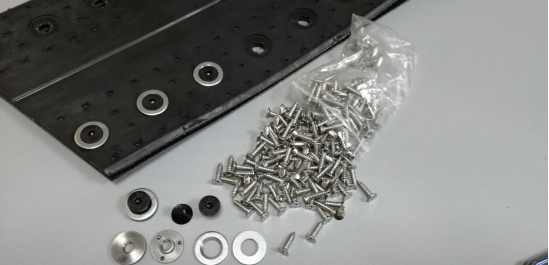

Screw threads on both sides. All nuts are buried in the rubber joint. The middle reinforcing layer is fabric. There are 3 middle reinforcing layers in the joint, 3 layers at the top and 3 layers at the bottom, which can make the joint part strong enough, just like a conveyor belt.

Classification:

Product Alias:


Related Downloads

For more information, please contact us directly by phone or email

Online inquiry

Product Details


Abstracts:

M5 series is a high strength connecting kit for high strength conveyor belts, applying many patented technologies, using high quality rubber canvas construction, nuts and spacers are placed in advance, metal fasteners and splicing kits are tightly combined into a single unit, and screws are fixed in the wrong position, which is higher strength and more stable, and it can be applied to conveyor belts with a maximum strength of 2200N/mm.

Description:

Integral Conveyor Belt Sewing Mechanical Joint ZJ-M4 Seamless Mechanical Joint is an easy-to-install conveyor belt jointing system that can quickly join and repair fabric and whole core conveyor belts in a short period of time even in difficult construction environments, without the need for other installation tools, simplifying the use of tools and procedures, and is a good choice.

Appearance

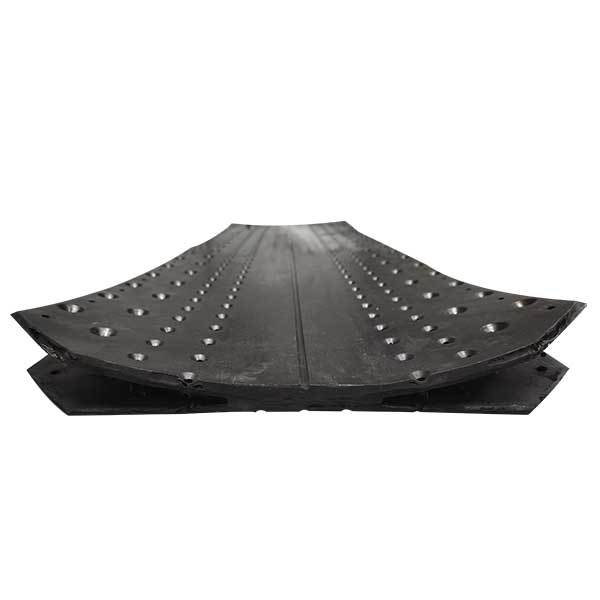

Screw threads on both sides. All nuts are buried in the rubber joint. The middle reinforcing layer is fabric. There are 3 middle reinforcing layers in the joint, 3 layers at the top and 3 layers at the bottom, which can make the joint part strong enough, just like a conveyor belt.

Integral connection(connection structure)

The upper and lower levels are joined together to present an H structure

There is no need to locate and start installing directly, which makes the operation easier and faster as well as more accurate.

There is a connector in the middle with better curvature for a better fit over the pulleys, better belt tension and less slippage.

Advantages:

Fast repair or splicing of your belts (1 or 2 persons)

Low investment with self-installed screws

Optimise your productivity

Matching complete sets of screws, PZ bits, wire strippers and electric screwdrivers

Suitable for conveyor belts with small pulley diameters

Compatible with conveyor scrapers

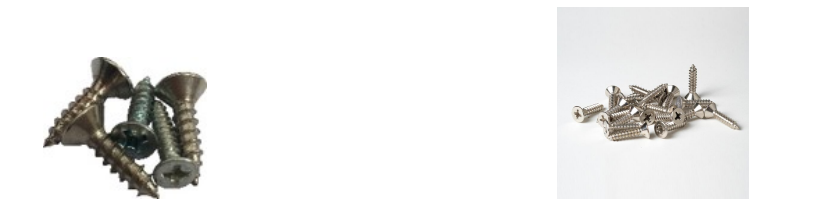

Types of steel for bolted inserts

Bolt Screw Inserts

Highly resistive and is the choice for most applications such as coal mines, cement plants, quarries, power plants, etc.

Stainless steel screws and washers are 316 non-magnetic and are used for corrosion and acid resistance, applications: gold mines, fertiliser plants, recycling facilities and sorting centres etc.

Specifications

Order No.

ZJ-M5S

ZJ-M5W

Width

350 mm

350mm

Thickness

17/19/21mm

19/21/23mm

Applicable belt thickness

15-20 mm

17-25mm

Applicable Belt Interlayer Thickness

4-7 mm

7-10mm

Belt tension

1200-2200N/mm

1200-2200N/mm

Minimum pulley diameter

≥500 mm

≥500 mm

Splicing kit weight /m

6.45 kg

6.79kg

Customisable Type

Heat-resistant, oil-resistant, acid-alkali resistant, flame-retardant, anti-static

Temperature

-30--180°C

Strength

≥15 Mpa

Matched screws

M8-19
M5-20

M8-23
M5-24

Packaging:

>Width 72-150mm: can be packaged in 10m or 25m

>Width 180-350mm: can be packaged in 10m or 25m

>In kit, pre-assembled and cut to lenght, for belt widhts of 650, 800, 1000, 1200, 1400mm.

Includes:

>Installation tools

>Customization*

*Customised logo for partners

Simple tools to help you



Installation Template Kit (included)

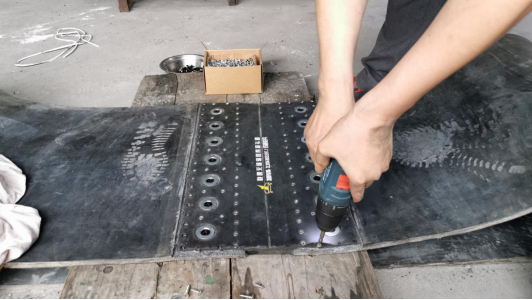

>Quick Seamless Conveyor Belt Splicing Kit Installation Guide

>Screw Drill Tools

Rubber cutting kit (optional)

>Electric Rubber Scooper

>Polishing machine

Certified installer training (optional)

>Training programme guided by BAI-OTT professional staff

>Theory + Practice

Parameters:

Model Number: ZJ-M5

Colour: Black

Feature: Quick installation, Wear-resistant and more stable

Strength: 1200-2200N/mm

Material: Rubber+Screws

Quality: Top-quality

Usage: Seamless splicing of conveyor belts

Type: patch

MOQ: 10 metres

Shelf life: 6 Months

Supply capacity: 4000 metres/month

Certification:ISO9001;ISO14001;ISO45001;CE;UPEM

Packing: pallet, wooden case

Delivery Time:10~100 metres,1-3days / 200~500 metres,3-5days
