Abstracts:

Seamless mechanical lacing joint is an easily installation conveyor belt joint system, which can quickly joint and repair fabric and whole-core conveyor belts in a short time. It is a good choice to simplify the use of tools and procedures because needn’t other installation tools even in the difficult construction environment.

Description:

M7 series is pre-buried with assembly screws, which is applicable to a wide range of applications, and can be spliced diagonally or planarly. The upper and lower pieces are positioned into one piece through the centre positioning holes, and the bottom piece is designed with a height-adjustable centre limiting strip, which not only matches the thickness of various conveyor belts' inner cores, but also strengthens the lateral strength of the joints, making the installation more flexible and the operation more convenient.

Appearance：

Lines of screws on each side,one line middle of the joint.All nuts bury in the rubber joint. Top 6mm and bottom 5mm cover are split,can be both used for belt joint and belt demage repair.

There are top 3 and bottom 2 ply of Middle reinforcement layer in the joint, which can make the joint part strong enough like the conveyor belt.

Integral connection(connection structure)

The top and bottom pieces are separate and are fixedly connected through the middle locating bolt hole.

Positioning first, then mounting for more flexible operation and can be used for patching.

The upper and lower pieces are separated and can be inserted at any broken part of the belt to repair belt tears.

Advantages：

Fast repair or splicing of your belts (1 or 2 persons)

Low investment with self-installed screws

Optimise your productivity

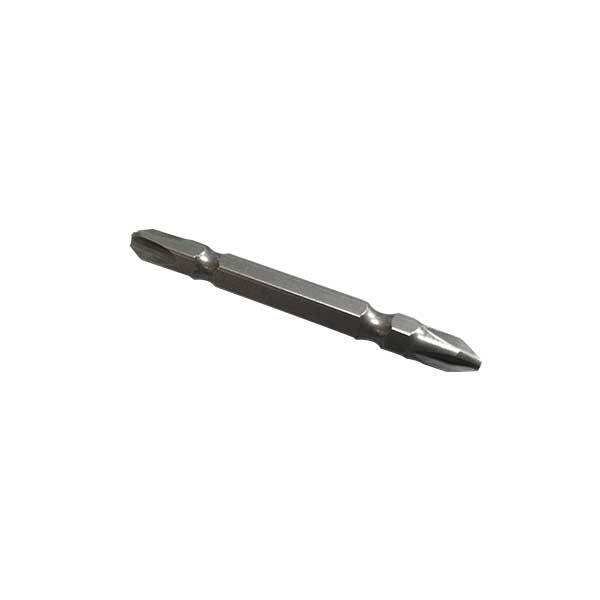

Matching complete sets of screws, PZ bits, wire strippers and electric screwdrivers

Suitable for conveyor belts with small pulley diameters

Compatible with conveyor scrapers

Types of steel for bolted inserts

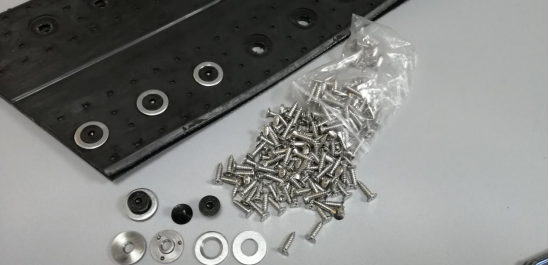

Bolt Screw Inserts

Highly resistive and is the choice for most applications such as coal mines, cement plants, quarries, power plants, etc.

Stainless steel screws and washers are 316 non-magnetic and are used for corrosion and acid resistance, applications: gold mines, fertiliser plants, recycling facilities and sorting centres etc.

Specifications

Packaging：

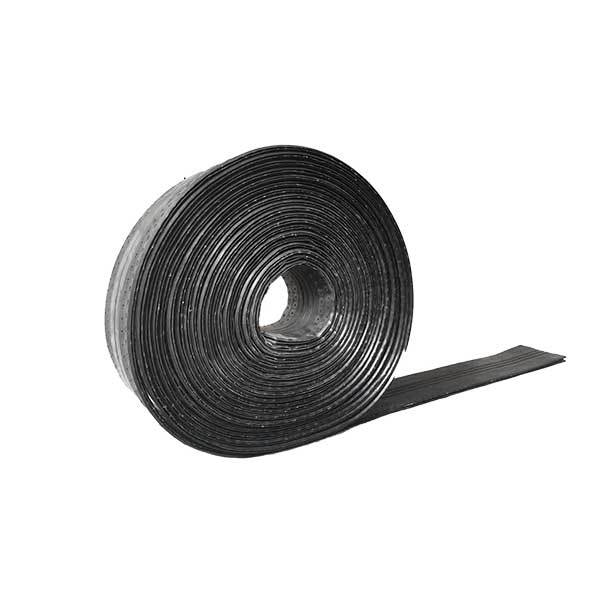

>Width 72-150mm: can be packaged in 10m or 25m

>Width 180-350mm: can be packaged in 10m or 25m

>In kit, pre-assembled and cut to lenght, for belt widhts of 650, 800, 1000, 1200, 1400mm.

Includes:

>Installation tools

>Customization*

*Customised logo for partners

Simple tools to help you

Installation Template Kit (included)

>Quick Seamless Conveyor Belt Splicing Kit Installation Guide

>Screw Drill Tools

Rubber cutting kit (optional)

>Electric Rubber Scooper

>Polishing machine

Certified installer training (optional)

>Training programme guided by BAI-OTT professional staff

>Theory + Practice

Parameters:

Model Number: ZJ-M7

Colour: Black

Feature: Quick installation, Wear-resistant and more stable

Strength: 800-2000N/mm

Material: Rubber+Screws

Quality: Top-quality

Usage: Seamless splicing of conveyor belts

Type: patch

MOQ: 10 metres

Shelf life: 6 Months

Supply capacity: 4000 metres/month

Certification:ISO9001;ISO14001;ISO45001;CE;UPEM

Packing: pallet, wooden case

Delivery Time：10～100 metres，1-3days / 200～500 metres，3-5days

FAQ：

1、How long will your rubber sheets last?

Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.

2、How can I get some samples?

We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.

3、Can I visit your factory?

Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
