Which is very necessary in conveyor equipment because it can save human labour to clean the site and keep people safe and improve the working efficient. Especial the power and small lump factory, the skirting rubber can really provide a better working environment for you.

PRODUCT PARAMETERS

We produce many types of conveyor skirt board for your options

——Double lips convyor belt skirting

——Flat rubber skirt board

——T/I Type Skirting board

——Y Type Skirting board

——Polyurethane skirt board with beveled edge

Dual seal skirt board

Double layer structure, inside layer keeps materials, outside layer prevent dust-leakage. The parts where contact the belt is made of polyurethane, which have longer lifetime and do not damage the belt. Clamp units are easy to install, adjust and maintain.

Flat/Beveled rubber skirt board

Flat rubber skirt board will last longer than conventional skirt board rubber. 50+/-5 provides good sealing against conveyor belt to keep material.

Flat rubber skirt board size

Length: 10～30 meters per oll

Width: 150～350mm

Thickness: 10～30mm

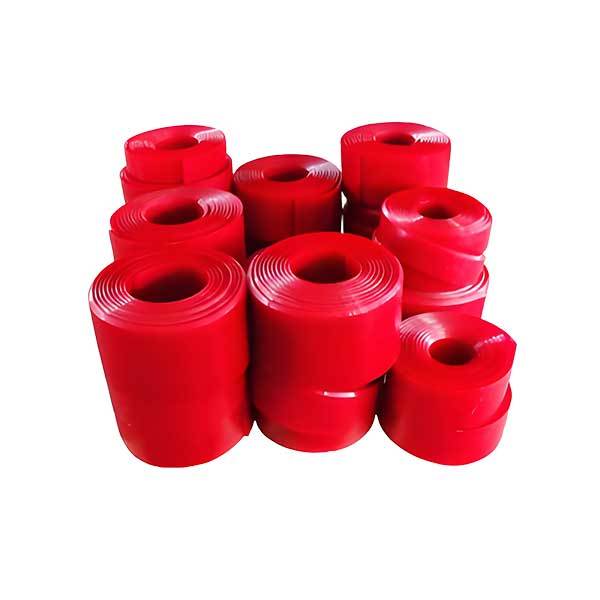

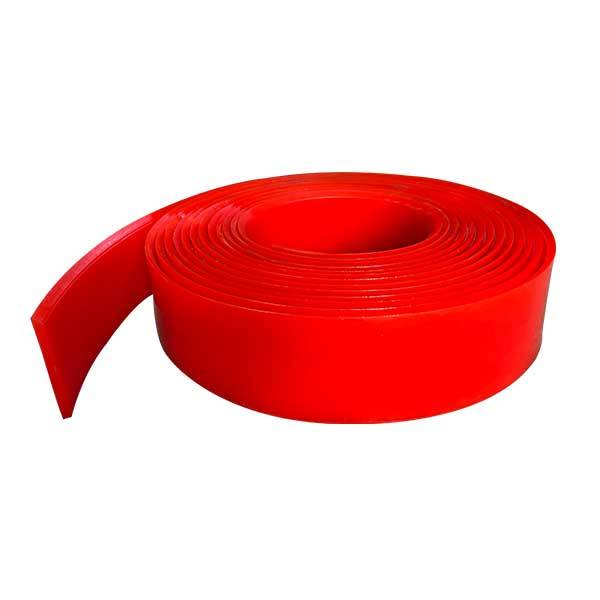

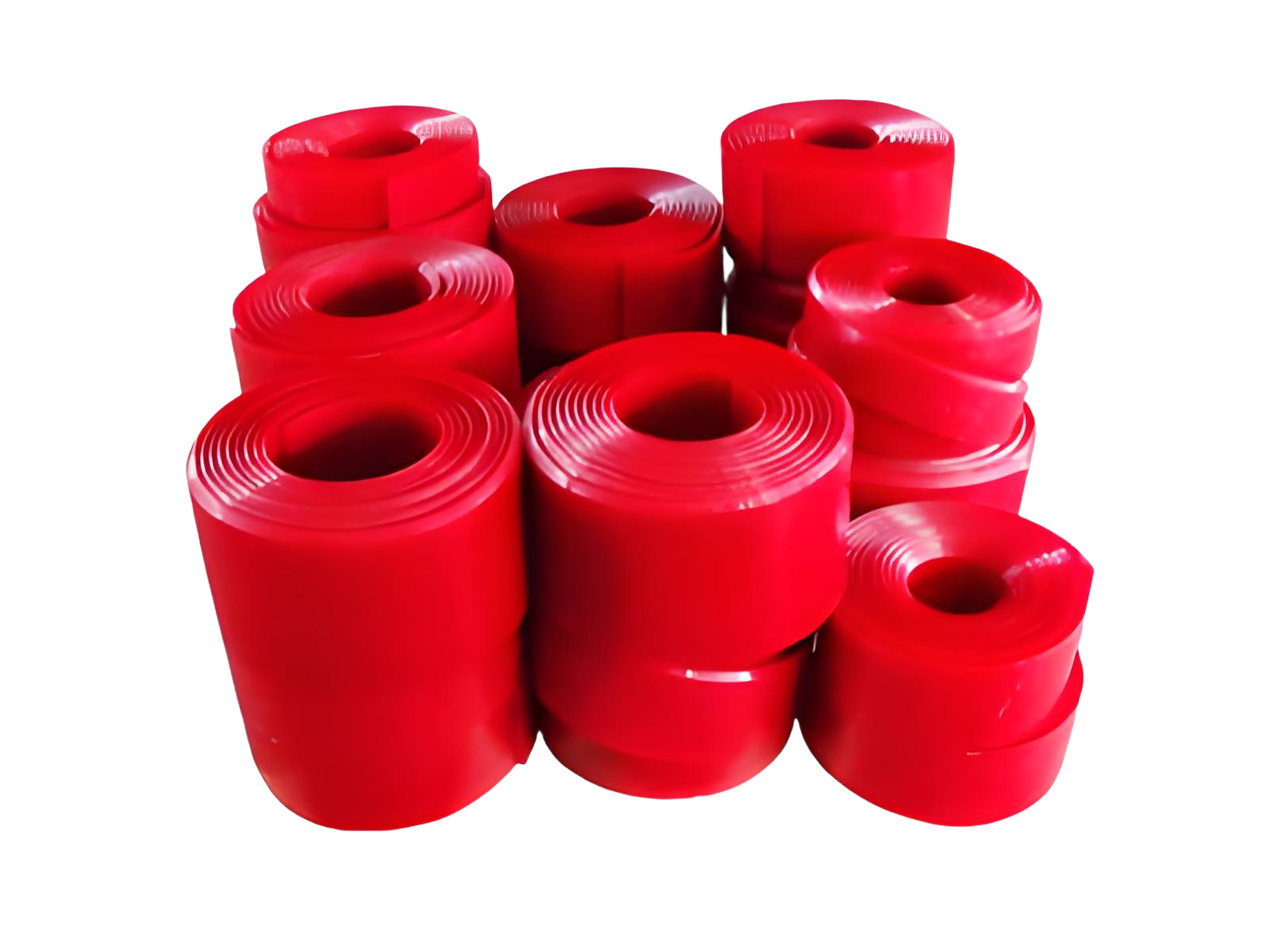

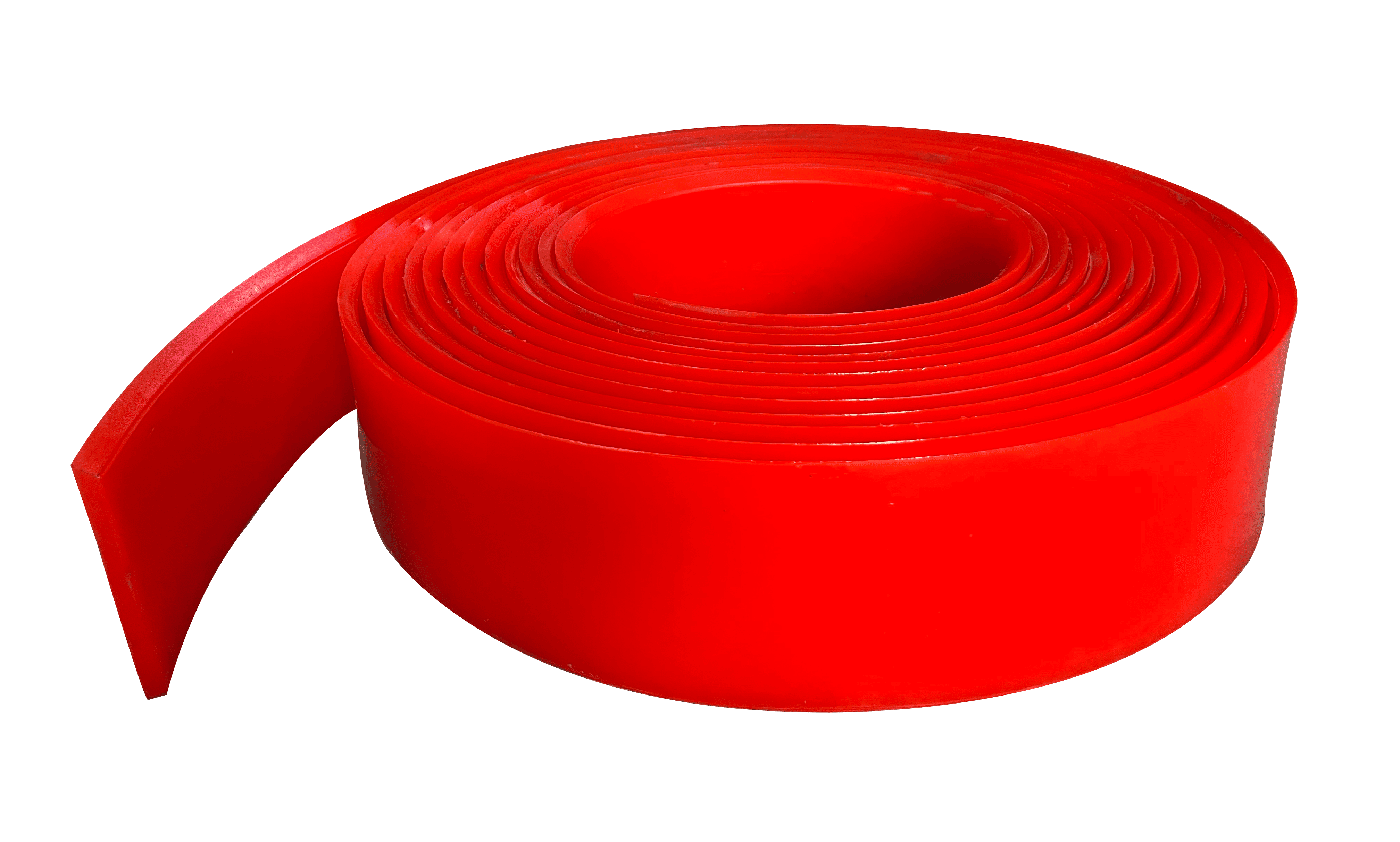

Poly urethane Conveyor Skirt Board is made of an extremely tough 70 Durometer Polyurethane that last an average of 3-5 times longer than rubber skirting equivalents.

Beveled edge that matches the troughing angle of your belt, eliminating the"break-in"adjustment and providing an even greater advantage.

Y shape skirting rubber

Y shape skirting rubber, which can double prevent the dust and materials overflow the belt in belt blanking part. It is made by both PU and NR, PU can better protect the belt surface because it is very smooth and also with good corrosion resistant function, NR with good flexible can provide a better long service life. It is very suitable for some rock, lump, mining and metal factories.

T/I shape skirting rubber

T/I shape skirting rubber adopts a straight PU plate combine a straight rubber plate to be closely attached to the side of the guide chute, and the bottom is in contact with the belt to prevent

material overflow. It is suitable for grain, cement, mineral factory.

  Skirt Board Rubber Parameter

           PU Part

                           Polyurethane                                              Red

                           Material                                                                                    Poly Liner Color

                          75—85 Shore A                                          1.3

                          Hardness                                                                                  Specific Gravity

                         350—450%(at break)                                  2.5—6Mpa

                         Rubber Elongation                                                                    Tensile strength

            Rubber Part

                       Black                                                            300%

                        Rubber Color                                                                             Elongation at break

                        SBR Rubber                                                 1.3

                       Base Polymer                                                                              Specific Gravity

                       55—65 Shore A

                       Hardness

Conveyor Skirt Board Features

*Double layer structure, inside layer keeps materials, outside layer prevents dust-leakage.

*The parts where contact the belt is made of polyurethane, which have longer lifetime and do not damage the belt.

*The ultra-high molecular weight polyethylene components have a low friction coefficient, ensuring smooth passage of the conveyor belt without damaging the belt.

*Clamp units are easy to install, adjust and maintain.

Noted:Special size we can customized

Technical parameters:

1. Thickness of main board: 10/15/20/25mm.

2. Width: 100mm-350mm

3. Length: equal to the length of the guide chute according to the actual needs of the site.

Quality Certifications

Parameters

FAQ

1、How long will your rubber sheets last?

Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.

2、How can I get some samples?

We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.

3、Can I visit your factory?

Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
