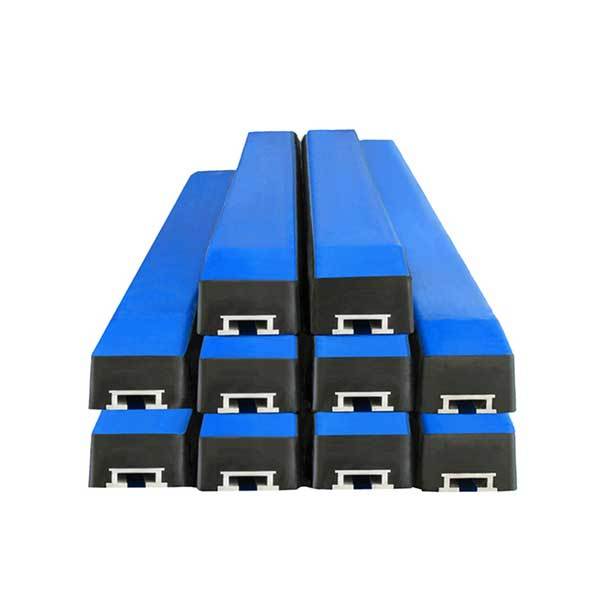

High Elastic UHMWPE Conveyor Impact Bar
Classification:
Product Alias:
Related Downloads
For more information, please contact us directly by phone or email
Product Details
Impact bed is used in the loading area of conveyor belt to replace the traditional cushion rollers. It is designed to absord impact which will dramatically decrease impact from the falling materials to reduce the damage to the structure.

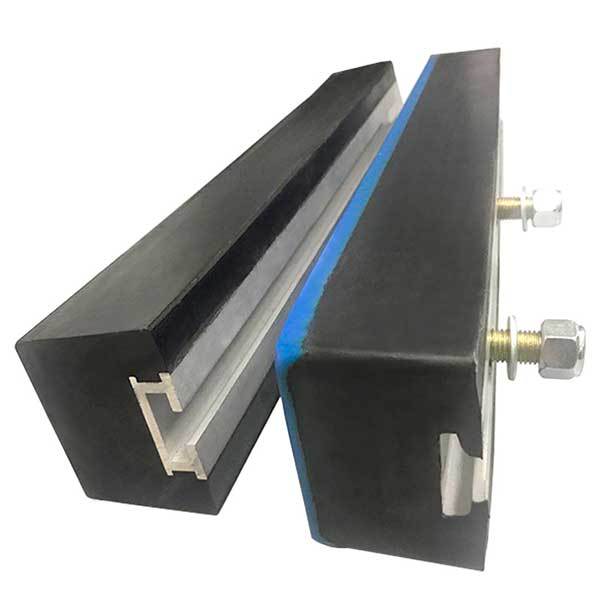

The main use of compact bed / bar is to give a buffer to the products from the conveyor belt to avoid a damage of the goods.In addition,impact bed is installed under the conveyor belt loading points, thus, impact bars consist of three different parts, wear resistant and low friction UHMW-PE sheet,high-elasticity rubber, aluminium T-bolt fastening system. Apart from this combination, all -PU type also popular under easy wear working situation.Bai-Ott producing impact bed/bar in different color,which means that the customer can decide any color they want! lmpact bed/bar of our company has a good quality and we could meet all kinds of needs of our clients!
Detailed Parameter
|
Item |
Parameter |
Standard Type |
High Elastic Type |
Downhole Type |
|
|
UHMWPE Part |
Color |
Blue |
Blue |
Blue |
|
|
Tensile Breaking strength |
Mpa |
23 |
23 |
20 |
|
|
Elongation at break |
% |
300 |
300 |
250 |
|
|
Hardness |
Shore A |
60-70 |
60-70 |
65-75 |
|
|
Abrasion |
cm³ |
0.053 |
0.053 |
0.08 |
|
|
Density |
g/cm³ |
0.93-0.94 |
0.93-0.94 |
1.13 |
|
|
High Elastic Rubber Part |
Hardness |
Shore A |
60-65 |
45-50 |
60-65 |
|
Strength of Extension |
Mpa |
19 |
19 |
19 |
|
|
Elongation an break |
% |
400 |
400 |
400 |
|
|
Metal Part |
Type |
Aluminium Alloy |
|||
|
Bond Strength |
Bonding of PE&rubber |
N/mm |
≥10 |
≥10 |
≥10 |
|
Bonding of metal&rubber |
N/mm |
≥10 |
≥10 |
≥10 |
|
| Recommended number of impact bars | |||||||||||
| Belt Width(mm) | 550 | 650 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 |
| Number of bars | 4 | 6 | 7 | 10 | 10 | 13 | 15 | 16 | 18 | 19 |
21 |
Further Dimensions on Demand
Quality Certifications

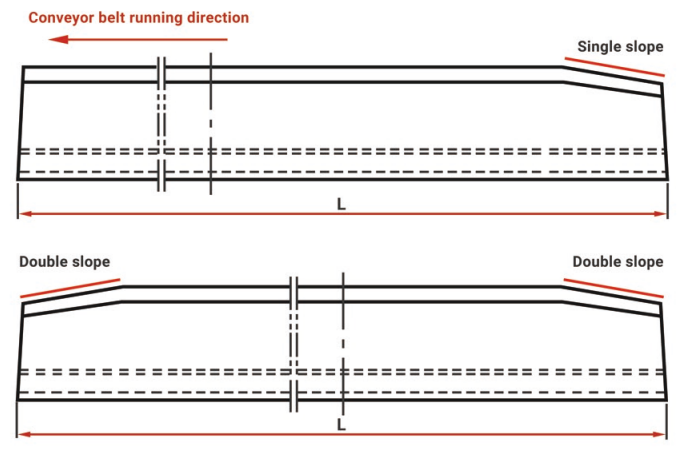

Shape of impact bar
Note: The single slope is directional and runs in the opposite direction to the conveyor belt, while a double slope is not directional.

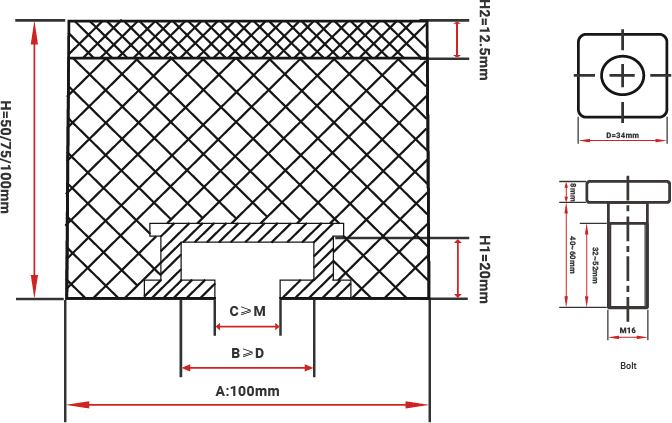

Specifications
*PE mainly height in 12.5mm, high wear resistance, low friction coefficient and high impact toughness.
*The highly elastic rubber buffer layer absorbs the impact energy of falling materials on the conveyor belt.
*The high-strength metal frame can withstand large load impact without deformation.
*Steel bolts increase overall fastening.
*The”T-track” device makes the buffer strip have different fastening points in the whole length to ensure the connection is firm and reliable and easy to disassemble.
*The various parts are connected by hot vulcanizing technique.
Advantage
——Conveyor impact buffer bar can effectively prevent the occurrence of uneven force on the conveyor belt and reduce the impact damage of the material;
——The surface material is smooth and wear-resistant UHMW-PE, which can reduce frictional resistance and prolong life;
——The middle layer of high elastic rubber of the impact bar can effectively absorb the impact of the material on the conveyor belt;
——The bottom layer uses special high-strength steel parts, which is light and does not rust, easy to install, and the impact bar can be replaced by a single piece;
——Conveyor impact buffer bar can be disassembled and assembled according to different carrying capacity, bandwidth and slot angle to improve production efficiency.
Parameters
| Brand | BAI-OTT or OEM |
| Model Number | ZJ-IB |
| Material | PE+Rubber+Steel Bolt |
| Colour | Customised production |
| Belt Width | 550mm—2400mm |
| Belt Speed | Up to 1800 fpm (9m/s) |
| Hardness | 60—70 Shore A |
| Sample | Available |
| Application | Coal mines, Cement plants, Steel plants, Power plants and other factories |
| Facture | High elastic+Adjustable+High Wear-Resistant+High Quality |
| Corrosive Conditions | YES |
| Underground Applications | YSE |
| Product Inspection | Available |
| Lead time | Ready to ship in stock |
| MOQ | 10 Pcs |
| Shelf Life | 12 Months |
| Supply Capacity | ISO9001; ISO14001; ISO45001; CE; UPEM |
| Packing | Pallet, Wooden case |
| Delivery Time | 10～30 Pcs, 1-3days / 50～100Pcs, 3-5days |
FAQ
1、How long will your rubber sheets last?
Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.
2、How can I get some samples?
We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.
3、Can I visit your factory?
Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
