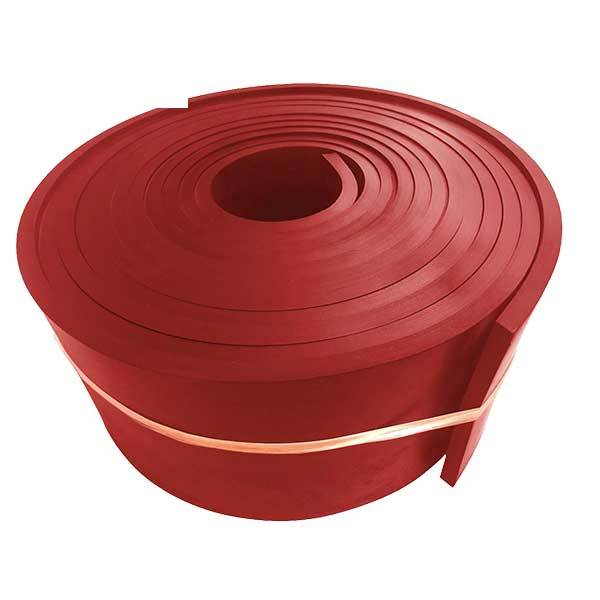

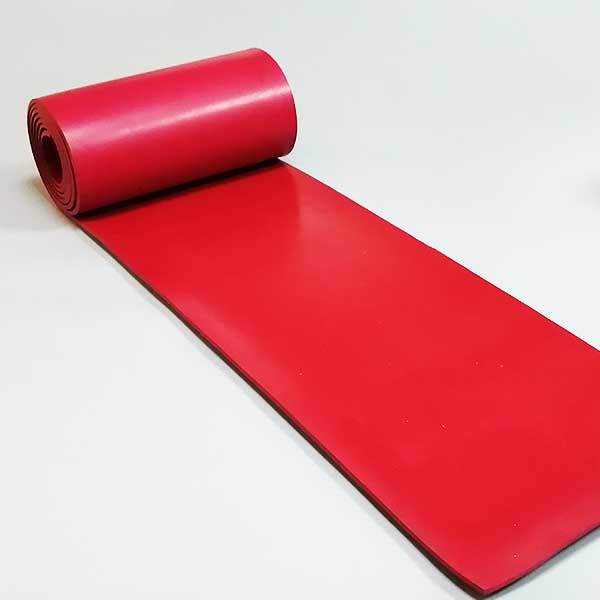

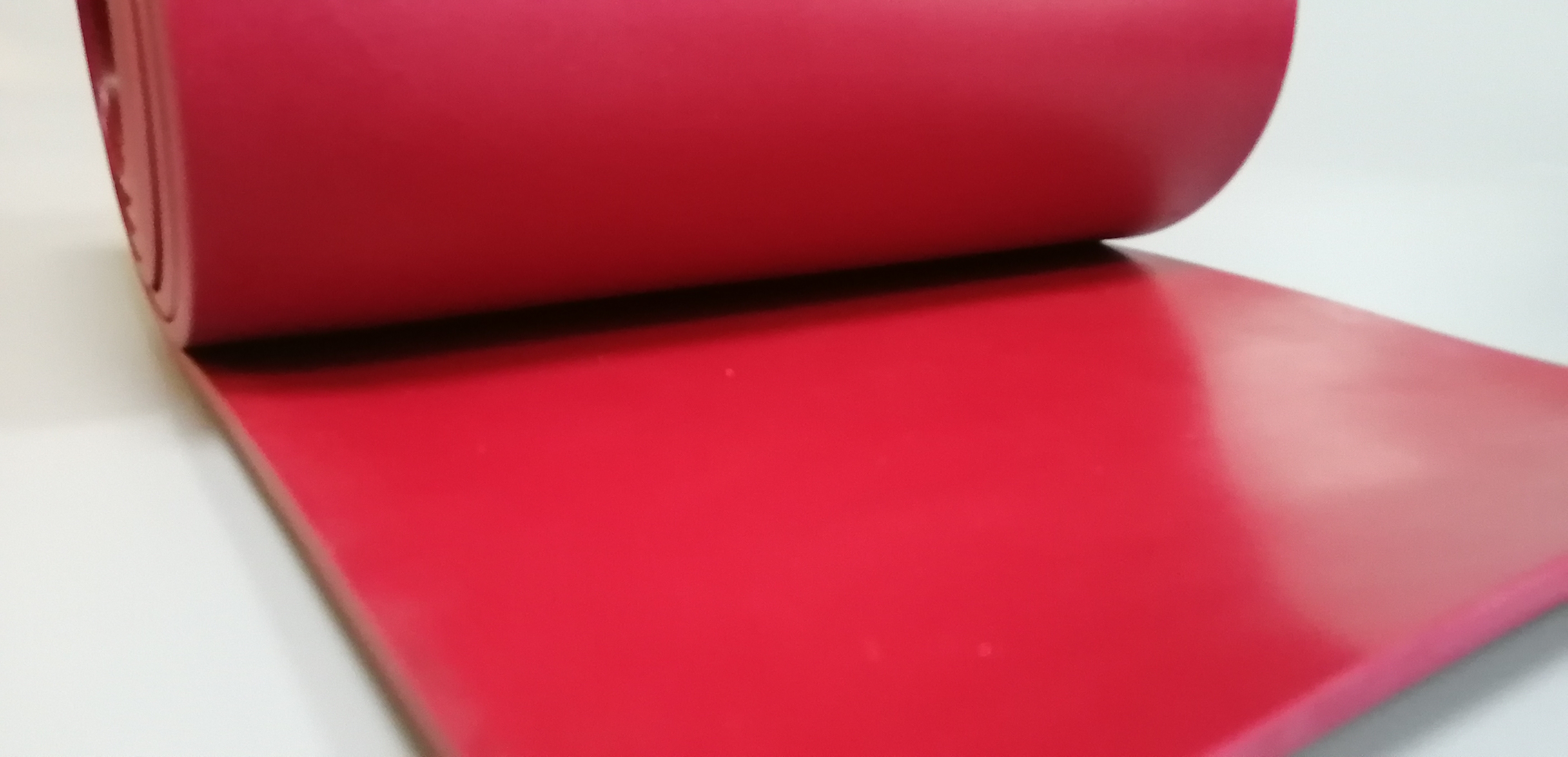

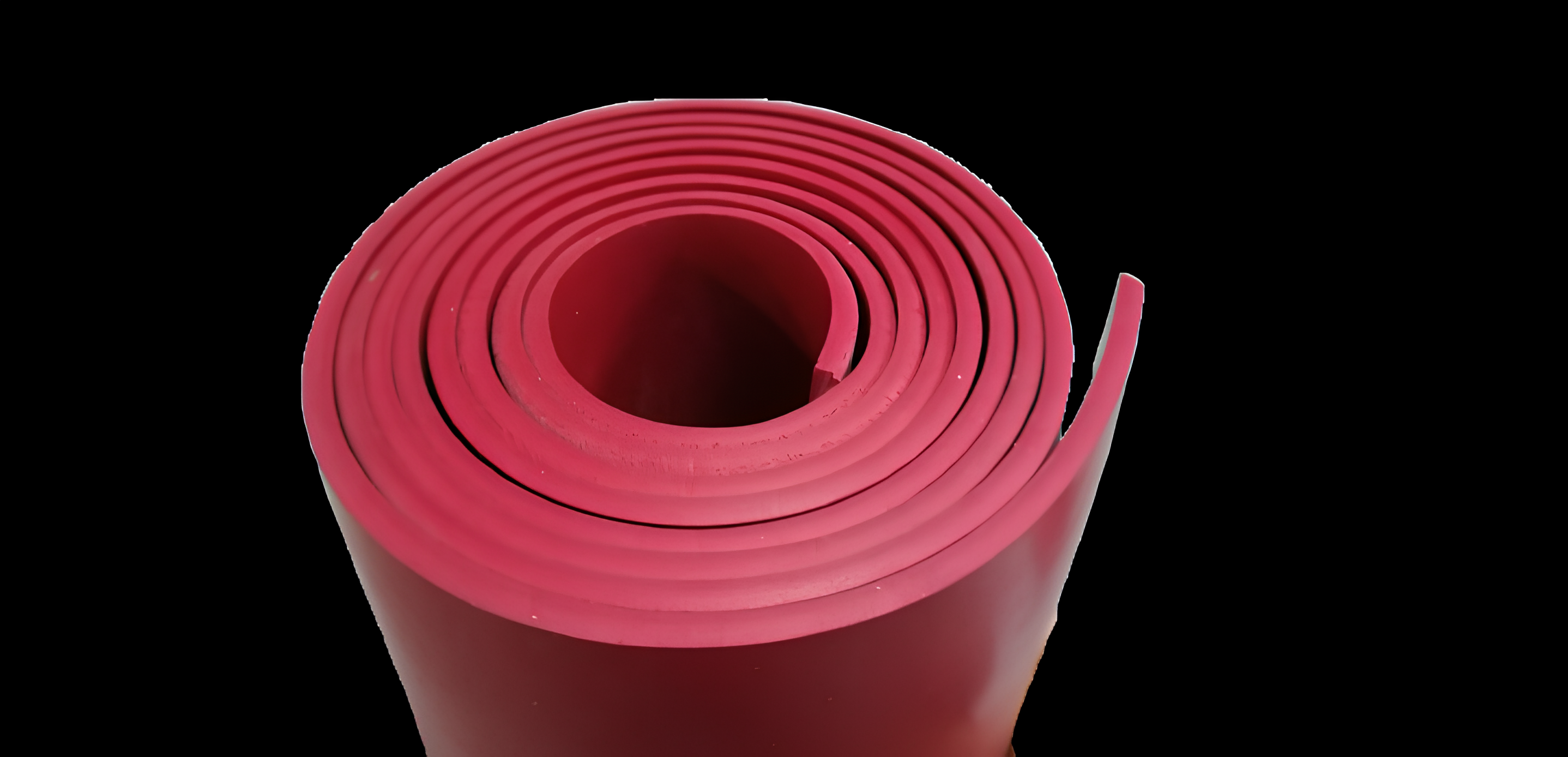

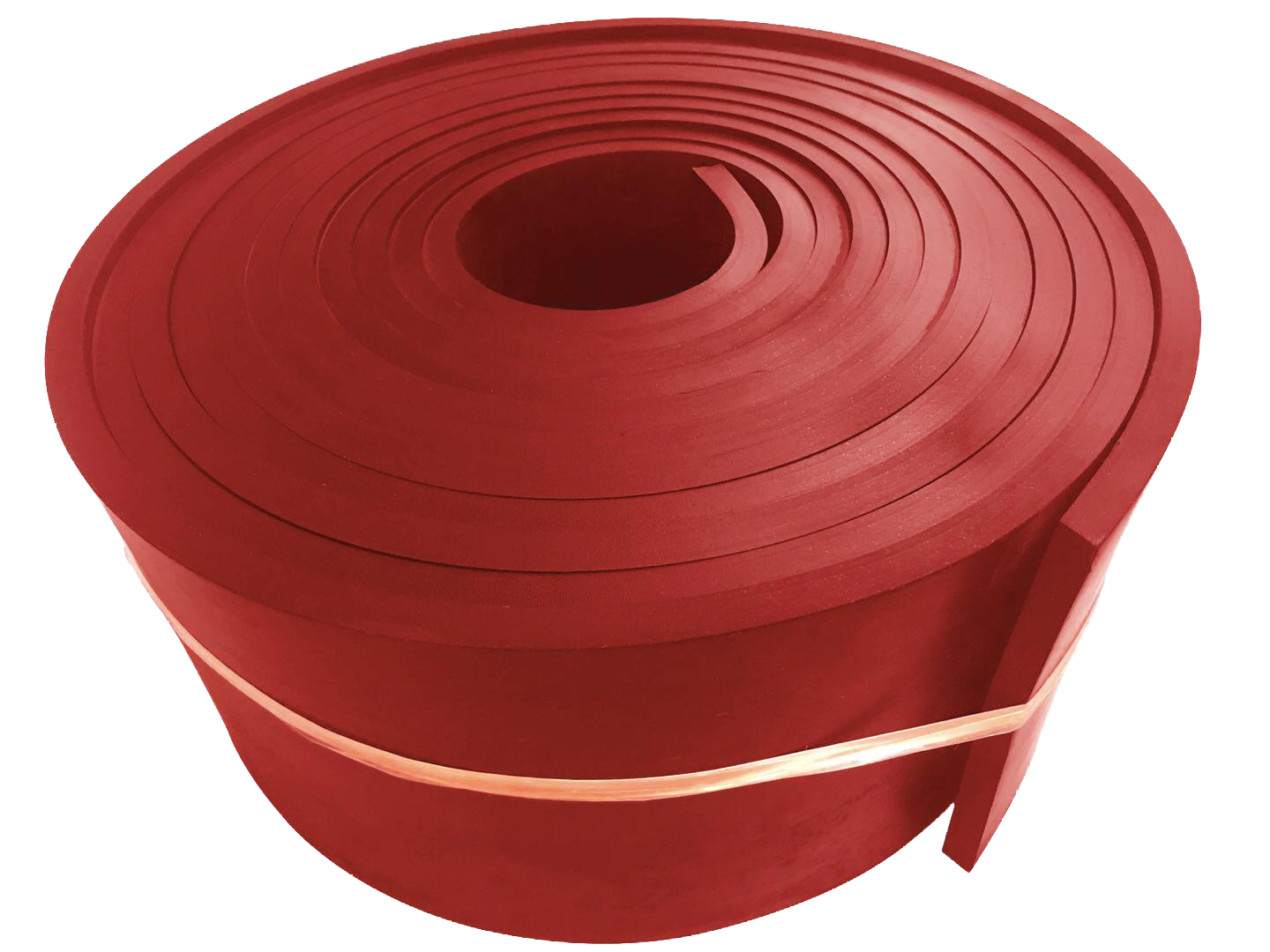

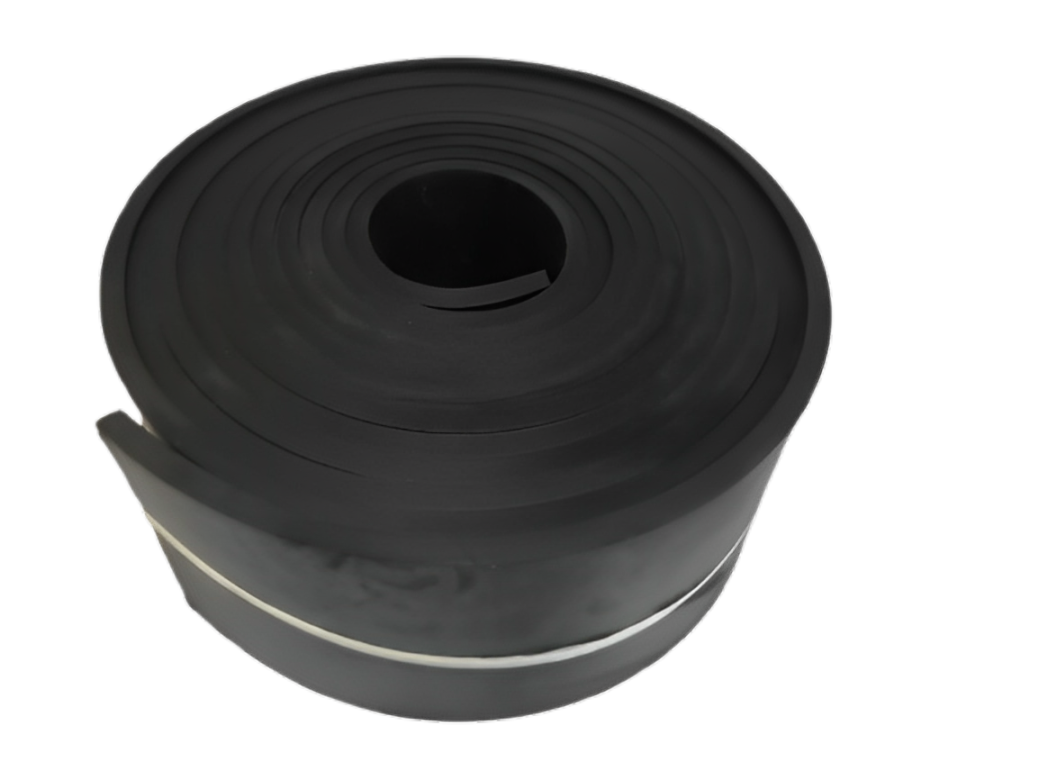

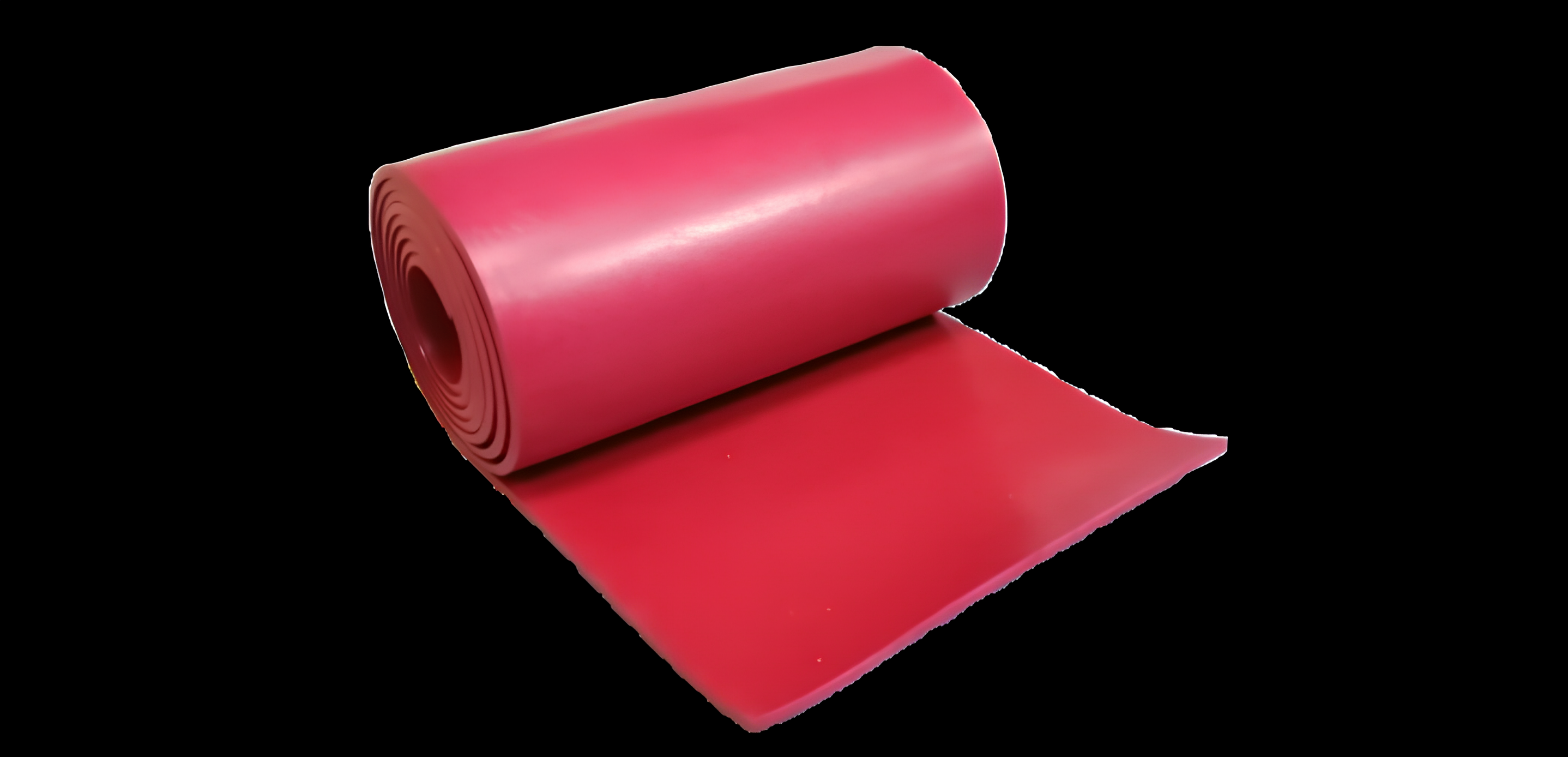

Bai-Ott natural rubber skirting ZJ-NT has the advantages of soft, wear-resistant, high elasticity, can be used in the conveyor belt skirting, can be very good to protect the conveyor belt.

Product Alias:


Related Downloads

For more information, please contact us directly by phone or email

Online inquiry

Product Details


Which is very necessary in conveyor equipment because it can save human labour to clean the site and keep people safe and improve the working efficient. Especial the power and small lump factory, the skirting rubber can really provide a better working environment for you.

Natural rubber skirting

Advantage

——The overall anti overflow skirt adopts the double sealing structure of straight plate and skirt, with excellent sealing effect.

——Straight plate: its function is to block large particle materials. At the bottom of the straight plate, the part in contact with the belt is "herringbone" polyurethane, which has large volume and longer wear time.

——Skirt head: it is used to prevent dust overflow and is the most severely worn part. By adding special formula high-pressure casting polyurethane, the service life of anti overflow skirt is greatly improved. After actual use on site, the service life of anti overflow skirt is ≥ 1 year when the belt speed is 6m /'s.

——The ear section of skirt adopts natural rubber with good elasticity. By the action of this elastic force, the skirt head exerts appropriate pressure on the belt to keep the skirt head close to the belt all the time, so as to ensure that the dust does not overflow.

——The inner side of the skirt head adopts unilateral arc transition. When the belt deviates, it will not hurt the head of the belt and skirt. When the belt returns to normal, the skirt head will automatically return to its original state.

——The overall material has good elasticity, low temperature resistance and no cracking.

——It has flame retardant and antistatic characteristics and is safer to use.

——The skirt at each side of the guide chute shall be made into a whole as required, which shall be the same length as the guide chute to prevent air leakage at the joint.

PRODUCT PARAMETERS

We produce many types of conveyor skirt board for your options

——Double lips convyor belt skirting

——Flat rubber skirt board

——T/I Type Skirting board

——Y Type Skirting board

——Polyurethane skirt board with beveled edge

Dual seal skirt board

Double layer structure, inside layer keeps materials, outside layer prevent dust-leakage. The parts where contact the belt is made of polyurethane, which have longer lifetime and do not damage the belt. Clamp units are easy to install, adjust and maintain.







Flat/Beveled rubber skirt board

Flat rubber skirt board will last longer than conventional skirt board rubber. 50+/-5 provides good sealing against conveyor belt to keep material.

Flat rubber skirt board size

Length: 10~30 meters per oll

Width: 150~350mm

Thickness: 10~30mm



Poly urethane Conveyor Skirt Board is made of an extremely tough 70 Durometer Polyurethane that last an average of 3-5 times longer than rubber skirting equivalents.

Beveled edge that matches the troughing angle of your belt, eliminating the"break-in"adjustment and providing an even greater advantage.

Y shape skirting rubber

Y shape skirting rubber, which can double prevent the dust and materials overflow the belt in belt blanking part. It is made by both PU and NR, PU can better protect the belt surface because it is very smooth and also with good corrosion resistant function, NR with good flexible can provide a better long service life. It is very suitable for some rock, lump, mining and metal factories.







T/I shape skirting rubber

T/I shape skirting rubber adopts a straight PU plate combine a straight rubber plate to be closely attached to the side of the guide chute, and the bottom is in contact with the belt to prevent

material overflow. It is suitable for grain, cement, mineral factory.







  Skirt Board Rubber Parameter

           PU Part

                           Polyurethane                                              Red

                           Material                                                                                    Poly Liner Color



                           75—85 Shore A                                          1.3

                           Hardness                                                                                  Specific Gravity



                           350—450%(at break)                                 2.5—6Mpa

                           Rubber Elongation                                                                  Tensile strength

            Rubber Part

                           Black                                                          300%

                           Rubber Color                                                                          Elongation at break



                           SBR Rubber                                               1.3

                           Base Polymer                                                                          Specific Gravity



                          55—65 Shore A

                           Hardness


Conveyor Skirt Board Features

*Double layer structure, inside layer keeps materials, outside layer prevents dust-leakage.

*The parts where contact the belt is made of polyurethane, which have longer lifetime and do not damage the belt.

*The ultra-high molecular weight polyethylene components have a low friction coefficient, ensuring smooth passage of the conveyor belt without damaging the belt.

*Clamp units are easy to install, adjust and maintain.

Noted:Special size we can customized

Polymer

DIN ISO 1629

NR

Hardness

DIN ISO

21 Shore A

Specific Gravity

DIN EN ISO

1.11g/cm³(69.30lb/ft³)

Rubber Elongation

DIN 53 504

25N/mm²

Tensile strength

DIN 53 504

600%

DIN wear abrasive

DIN 53 512

70%

Rebound rate

ISO 34-1 Method A

11N/mm

Technical parameters:

1. Thickness of main board: 10/15/20/25mm.

2. Width: 100mm-350mm

3. Length: equal to the length of the guide chute according to the actual needs of the site.

Quality Certifications


Parameters



Brand BAI-OTT or OEM
Model Number ZJ-NT
Material NR+Rubber
Colour Orange, Black, Red, Blue, or Customised
Belt Width 100mm—350mm
Belt Speed Up to 1500 fpm (7.5m/s)
Hardness 60—70 Shore A
Size 3/4 inch, 6 inches, 10 inches or Custom
Application Coal mines, Cement plants, Steel plants, Power plants and other factories
Facture High temp+Double seal
Corrosive Conditions YES
Underground Applications YSE
Product Inspection Available
Lead time Ready to ship in stock
MOQ 50 Meters
Shelf Life 12 Months
Supply capacity 6000 meters/month
Certification ISO9001; ISO14001; ISO45001; CE; UPEM
Packing Pallet, Wooden case
Delivery Time 50~300 Meter, 1-3days / 500~1000Mater, 3-5days
