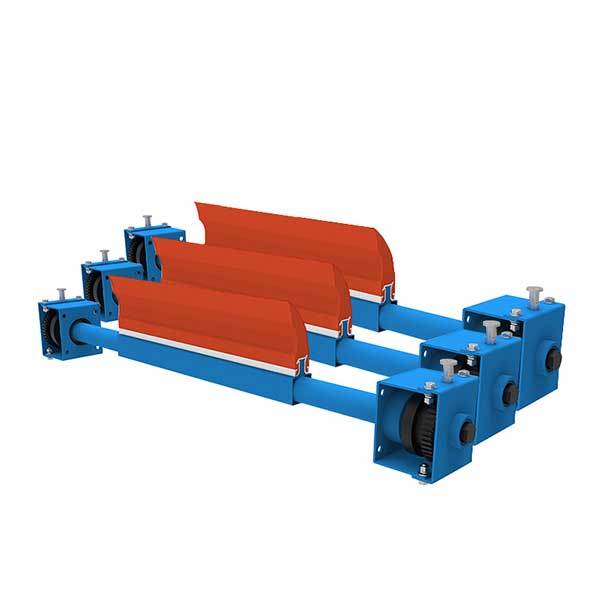

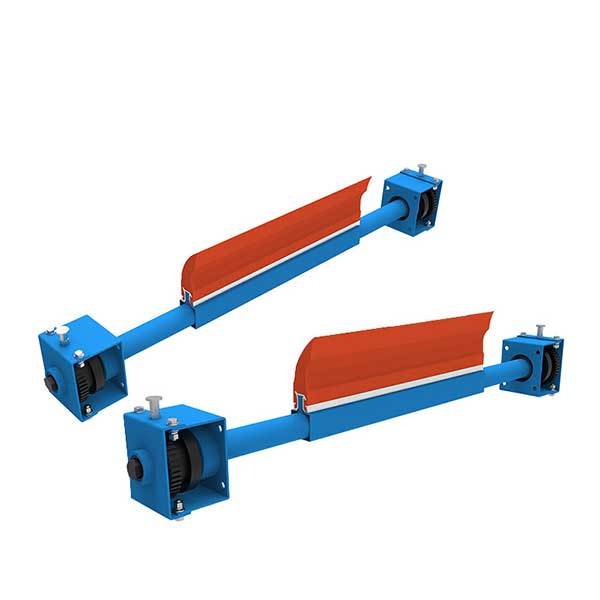

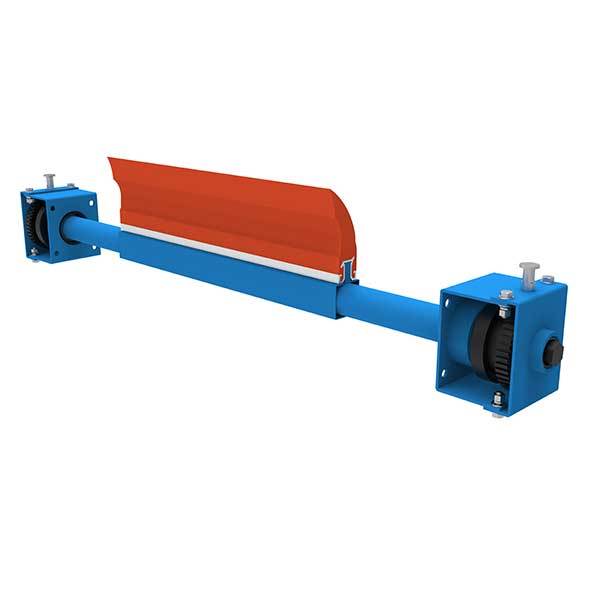

PU Primary Belt Cleaner-General Purpose
Classification:
Product Alias:
Related Downloads
For more information, please contact us directly by phone or email
Product Details
One thing that everyone understands is that the primary cleaner is the most important part of the conveyor belt cleaning system, it is located under the head drum and is the first step in cleaning the whole system, 90% of the residual material can be cleaned through it during transport.
It is therefore necessary to ensure the strength of the frame and drawcord, as well as the wear resistance of the blades, which will affect the overall effectiveness of the product.
This gear polyurethane cleaner - general purpose, can be used in most conveyors, high temperature resistance, wear resistance, installation portability and hardness is the choice of most customers.
Product Specification
|
Order No. |
Product Name |
Belt Width(mm) |
|
ZJCLEAN-GU/R-650 |
PU Primary Belt Cleaner |
650 |
|
ZJCLEAN-GU/R-800 |
PU Primary Belt Cleaner |
800 |
|
ZJCLEAN-GU/R-1000 |
PU Primary Belt Cleaner |
1000 |
|
ZJCLEAN-GU/R-1200 |
PU Primary Belt Cleaner |
1200 |
|
ZJCLEAN-GU/R-1400 |
PU Primary Belt Cleaner |
1400 |
|
ZJCLEAN-GU/R-1600 |
PU Primary Belt Cleaner |
1600 |
|
ZJCLEAN-GU/R-1800 |
PU Primary Belt Cleaner |
1800 |
|
ZJCLEAN-GU/R-2000 |
PU Primary Belt Cleaner |
2000 |
|
ZJCLEAN-GU/R-2200 |
PU Primary Belt Cleaner |
2200 |
|
ZJCLEAN-GU/R-2400 |
PU Primary Belt Cleaner |
2400 |
Further Dimensions on Demand
Difficulty
*High-speed conveyor line
*Difficult to clean up muddy bulk
*High temperature conveyor line
*Scraper replacement hassle
*Blade wears too fast
*Frequent adjustment of locking is time-consuming and labor-intensive
Advantage
——This part touch conveyor belt to cleaner the material on it
——Wear abrasive Polyurethane materail
——Color can be customized
——Temperature from -20 to 120°C available
——Blade is detachable
——Used in power plant, mining, port, cement plant

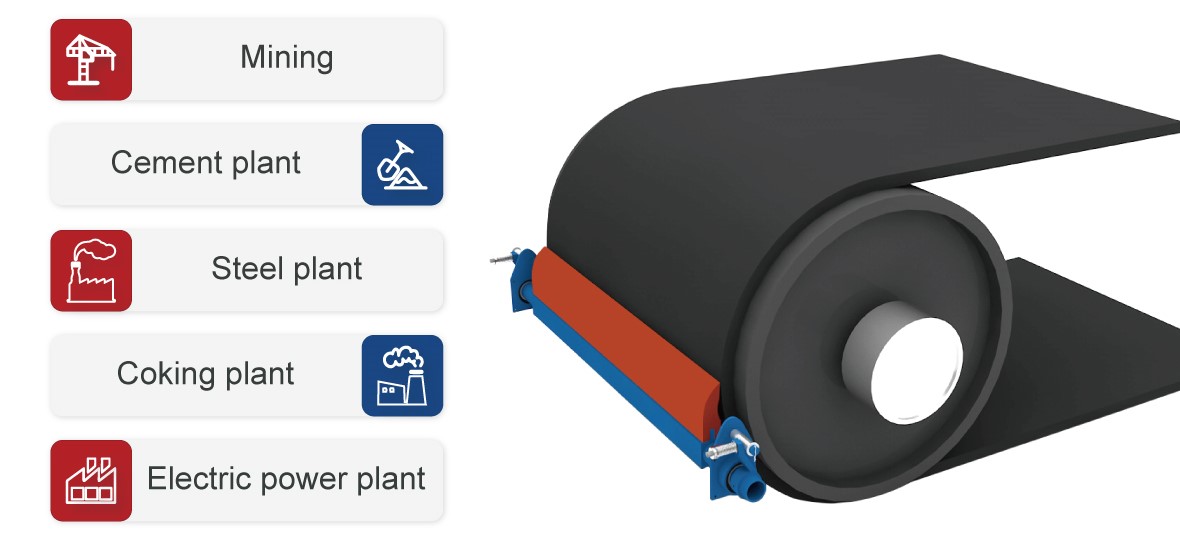

Application Sectors
Detailed Specifications
|
Belt Width（mm） |
A（mm） |
B（mm） |
C（mm） |
D（pcs） |
Scraper Weight（KG） |
Total Weight（KG） |
||||
|
178mm |
260mm |
301mm |
178mm |
260mm |
301mm |
|||||
|
650 |
600 |
650 |
700 |
1 |
6.5 |
13 |
15.3 |
37 |
55 |
60 |
|
800 |
762 |
800 |
700 |
1 |
8 |
16 |
18.9 |
41 |
61 |
67 |
|
1000 |
914 |
1000 |
700 |
1 |
10 |
20 |
23.6 |
45 |
68 |
73 |
|
1200 |
1067 |
1200 |
700 |
2 |
12 |
28 |
23.6 |
55 |
75 |
80 |
|
1400 |
1321 |
1400 |
700 |
2 |
14 |
32 |
33 |
59 |
86 |
91 |
|
1600 |
1524 |
1600 |
700 |
2 |
16 |
36 |
37.8 |
63 |
93 |
98 |
|
1800 |
1676 |
1800 |
700 |
2 |
18 |
40 |
42.5 |
68 |
101 |
105 |
|
2000 |
1828 |
2000 |
700 |
2 |
20 |
44 |
47.2 |
83 |
107 |
112 |
|
2200 |
1912 |
2000 |
900 |
2 |
22 |
48 |
51.9 |
88 |
113 |
118 |
|
2400 |
1997 |
2000 |
900 |
2 |
24 |
52 |
56.6 |
93 |
119 |
125 |

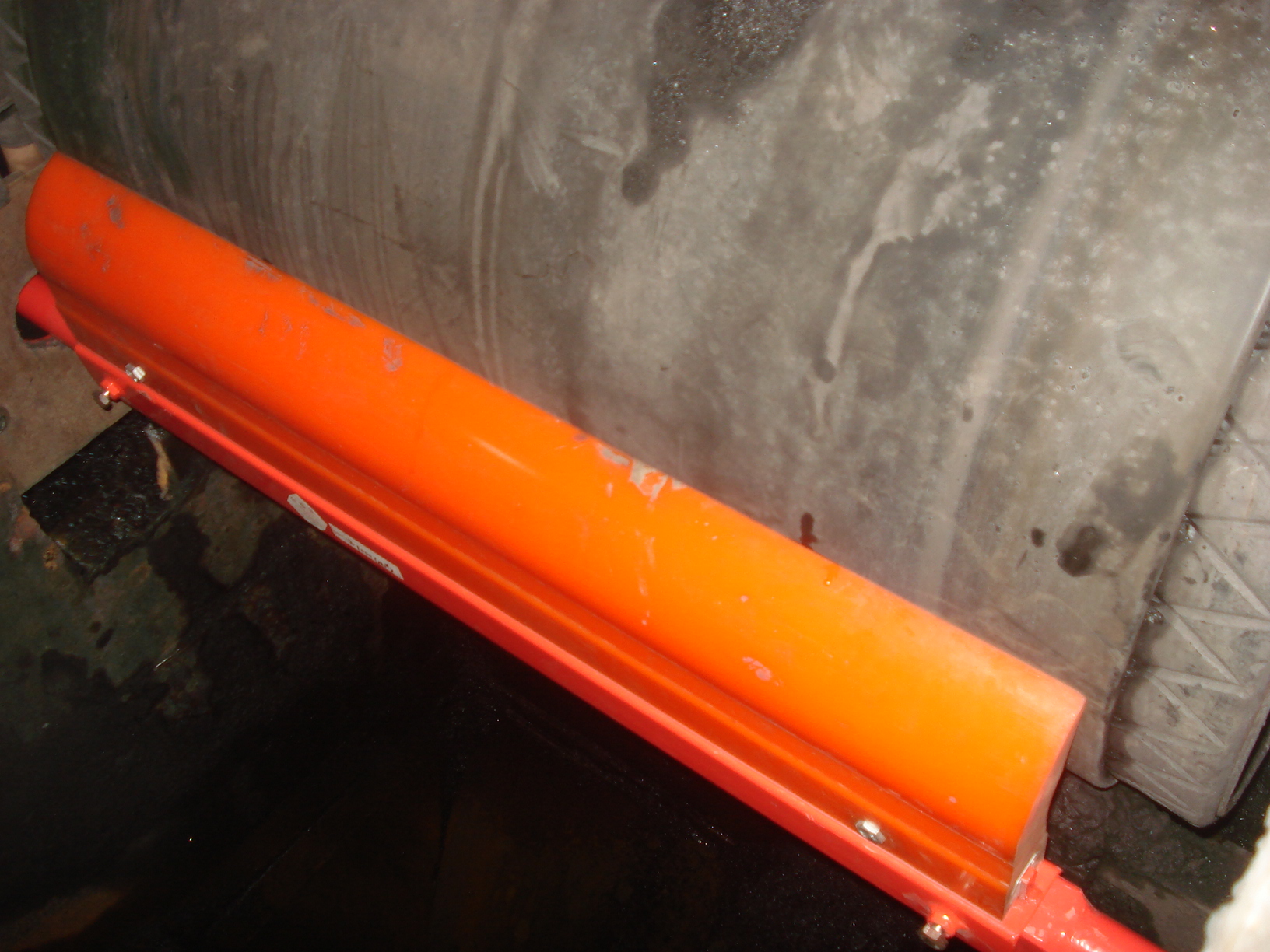

Primary Belt Cleaner Blade Part
*This part touch conveyor belt to cleaner the material on it.
*Wear abrasive Polyurethane materail
*Color can be customized
*Temperature from -20 to 120°C available
*Blade is detachable
*Used in power plant, mining, port, cement plant
|

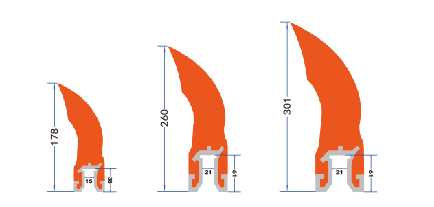

Blade Size |
178mm |
260mm |
301mm |
|
Belt Speed |
≤3.5m/s |
≤6m/s |
≤7.8m/s |

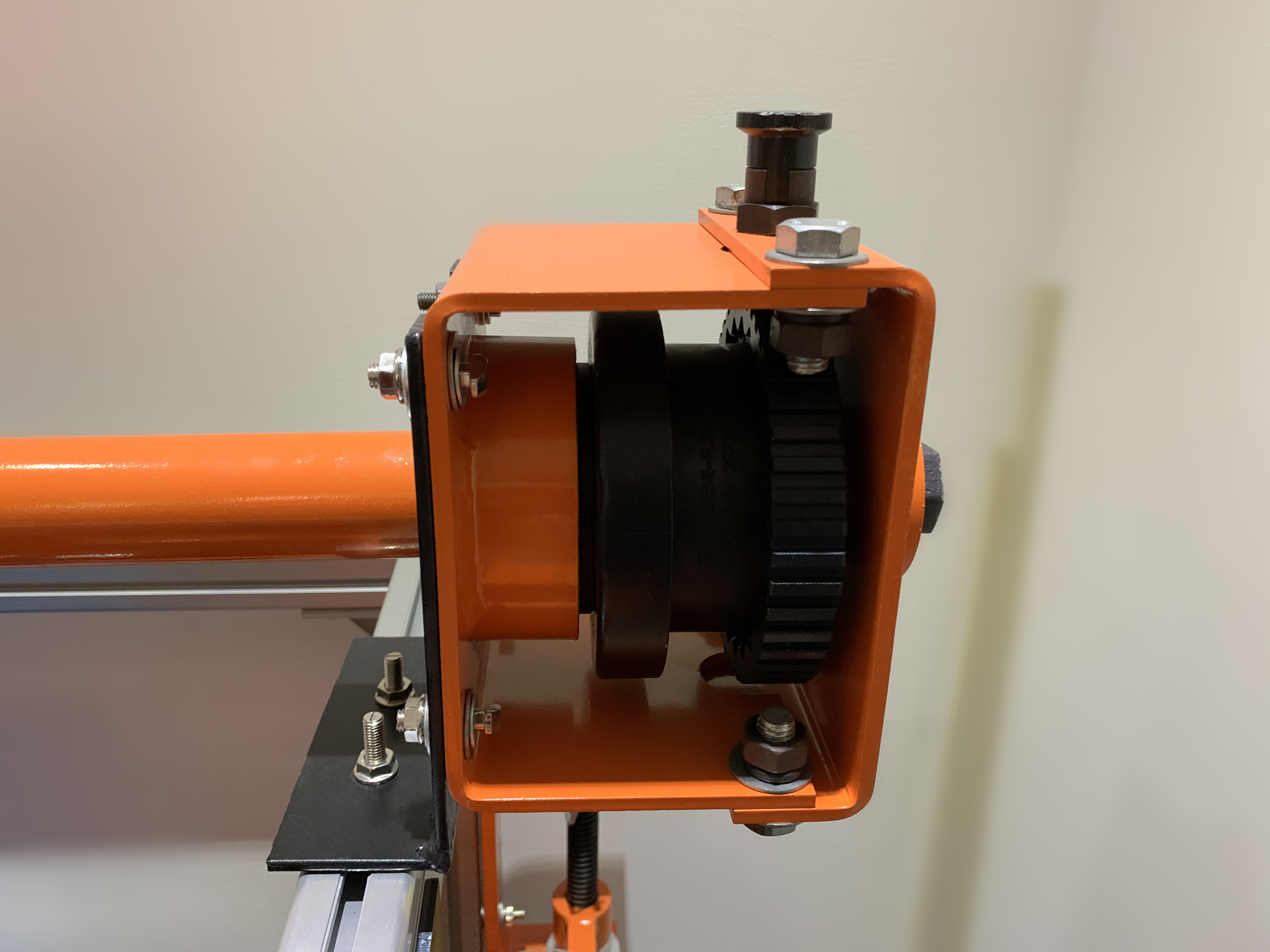

Tensioner Part
Different tensioner types to meet various conveyor type and cleaning requirements.

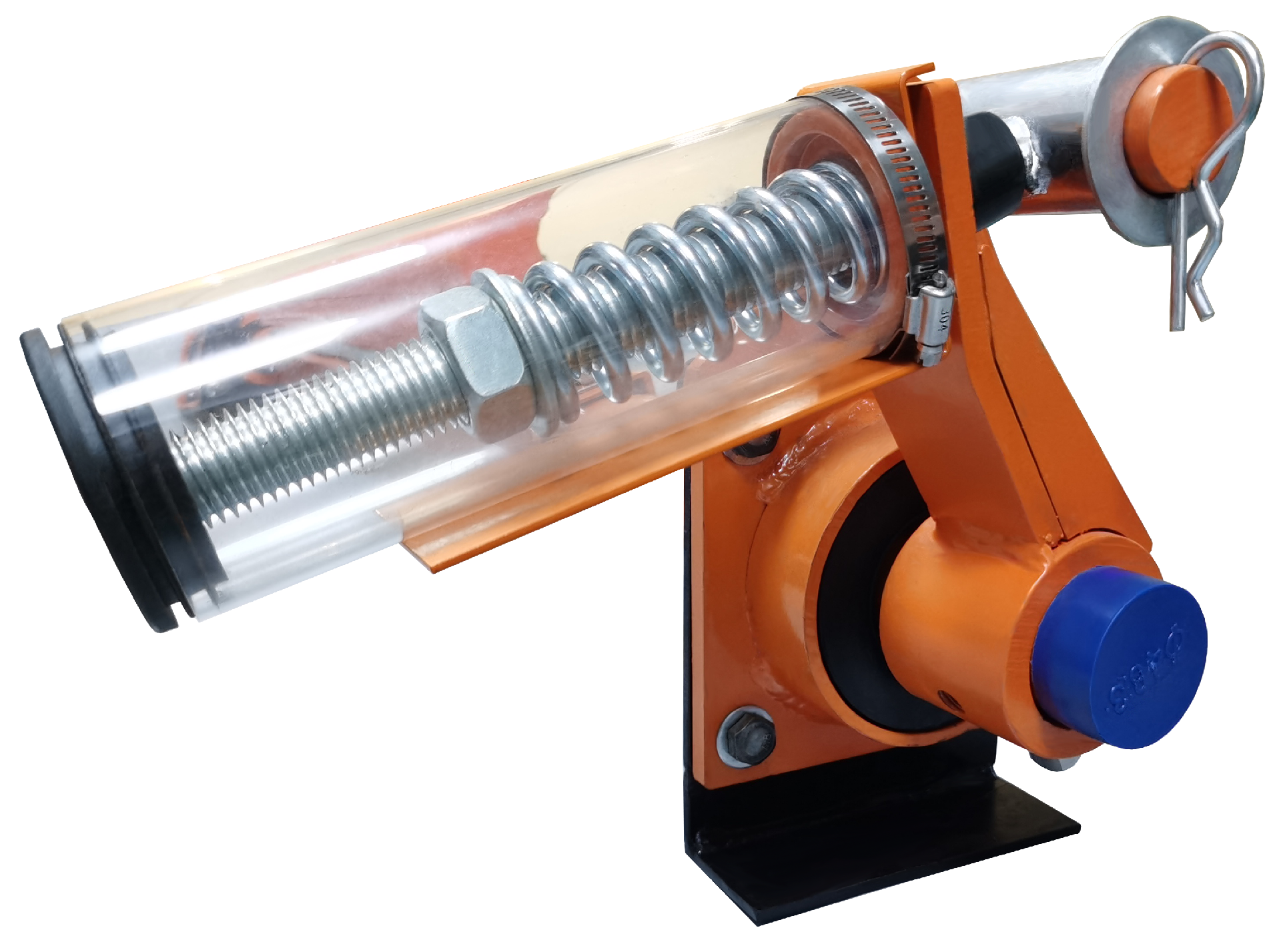

The first Spring Tensioner, standard equipped for our primary polyrethane belt cleaner.
Strong enough to give cleaner a suitable power to closely touch to the belt surface.

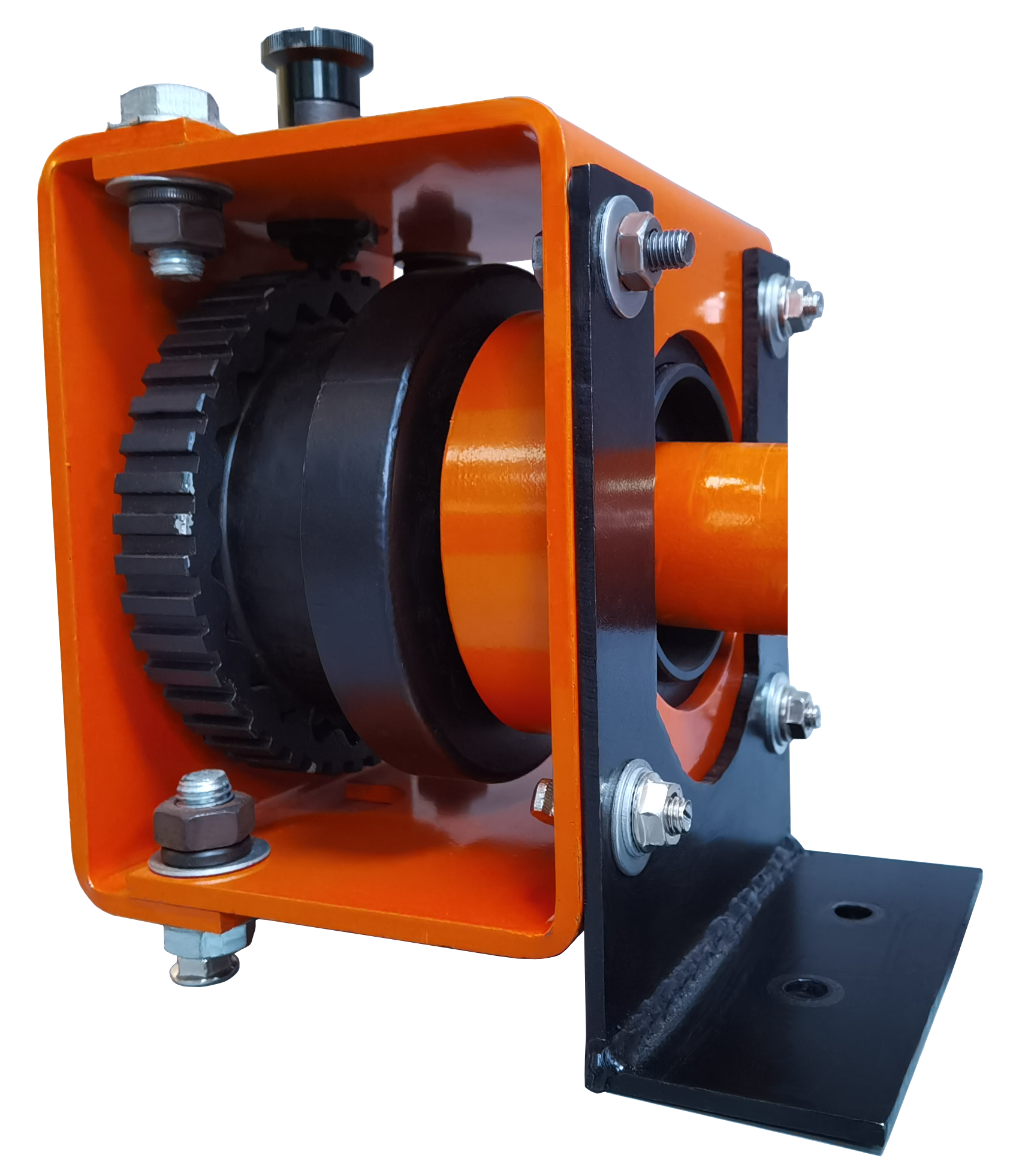

The second is Automatic Gear Tensioner,suitable for many heavy duty conveyor line.
Self adjustable advantage can save labour to modify it when blade wear much until used up.

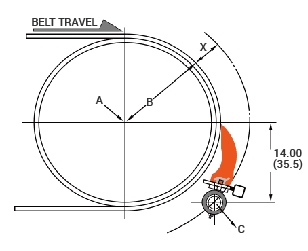

Installment
A. Center point of pulley
B. Radius of head pulley including lagging and belt
C. Center point of belt cleaner mainframe
Datasheet Polyurethane Material
|
Specification |
Polyurethane Type |
The largest belt speed fpm(m/s) |
4.6/6/7.8 |
|
Application temperature |
Continuous:-30--70°C |
Roller diameter in.(mm) |
300-600/500-1000/800-1500 |
|
Hardness(Shore A) |
85±2 |
Tensile strength |
53 |
|
Elongation break |
614 |
Tear strength |
108 |
|
Deformation rate in 23h |
30 |
Abrasion(mm3/1.61KM) |
0.012 |
|
Springback(%) |
20 |
|
|

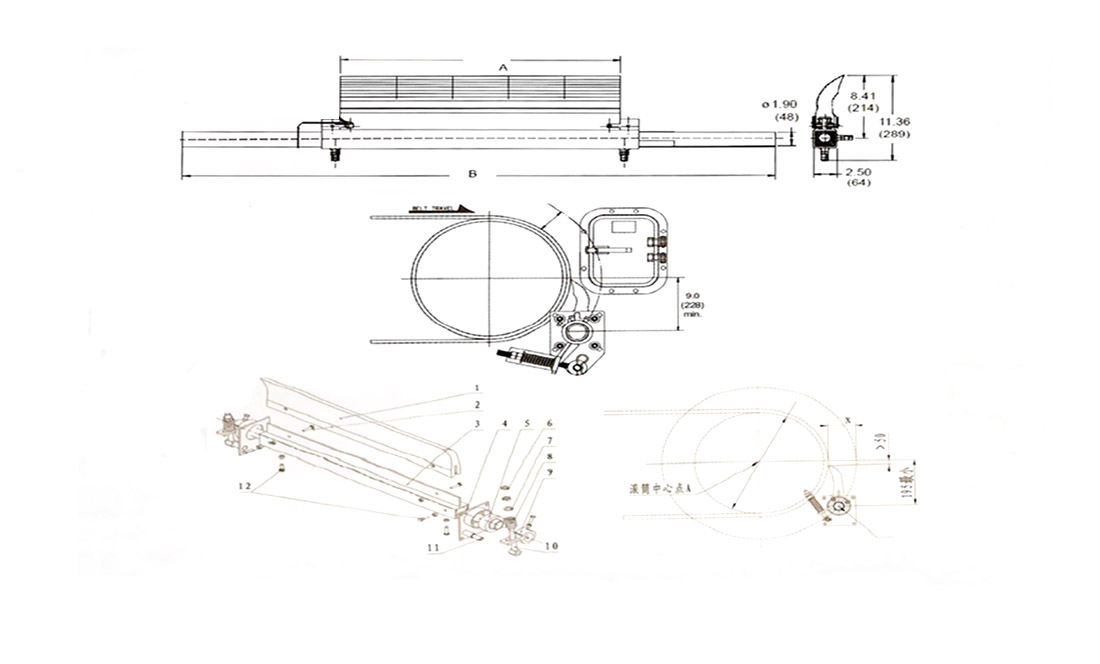

Installation Drawings
Quality Certifications
Parameters
| Brand | BAI-OTT or OEM |
| Model | ZJCLEAN-GU/R |
| Material | Polyurethane |
| Colour | Customised production |
| Belt Width | 650mm-2400mm |
| Tensile Strength | 53 |
| Belt Speed | Up to 1600 fpm(8m/s) |
| Hardness | 85 Shore A |
| Feature | Wear-Resistant, Adjustment, Design |
| Temperature | Between -35 degrees F and 185 degrees F |
| Corrosive Conditions | YES |
| Underground Applications | YES |
| Product Inspection | Available |
| Lead time | Ready to ship in stock |
| MOQ | 1 Units |
| Warranty | 6 Months |
| Supply capacity | 450 units/ month |
| Certification | ISO9001; ISO14001; ISO45001; CE; UPEM |
| Packing | Pallet, wooden case |
| Delivery Time | 1～5 units, 1-3 days / 10～20 units, 3-5 days |
FAQ
1、How long will your rubber sheets last?
Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.
2、How can I get some samples?
We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.
3、Can I visit your factory?
Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.

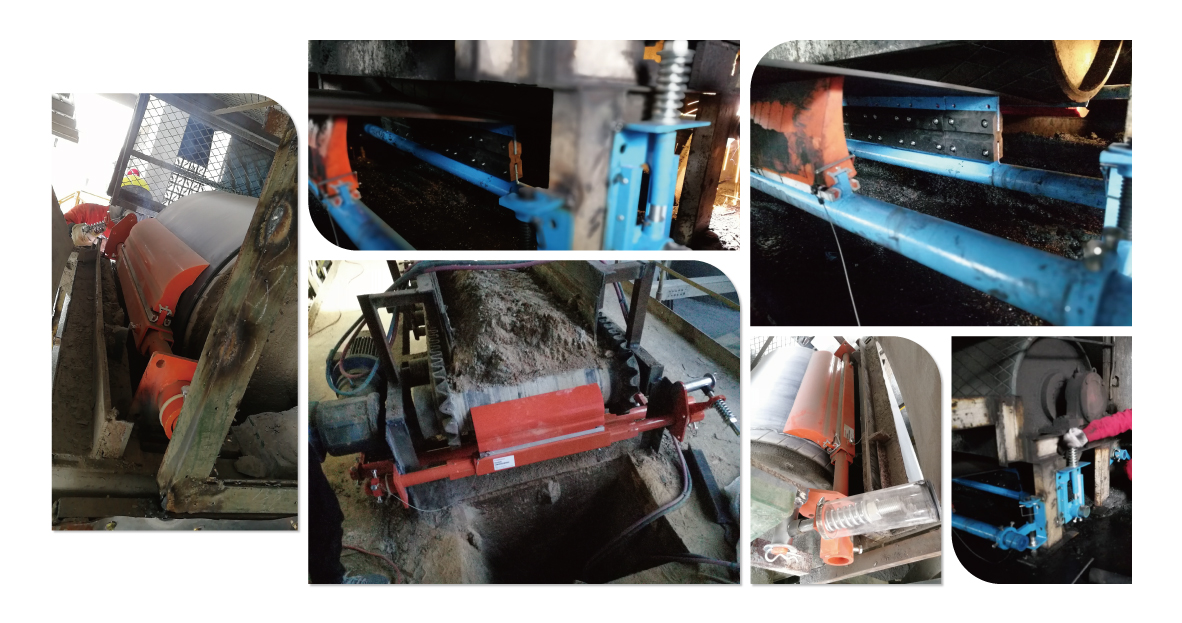

Related Cases
