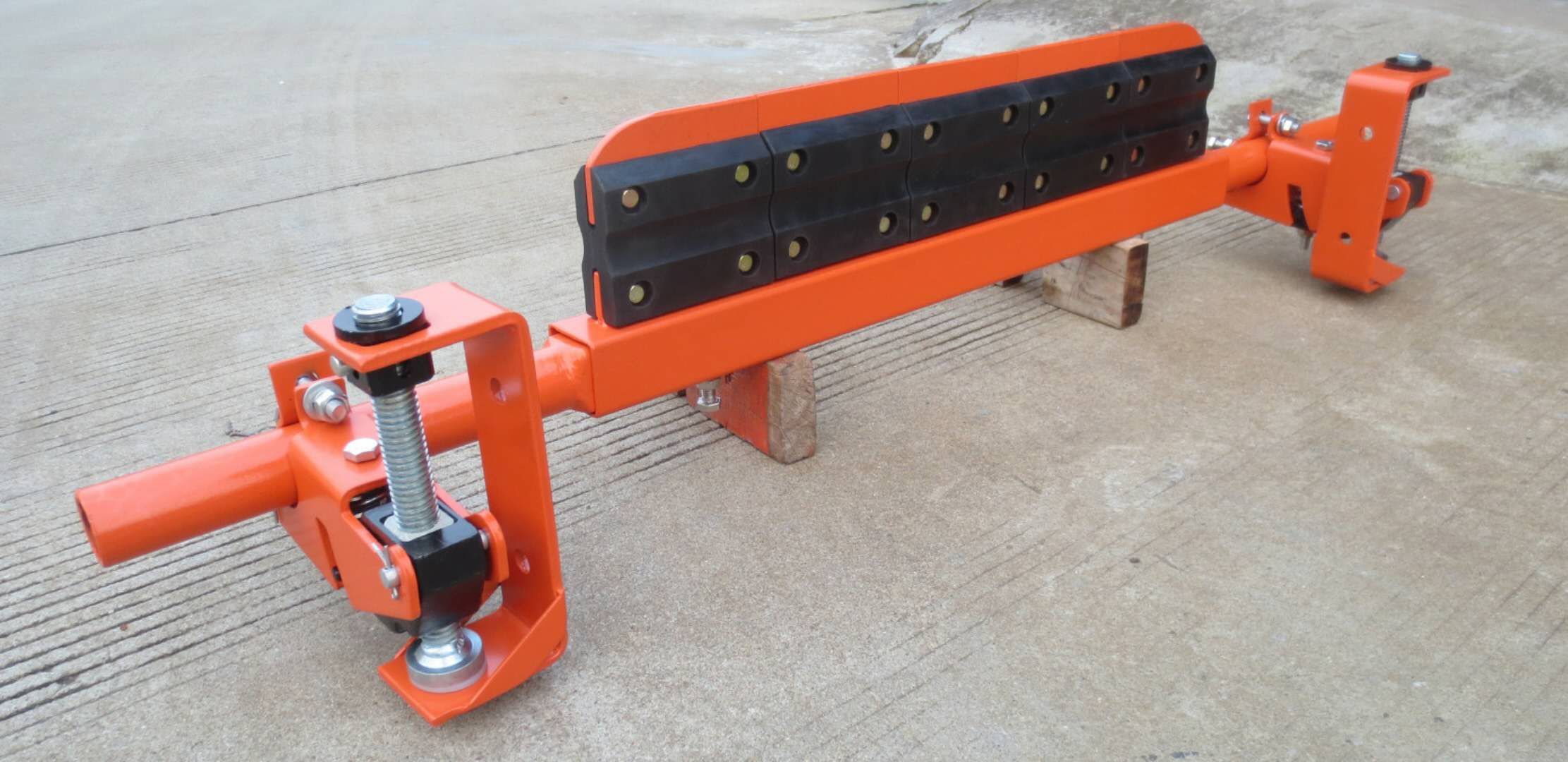

Secondary Tungsten Carbide Belt Cleaner-General Purpose
Classification:
Product Alias:
Related Downloads
For more information, please contact us directly by phone or email
Product Details
BAI-OTT is a professional manufacturer of conveyor belt cleaner and scraper in China. The cleaners we design and manufacture are Light duty PU primary belt Cleaner, Heavy duty primary PU belt scraper, Constant pressure primary belt sweeper, Alloy primary belt cleaner (H type), Ceramic belt cleaner, Medium-sized primary conveyor sweeper, secondary scraper sweeper, second alloy sweeper,second constant pressure sweeper, universal alloy sweeper, Tail V-plow conveyor sweeper, central I-type conveyor cleaner, electric roller brush cleaner and sweeper blade.
Product Specification
|
Order No. |
Product Name |
Belt Width(mm) |
Blade Width(mm) |
Extension Bar(mm) |
|
ZJCLEAN-HA-650 |
Secondary Tungsten Tip Belt Cleaner |
650 |
650 |
650 |
|
ZJCLEAN-HA-800 |
Secondary Tungsten Tip Belt Cleaner |
800 |
800 |
650 |
|
ZJCLEAN-HA-1000 |
Secondary Tungsten Tip Belt Cleaner |
1000 |
1000 |
650 |
|
ZJCLEAN-HA-1200 |
Secondary Tungsten Tip Belt Cleaner |
1200 |
1200 |
850 |
|
ZJCLEAN-HA-1400 |
Secondary Tungsten Tip Belt Cleaner |
1400 |
1400 |
850 |
|
ZJCLEAN-HA-1600 |
Secondary Tungsten Tip Belt Cleaner |
1600 |
1600 |
850 |
|
ZJCLEAN-HA-1800 |
Secondary Tungsten Tip Belt Cleaner |
1800 |
1800 |
850 |
|
ZJCLEAN-HA-2000 |
Secondary Tungsten Tip Belt Cleaner |
2000 |
2000 |
1050 |
|
ZJCLEAN-HA-2200 |
Secondary Tungsten Tip Belt Cleaner |
2200 |
2200 |
1050 |
|
ZJCLEAN-HA-2400 |
Secondary Tungsten Tip Belt Cleaner |
2400 |
2400 |
1050 |
Further Dimensions on Demand.
|

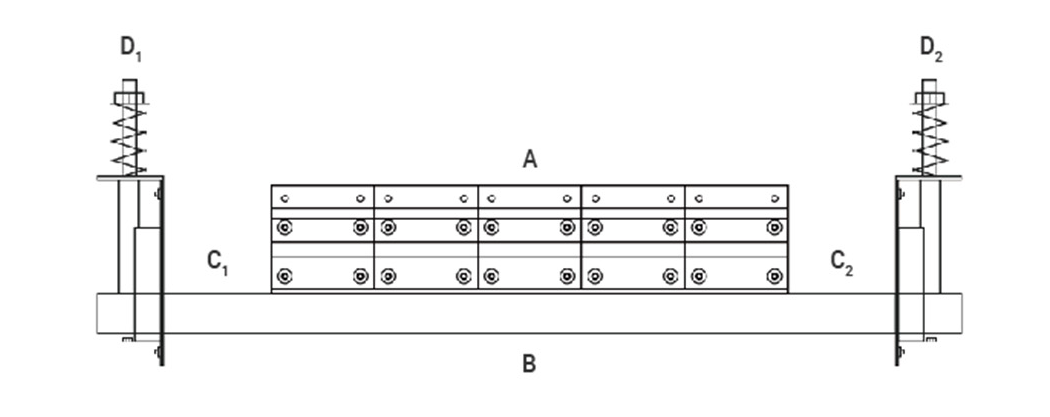

Belt Width（mm） |
A（pcs） |
B（mm） |
C（mm） |
D（pcs） |
Scraper Weight（KG） |
Total Weight（KG） |
|
650 |
4 |
650 |
700 |
1 |
6.8 |
25 |
|
800 |
5 |
800 |
700 |
1 |
8 |
29 |
|
1000 |
6 |
1000 |
700 |
1 |
10 |
34 |
|
1200 |
8 |
1200 |
700 |
2 |
13 |
41 |
|
1400 |
9 |
1400 |
700 |
2 |
15 |
46 |
|
1600 |
10 |
1600 |
700 |
2 |
17 |
51 |
|
1800 |
12 |
1800 |
700 |
2 |
20 |
56 |
|
2000 |
13 |
2000 |
700 |
2 |
22 |
60 |
|
2200 |
14 |
2200 |
900 |
2 |
24 |
65 |
|
2400 |
15 |
2400 |
900 |
2 |
26 |
70 |

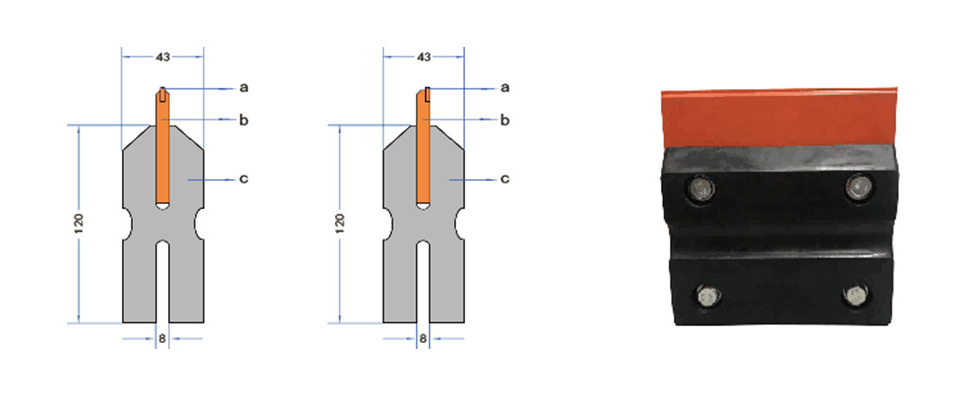

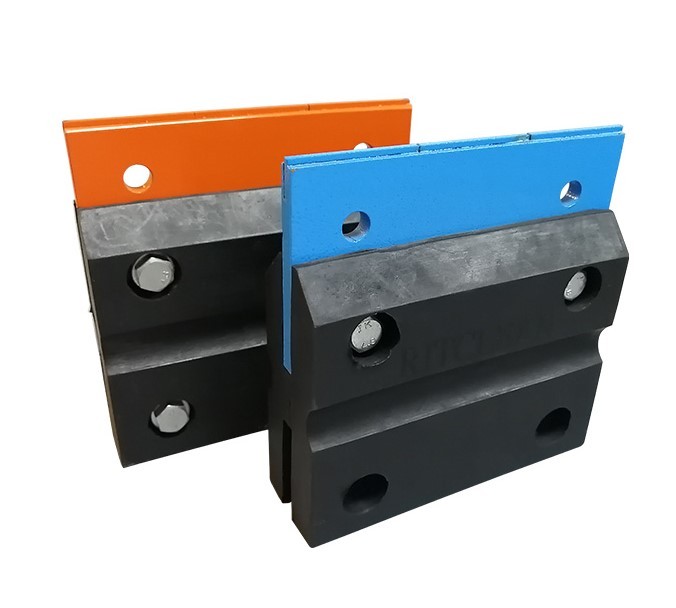

Blade Part
Tungsten Blade is very popular with good wear abrasive ability in secondary belt cleaner field.
*Part a :Tungsten blade
*Part b: Alloy support
*Part c: 73 shore A rubber base

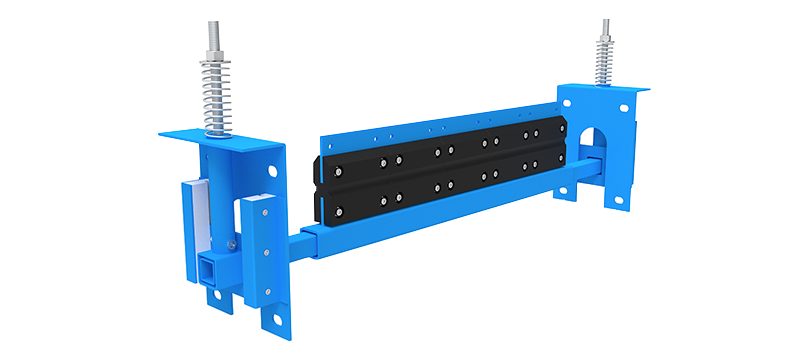

Tensioner Part:
Secondary tungsten tip belt cleaner use Spring tensioner and Venticle tensioner,can shake up and shake up and down freely as the conveyor belt running.
Very well to flow the shake of belt so that can closely touch to the belt to achieve very cleaning effect.
Tensioner Part
Secondary tungsten tip belt cleaner use Spring tensioner and Venticle tensioner, can shake up and shake up and down freely as the conveyor belt running.
Very well to flow the shake of belt so that can closely touch to the belt to achieve very cleaning effect.

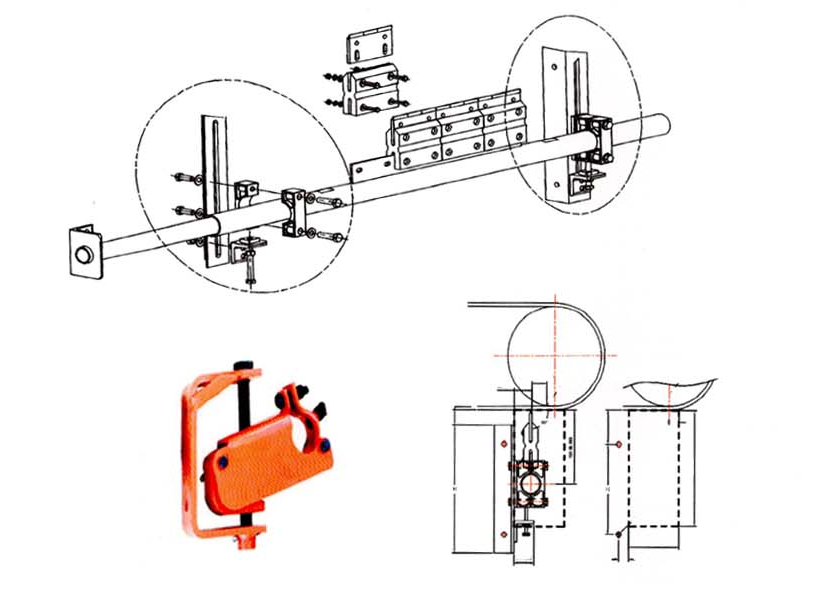

Installation Drawing:
Question
*High-speed conveyor line
*Difficult to clean up muddy bulk
*High temperature conveyor line
*Scraper replacement hassle
*Blade wears too fast
*Frequent adjustment of locking is time-consuming and labor-intensive
Advantage
——The blade is made of special polyurethane material or natural rubber and carbide composite nano material, which has better cleaning effect.
——Not suitable for conveyor belts with metal buckles.
——The blade compensation can be adjusted to keep the blade close to the conveyor belt.
Quality Certifications
Parameters
| Brand | BAI-OTT or OEM |
| Model | ZJCLEAN-HA |
| Material | Tungsten Tip |
| Colour | Blue, Orange, Custom |
| Belt Width | 650mm-2400mm |
| Temperature | Between -30 degrees F and 250 degrees F |
| Available Belt Speed | 500-1600 fpm(2.5m/s-8m/s) |
| Hardness | 75 Shore A |
| Corrosive Conditions | YES |
| Underground Applications | YES |
| Feature | Wear-Resistant, Adjustment, Design |
| Product Inspection | Available |
| Lead time | Ready to ship in stock |
| MOQ | 1 Set |
| Warranty | 6 Months |
| Supply capacity | 450 units/month |
| Certification | ISO9001; ISO14001; ISO45001;CE; UPEM |
| Packing | Pallet, wooden case |
| Delivery Time | 1～3 units, 3-5 days / 5～8 units, 7-10 days |
FAQ
1、How long will your rubber sheets last?
Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.
2、How can I get some samples?
We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.
3、Can I visit your factory?
Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
