BAI-OTT is a professional manufacturer of Skirt Rubber Board in China. Conveyor Skirting Rubber Board is a multi-purpose rubber used as a sealing solution for all conveyors belts. It can not only prevent the materials overflow the belt, but also keep a good site environment.

Description:

The installation method of conveyor skirt rubber board is particularly convenient. After confirming the installation position, fix the special fixing groove outside the blanking groove by welding, riveting and self tapping screws, and then slide the T-shaped rubber block on the back of the multi protection anti overflow skirt into the fixing groove The installation of double sealing anti overflow skirt outside the side plate of the guide chute can effectively prevent the scene of coal leakage and powder running on both sides of the guide chute, which plays an important role in reducing the dust concentration in the belt corridor and improving the environment. The double sealing anti overflow skirt produced by our company is made of polyurethane, modified wear-resistant rubber and natural rubber vulcanization. It is an ideal product for upgrading.

Advantage

*Good dual-layer sealing

*Reduce material spillage and waste

*Improve conveyor safety operation

*Belt friendly, reduce damage to the conveyor belt

*Easy installation and adjustment

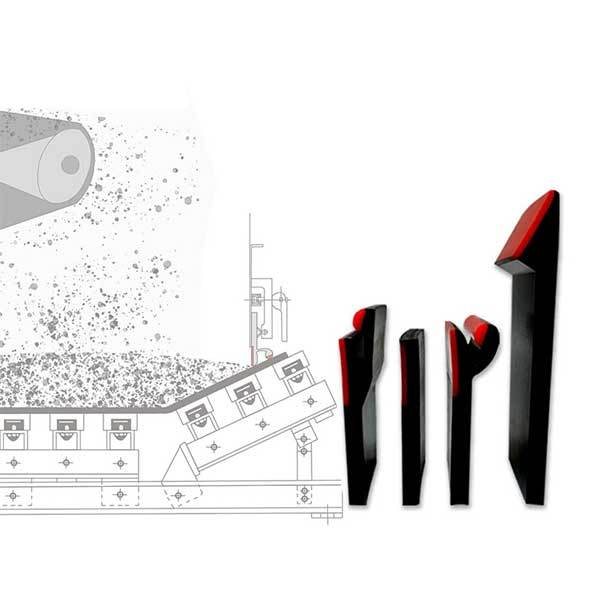

Different type for different application:

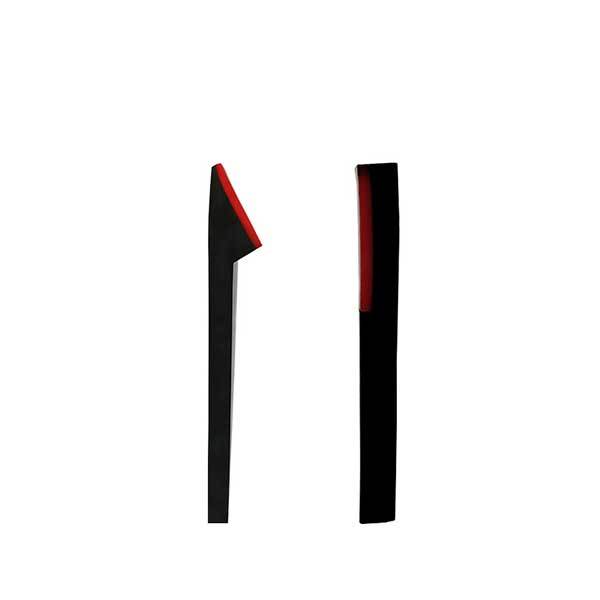

Type 1:

Y / Comma shape skirting rubber, which can double prevent the dust and materials overflow from the belt inbelt blanking part. lt is made by both PU and NR, PU can better protect the belt surface because it is verysmooth and also with good corrosion resistant function, NR with good flexible can provide a better longservice life. lt is very suitable for some rock, lump, mining and metal factories.

Type 2:

T/l shape skirting rubber adopts a straight PU plate combine a straight rubber plate to be closely attachedto the side of the guide chute, and the bottom is in contact with the belt to prevent material overflow. it issuitable for grain, cement, mineral factory.

Type 3:

F shape skirting rubber is also very popular, the main rubber hardness is 75-80 degrees, the anti-overfloweffect adopts F-type seal design. The inner brim is the first layer, and the inner baffle is the second to ensurethe dust-removing negative pressure so that can further enhancing the sealing effect. A static dust cavity isformed between the two lavers to suppress dust flving, Easy to install and maintain, and it can be used inconjunction with the buffer bed, the overall anti-overflow effect is better. So F shape is very suitable forpowder, cement, grain, mining washing factories.

Conveyor Skirting Rubber Board Size

Parameter:

Technical parameters:

1. Thickness of main board: 10/15/20/25mm.

2. Width: 100mm-350mm

3. Length: equal to the length of the guide chute according to the actual needs of the site.

Parameters:

Model Number: ZJ-I

Belt Width: 100mm-350mm

Material: SBR+Rubber+PU

Belt Speed: Up to 1500 fpm (7.5 m/s)

Hardness: Rubber Part, 60-70 Shore A

Colour:Orange, Black, Red, Blue, or Custom

Underground Applications: YES

Starting quantity: 50 metres

Warranty: 6 months

Supply capacity: 8000 metres/ month

Certification:ISO9001;ISO14001;ISO45001;CE;UPEM

Packing: pallet, wooden case

Delivery Time：50～300 Meter，1-3days / 500～1000 Set，4-7days
