Product Details

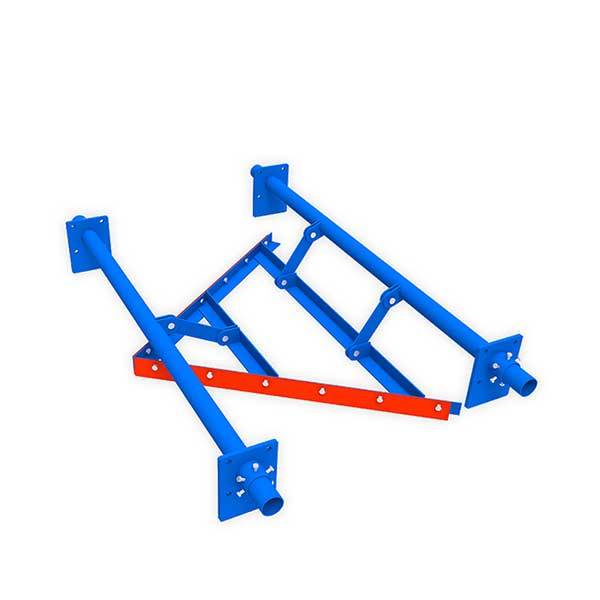

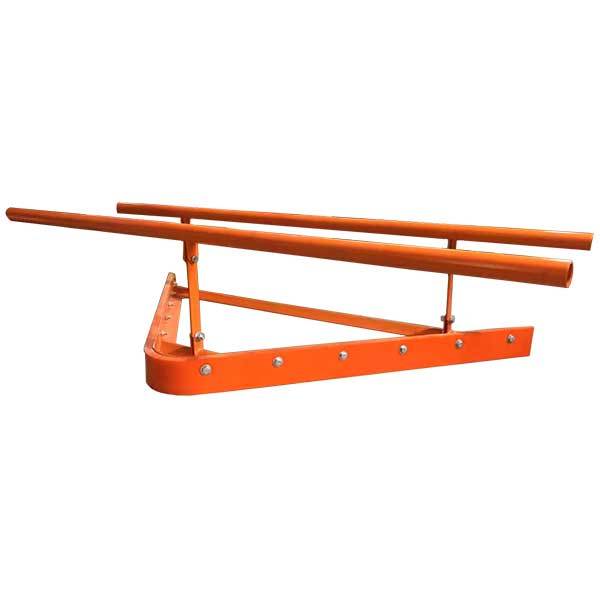

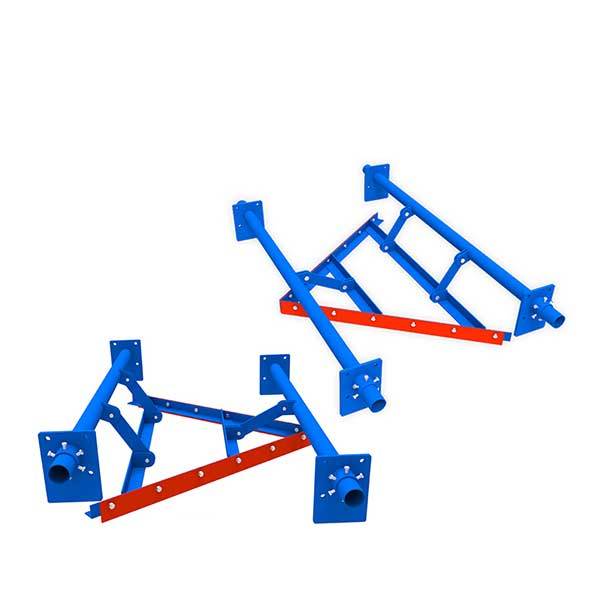

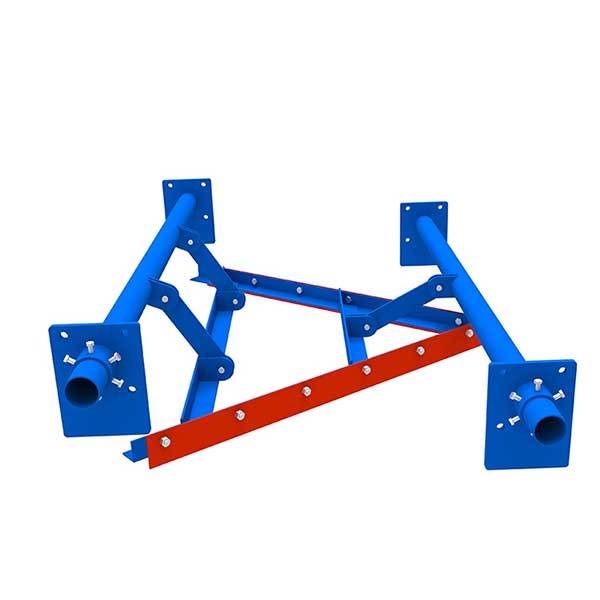

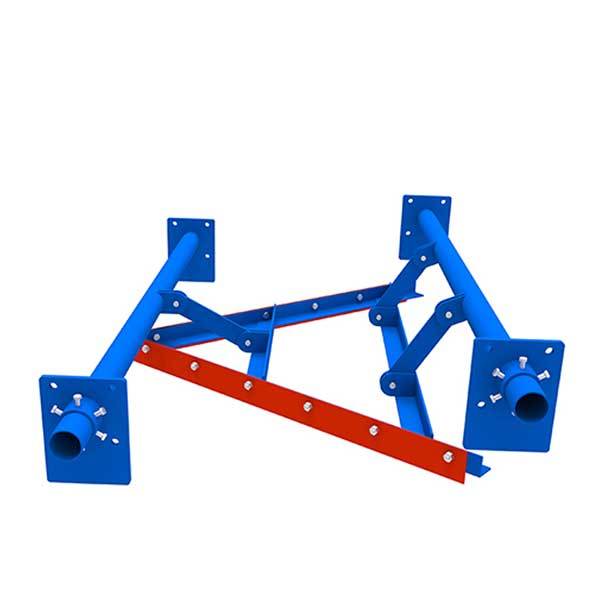

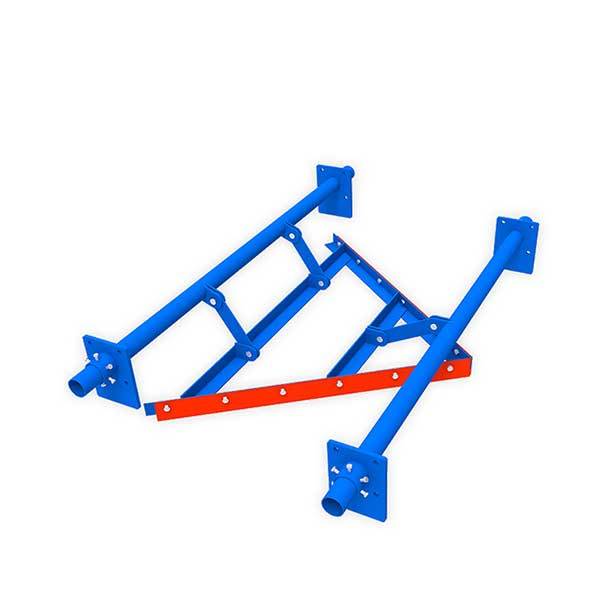

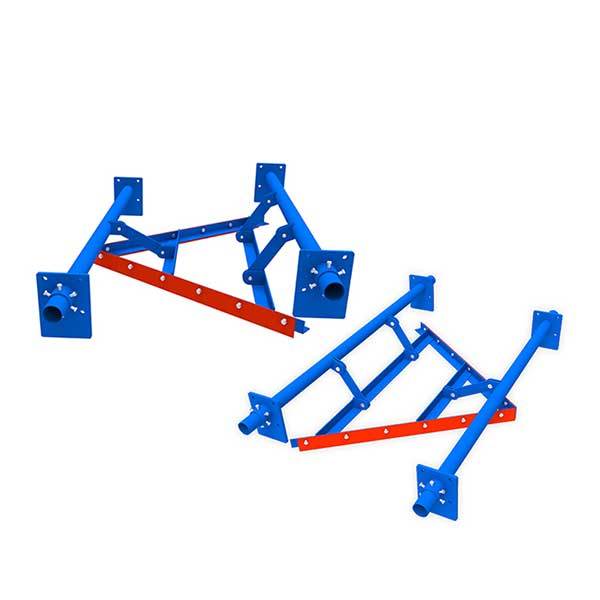

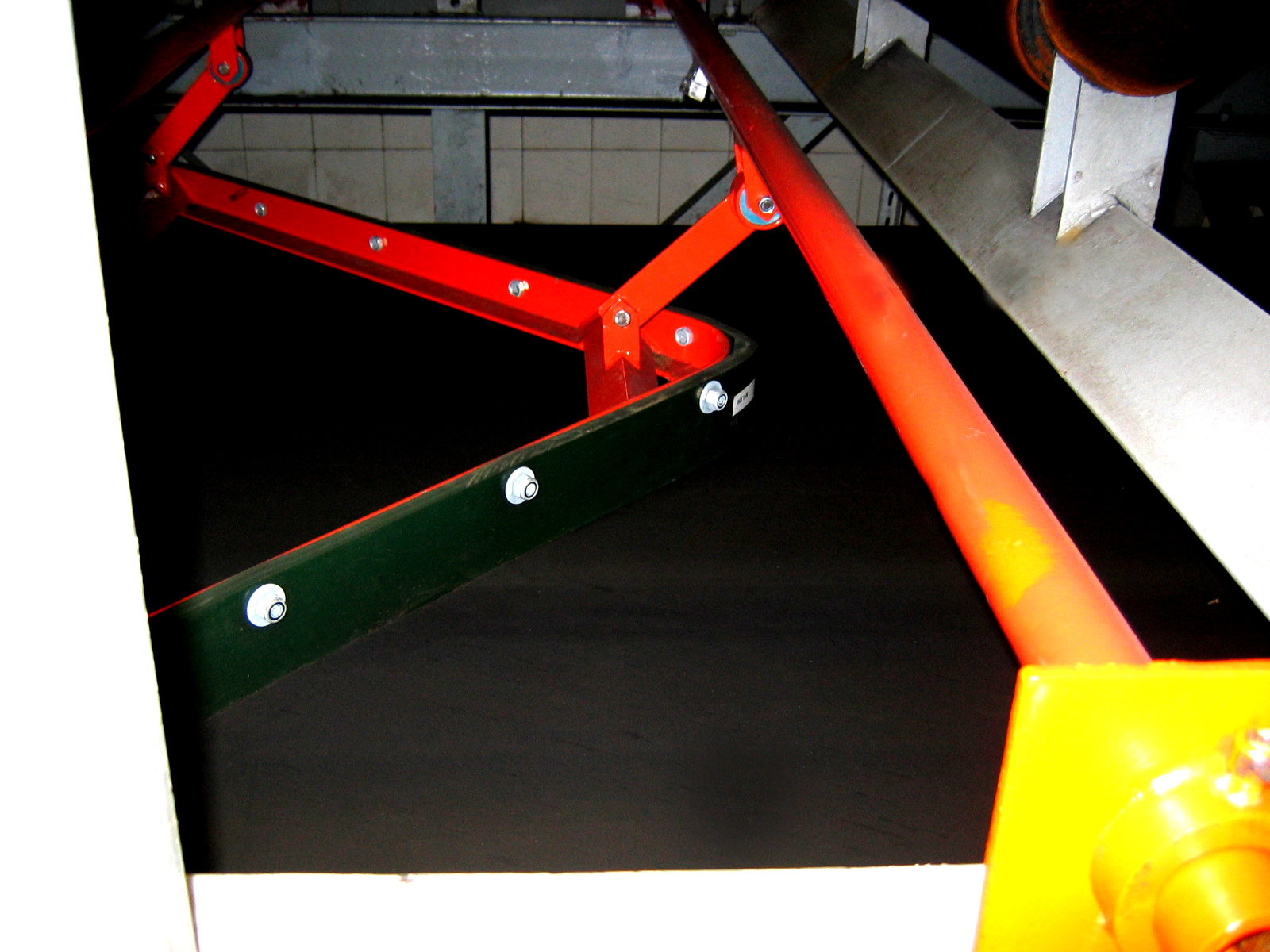

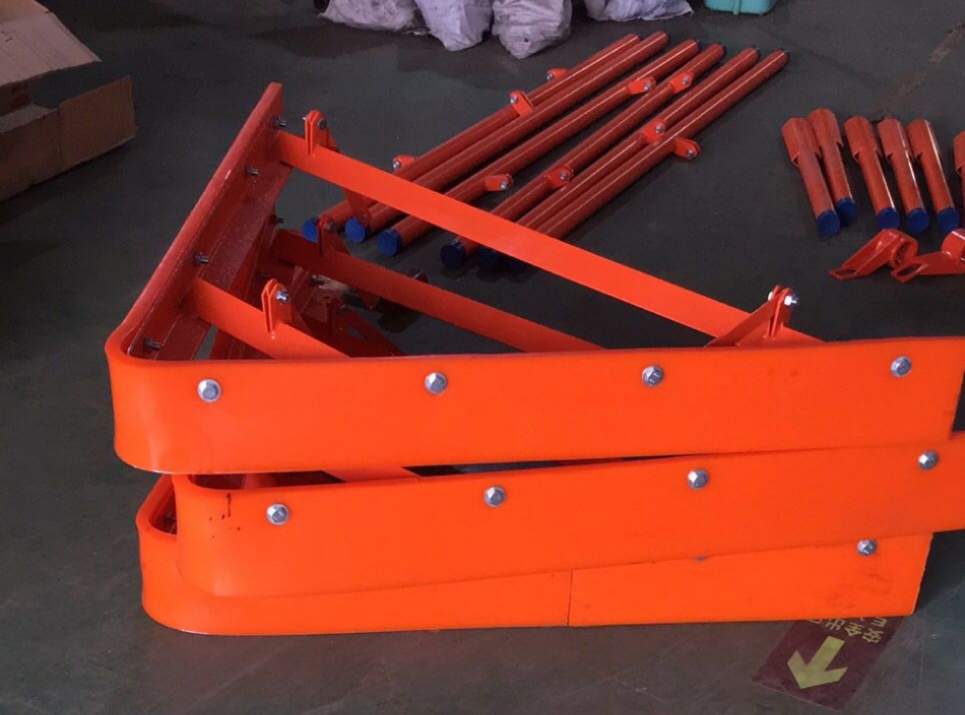

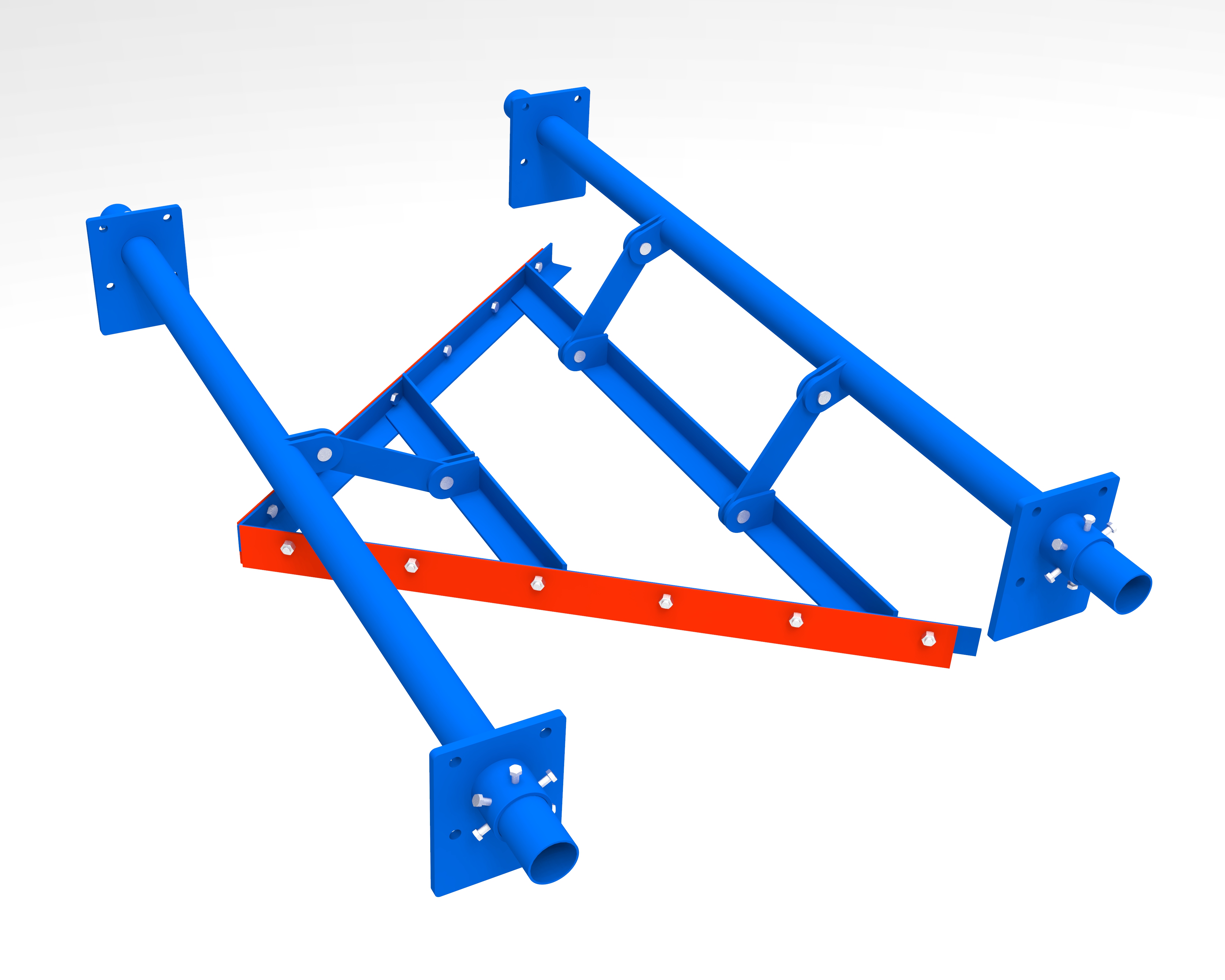

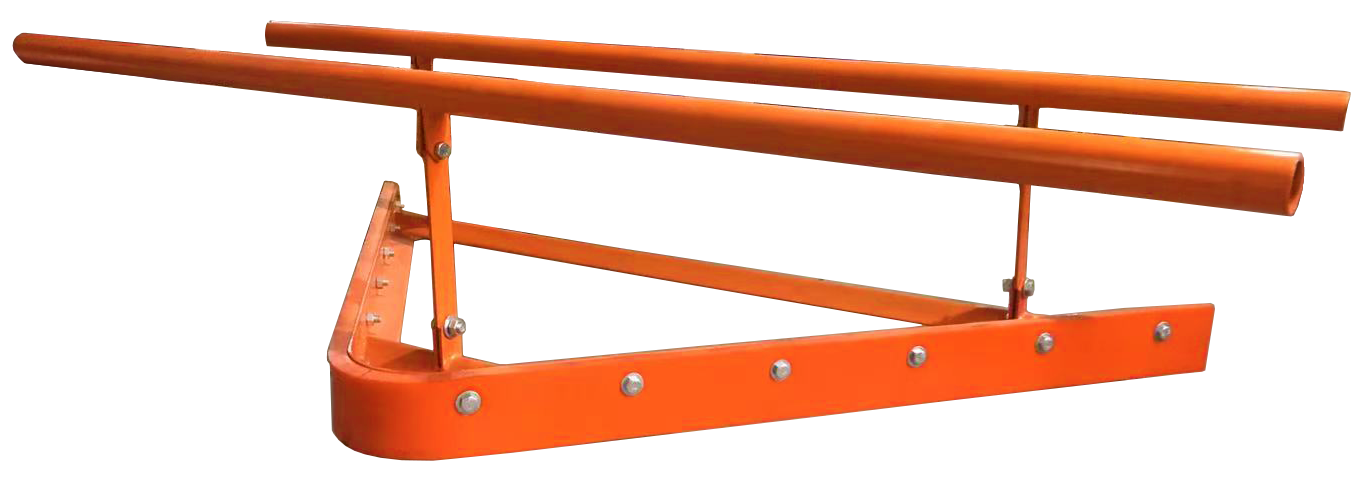

Non working PU V-Plow Belt Cleaner Machine is installed on the return belt at the front end of the reversing roller at the end of the belt conveyor, and cleans the residue on the upper surface of the return belt, so as to avoid the residual material being clamped in the tail roller and causing damage to the conveyor belt and the roller.
1. Urethane belt scraper
2. Installed on the non working area of conveyor belts
3. Easy to replace and install
The manufacturing process has been re-engineered to be faster and more efficient, which means lower purchasing costs for you.
Maintenance costs are much lower because the blades last longer and are built with the industry's strongest hosts.
Advantage
——The cleaning blade is made of high-strength polyurethane, which has high strength, high wear resistance, high elasticity, low friction coefficient, will not cause damage to the conveyor belt, and has a long service life.
——The unique plow cleaning structure makes it easier to remove the residue on the surface of the conveyor belt.
——After the blade is worn, the blade compensation can be automatically adjusted according to the self-weight of the cleaner.
Product Specifications
| Order No. | Product Name | Belt Width(mm) | Blade Width(mm) |
| ZJCLEAN-V-650 | V-Plow Belt Cleaner | 650 | 650 |
| ZJCLEAN-V-800 | V-Plow Belt Cleaner | 800 | 800 |
| ZJCLEAN-V-1000 | V-Plow Belt Cleaner | 1000 | 1000 |
| ZJCLEAN-V-1200 | V-Plow Belt Cleaner | 1200 | 1200 |
| ZJCLEAN-V-1400 | V-Plow Belt Cleaner | 1400 | 1400 |
| ZJCLEAN-V-1600 | V-Plow Belt Cleaner | 1600 | 1600 |
| ZJCLEAN-V-1800 | V-Plow Belt Cleaner | 1800 | 1800 |
| ZJCLEAN-V-2000 | V-Plow Belt Cleaner | 2000 | 2000 |
| ZJCLEAN-V-2200 | V-Plow Belt Cleaner | 2200 | 2200 |
| ZJCLEAN-V-2400 | V-Plow Belt Cleaner | 2400 | 2400 |
More customised sizes on request
Order Option
When order or inquiry, pls offer below informaiton:
| 1. Conveyor Belt Width | 800/1000/1200/1600/1800/2000/2400mm |
| 2. What materials are transported | Cement, coal, sticky materials,........ |
| 3. What is the speed of the conveyor belt | 300/500/800/1000/1200/1600fpm |
| On-site installation guidance | Yse or No |
Quality Certifications
Parameters
| Brand | BAI-OTT or OEM |
| Model | ZJCLEAN-V |
| Material | Polyurethane & Carbon Steel |
| Colour | Blue, Orange, Custom |
| Belt Width | 650mm-2400mm |
| Temperature | Between -30 degrees F and 180 |
| Available Belt Speed | 500-1600 fpm(2.5m/s-8m/s) |
| Corrosive Conditions | YES |
| Underground Applications | YES |
| Feature | Wear-Resistant, Adjustment, Design |
| Product Inspection | Available |
| Lead time | Ready to ship in stock |
| MOQ | 1 Set |
| Warranty | 6 Months |
| Supply capacity | 450 units/month |
| Certification | ISO9001; ISO14001; ISO45001;CE; UPEM |
| Packing | Pallet, wooden case |
| Delivery Time | 1～3 units, 3-5 days / 5～8 units, 7-10 days |
FAQ
1、How long will your rubber sheets last?
Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.
2、How can I get some samples?
We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.
3、Can I visit your factory?
Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
