Which is very necessary in conveyor equipment because it can save human labour to clean the site and keep people safe and improve the working efficient. Especial the power and small lump factory, the skirting rubber can really provide a better working environment for you.

PRODUCT PARAMETERS

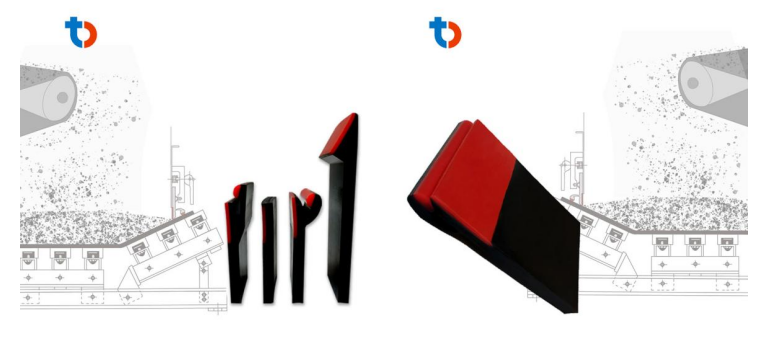

We produce many types of conveyor skirt board for your options:

——Double lips convyor belt skirting

——Flat rubber skirt board

——T/I Type Skirting board

——Y Type Skirting board

——Polyurethane skirt board with beveled edge

Dual seal skirt board

Double layer structure, inside layer keeps materials, outside layer prevent dust-leakage. The parts where contact the belt is made of polyurethane, which have longer lifetime and do not damage the belt. Clamp units are easy to install, adjust and maintain.

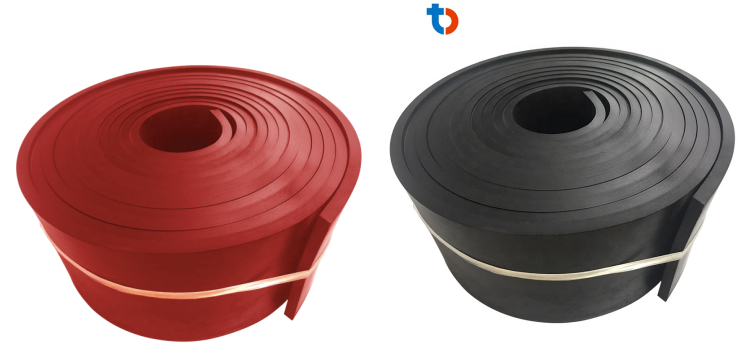

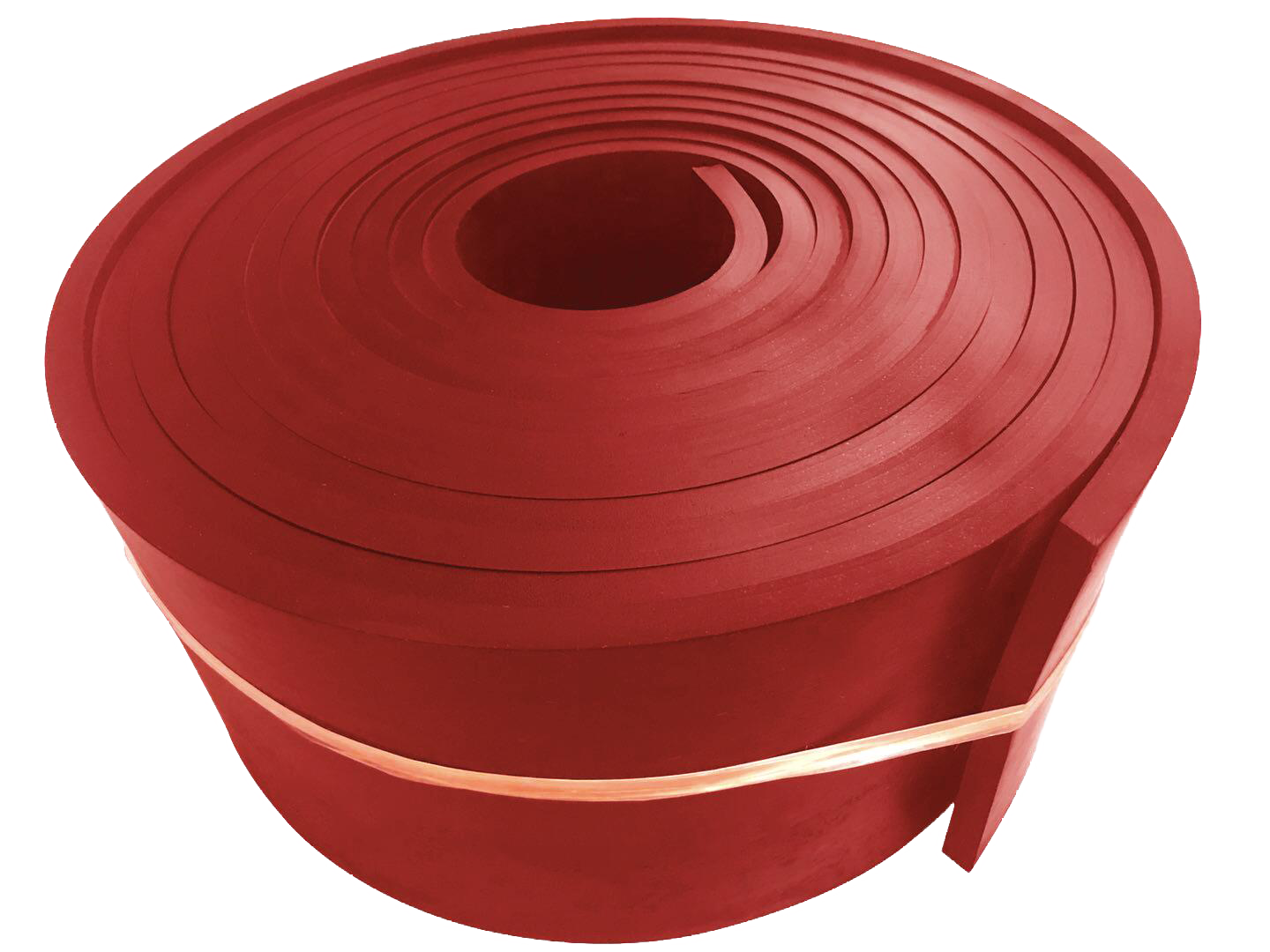

Flat/Beveled rubber skirt board

Flat rubber skirt board will last longer than conventional skirt board rubber. 50+/-5 provides good sealing against conveyor belt to keep material.

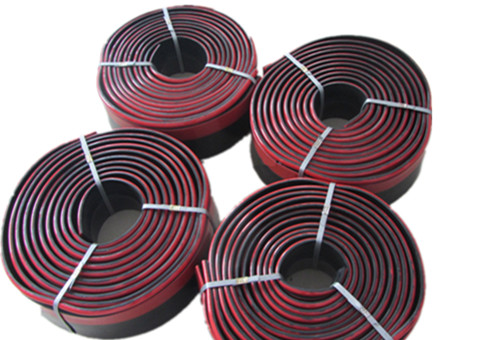

Flat rubber skirt board size

Length: 10～30 meters per oll

Width: 150～350mm

Thickness: 10～30mm



Poly urethane Conveyor Skirt Board is made of an extremely tough 70 Durometer Polyurethane that last an average of 3-5 times longer than rubber skirting equivalents.

Beveled edge that matches the troughing angle of your belt, eliminating the"break-in"adjustment and providing an even greater advantage.

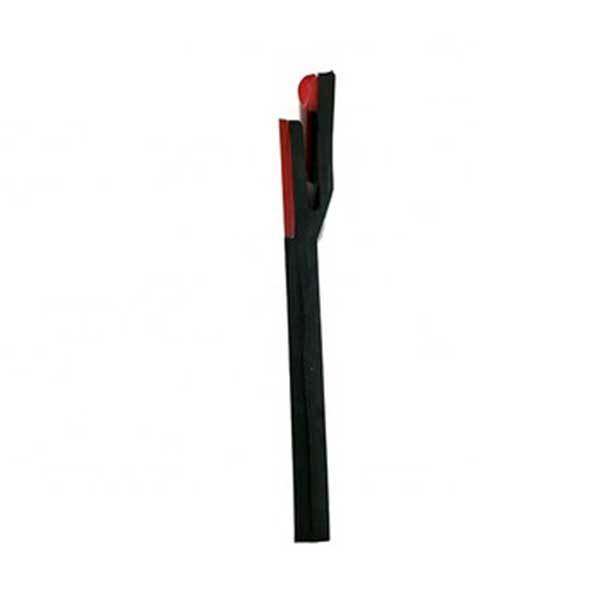

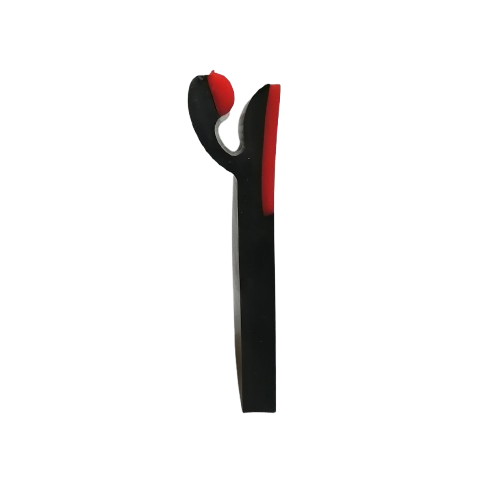

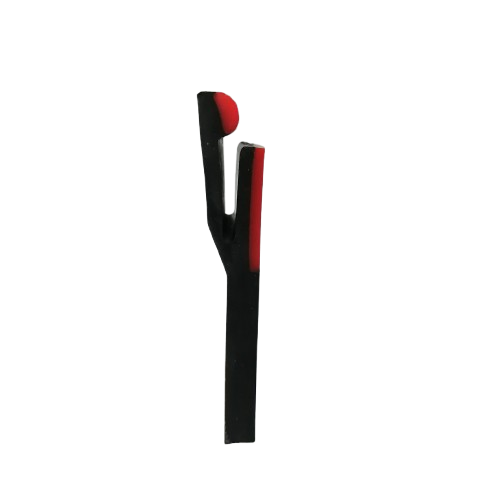

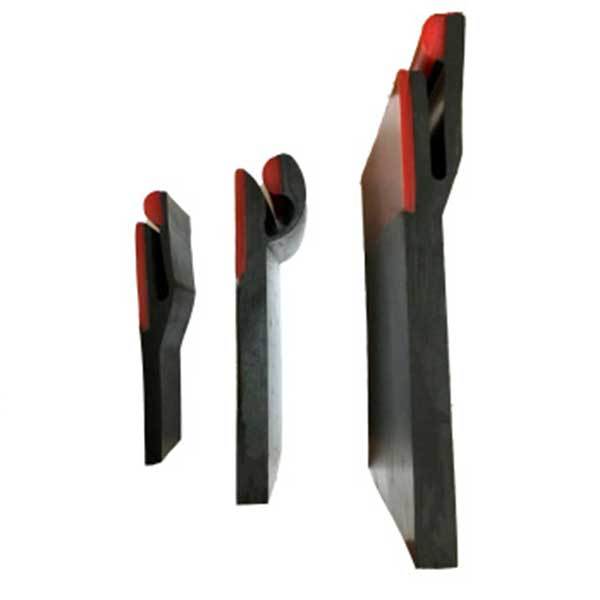

Y shape skirting rubber

Y shape skirting rubber, which can double prevent the dust and materials overflow the belt in belt blanking part. It is made by both PU and NR, PU can better protect the belt surface because it is very smooth and also with good corrosion resistant function, NR with good flexible can provide a better long service life. It is very suitable for some rock, lump, mining and metal factories.

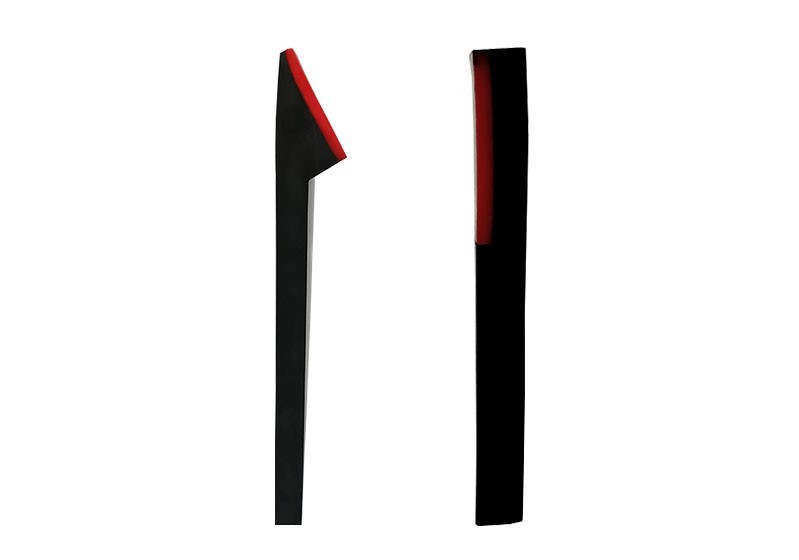

T/I shape skirting rubber

T/I shape skirting rubber adopts a straight PU plate combine a straight rubber plate to be closely attached to the side of the guide chute, and the bottom is in contact with the belt to prevent

material overflow. It is suitable for grain, cement, mineral factory.







  Skirt Board Rubber Parameter

           PU Part

                 Polyurethane                                              Red

                       Material                                                                                   Poly Liner Color



                      75—85 Shore A                                          1.3

                       Hardness                                                                                 Specific Gravity



                     350—450%(at break)                                 2.5—6Mpa

                     Rubber Elongation                                                                  Tensile strength

            Rubber Part

                    Black                                                            300%

                    Rubber Color                                                                             Elongation at break



                   SBR Rubber                                                 1.3

                   Base Polymer                                                                            Specific Gravity



                  55—65 Shore A

                  Hardness

---

Conveyor Skirt Board Features

*Double layer structure, inside layer keeps materials, outside layer prevents dust-leakage.

*The parts where contact the belt is made of polyurethane, which have longer lifetime and do not damage the belt.

*The ultra-high molecular weight polyethylene components have a low friction coefficient, ensuring smooth passage of the conveyor belt without damaging the belt.

*Clamp units are easy to install, adjust and maintain.

---

Advantage

——The overall anti overflow skirt adopts the double sealing structure of straight plate and skirt, with excellent sealing effect.

——Straight plate: its function is to block large particle materials. At the bottom of the straight plate, the part in contact with the belt is "herringbone" polyurethane, which has large volume and longer wear time.

——Skirt head: it is used to prevent dust overflow and is the most severely worn part. By adding special formula high-pressure casting polyurethane, the service life of anti overflow skirt is greatly improved. After actual use on site, the service life of anti overflow skirt is ≥ 1 year when the belt speed is 7.5m /'s.

——The ear section of skirt adopts natural rubber with good elasticity. By the action of this elastic force, the skirt head exerts appropriate pressure on the belt to keep the skirt head close to the belt all the time, so as to ensure that the dust does not overflow.

——The inner side of the skirt head adopts unilateral arc transition. When the belt deviates, it will not hurt the head of the belt and skirt. When the belt returns to normal, the skirt head will automatically return to its original state.

——The overall material has good elasticity, low temperature resistance and no cracking.

——It has flame retardant and antistatic characteristics and is safer to use.

——The skirt at each side of the guide chute shall be made into a whole as required, which shall be the same length as the guide chute to prevent air leakage at the joint.

---

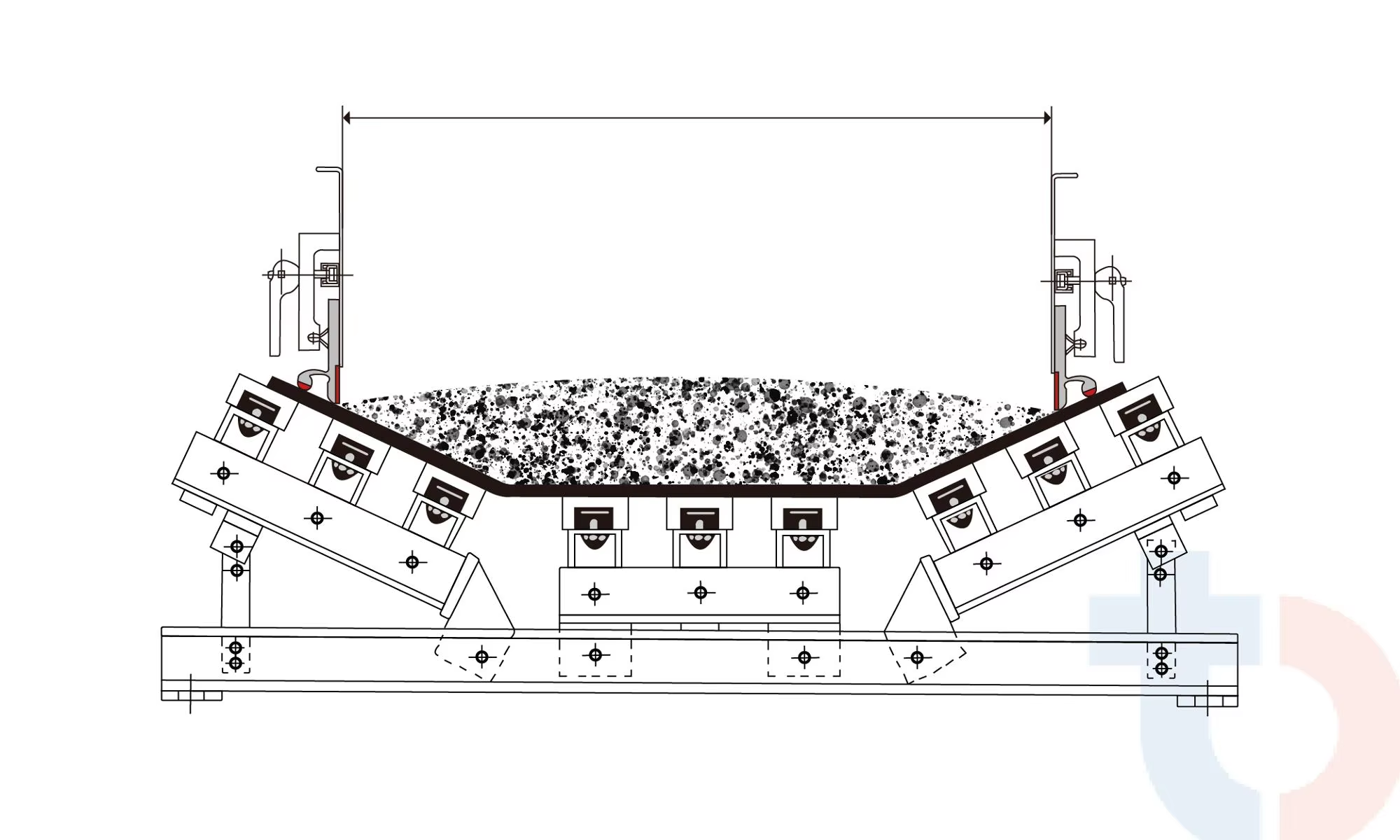

Installation instructions

1. The gripper is used together with angle aluminum, and two sets of grippers are used per meter.

2. The height of anti overflow skirt can be adjusted according to the actual size of guide chute.

Angle aluminum (40mm) × 40mm) one-time pressing molding, material: all aluminum, beautiful appearance, no rust, it is a circular column, locked in the holder without falling off.The gripper adopts hot-dip galvanizing, with light weight, good anti-corrosion performance and no rust.The fastening bolt is made of stainless steel 304, which will never rust. It is suitable for use in dark, humid or even short-term water flushing environment.

Order NO.	Product Name	Dimension/mm
ZJ-Y-100	Y-type rubber skirt	10/15/20/25*100*1000
ZJ-Y-150	Y-type rubber skirt	10/15/20/25*150*1000
ZJ-Y-200	Y-type rubber skirt	10/15/20/25*200*1000
ZJ-Y-250	Y-type rubber skirt	10/15/20/25*250*1000
ZJ-Y-300	Y-type rubber skirt	10/15/20/25*300*1000
ZJ-Y-350	Y-type rubber skirt	10/15/20/25*350*1000

Quality Certifications

PU Part
Material	Polyurethane
Poly Liner Color	Red
Specific Gravity	1.3
Hardness	90±5 Shore A
Rubber Elongation	350-450%(at break)
Tensile strength	50.3Mpa
DIN wear abrasive	39%
Rebound rate	69mm³

Rubber Part
Rubber Color	Black
Poly Liner Color	Red
Base Polymer	SBR Rubber
Specific Gravity	1.3
Hardness	60-70 Shore A
Rubber Tensile Strength	17-21MPA (2400-3100PSI)
Rubber Elongation	350-500%(at berak)

Technical parameters:

1. Thickness of main board: 10/15/20/25mm.

2. Width: 100mm-350mm

3. Length: equal to the length of the guide chute according to the actual needs of the site.

---

Parameters



Brand	BAI-OTT or OEM
Model Number	ZJ-Y
Material	SBR+Rubber+PU
Colour	Orange, Black, Red, Blue, or Customised
Belt Width	100mm—350mm
Belt Speed	Up to 1500 fpm (7.5m/s)
Hardness	60—70 Shore A
Size	3/4 inch, 6 inches, 10 inches or Custom
Application	Coal mines, Cement plants, Steel plants, Power plants and other factories
Facture	High temp+Double seal
Corrosive Conditions	YES
Underground Applications	YSE
Product Inspection	Available
Lead time	Ready to ship in stock
MOQ	50 Meters
Shelf Life	12 Months
Supply capacity	6000 meters/month
Certification	ISO9001; ISO14001; ISO45001; CE; UPEM
Packing	Pallet, Wooden case
Delivery Time	50～300 Meter, 1-3days / 500～1000Mater, 3-5days

---

FAQ

1、How long will your rubber sheets last?

Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.

2、How can I get some samples?

We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.

3、Can I visit your factory?

Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
