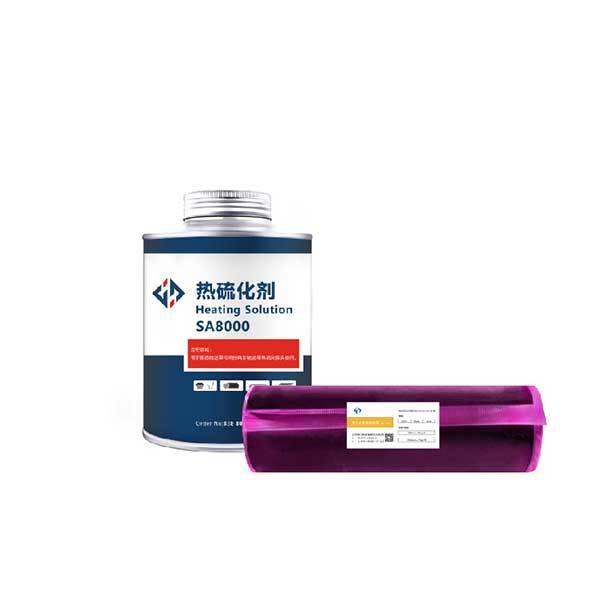

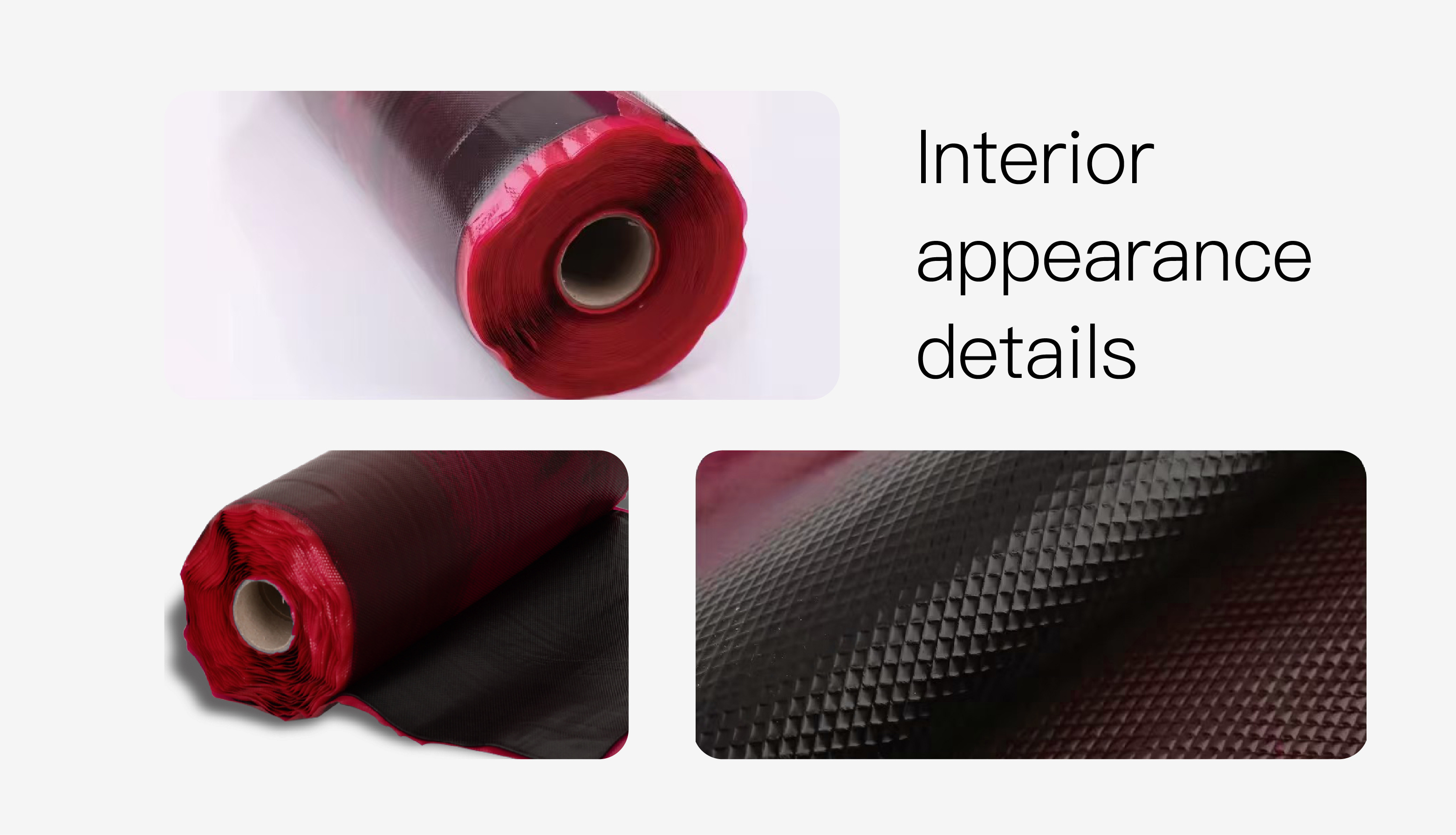

BAI-OTT Unvulcanised Intermediate Rubber is an unvulcanised black colloid used for vulcanising conveyor belt joints and for vulcanising repairs to broken conveyor belts. It is used in combination with ZJ-STB unvulcanised top rubber and hot vulcanising paste SA8000.
Conveyor Belt Splicing Rubber
——Tie Gum
——Cover Rubber
——Belt Noodle Gum

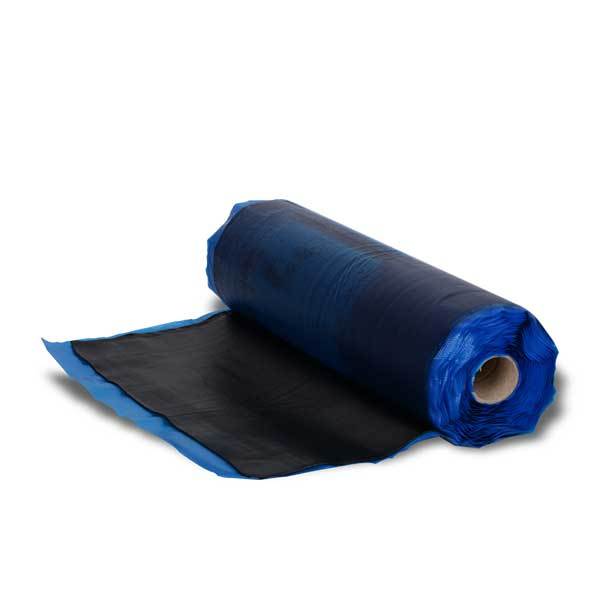

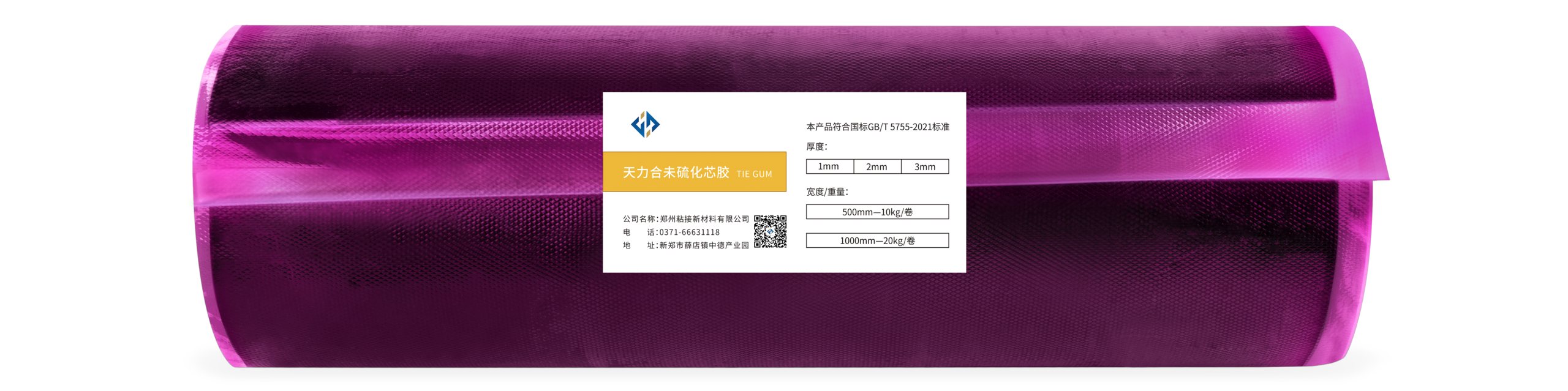

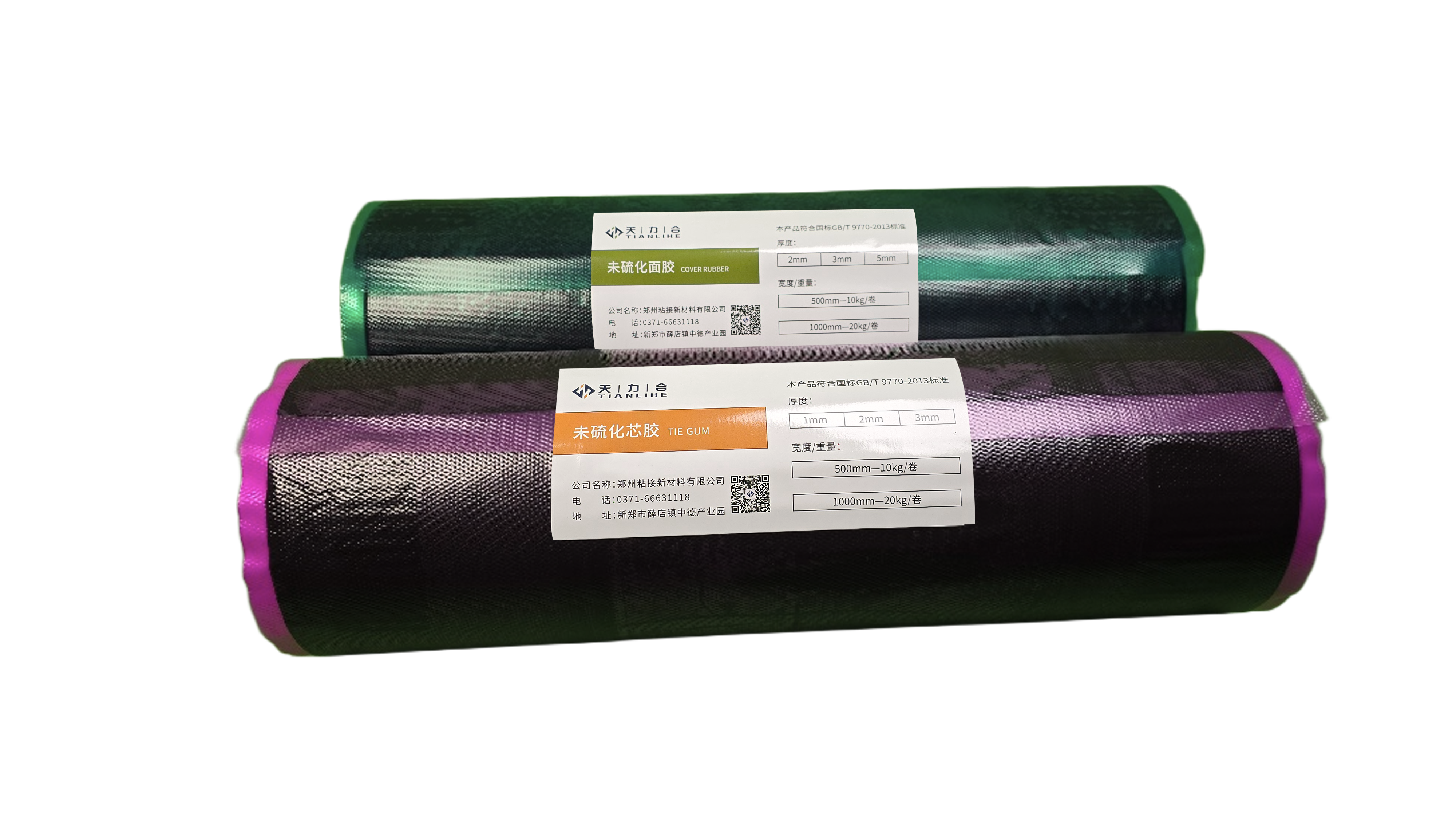

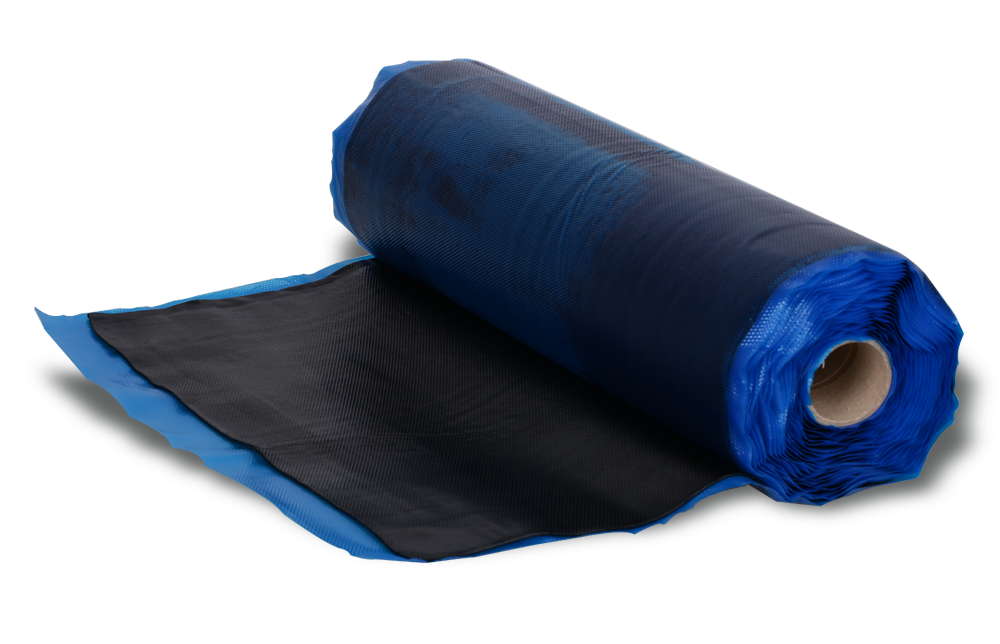

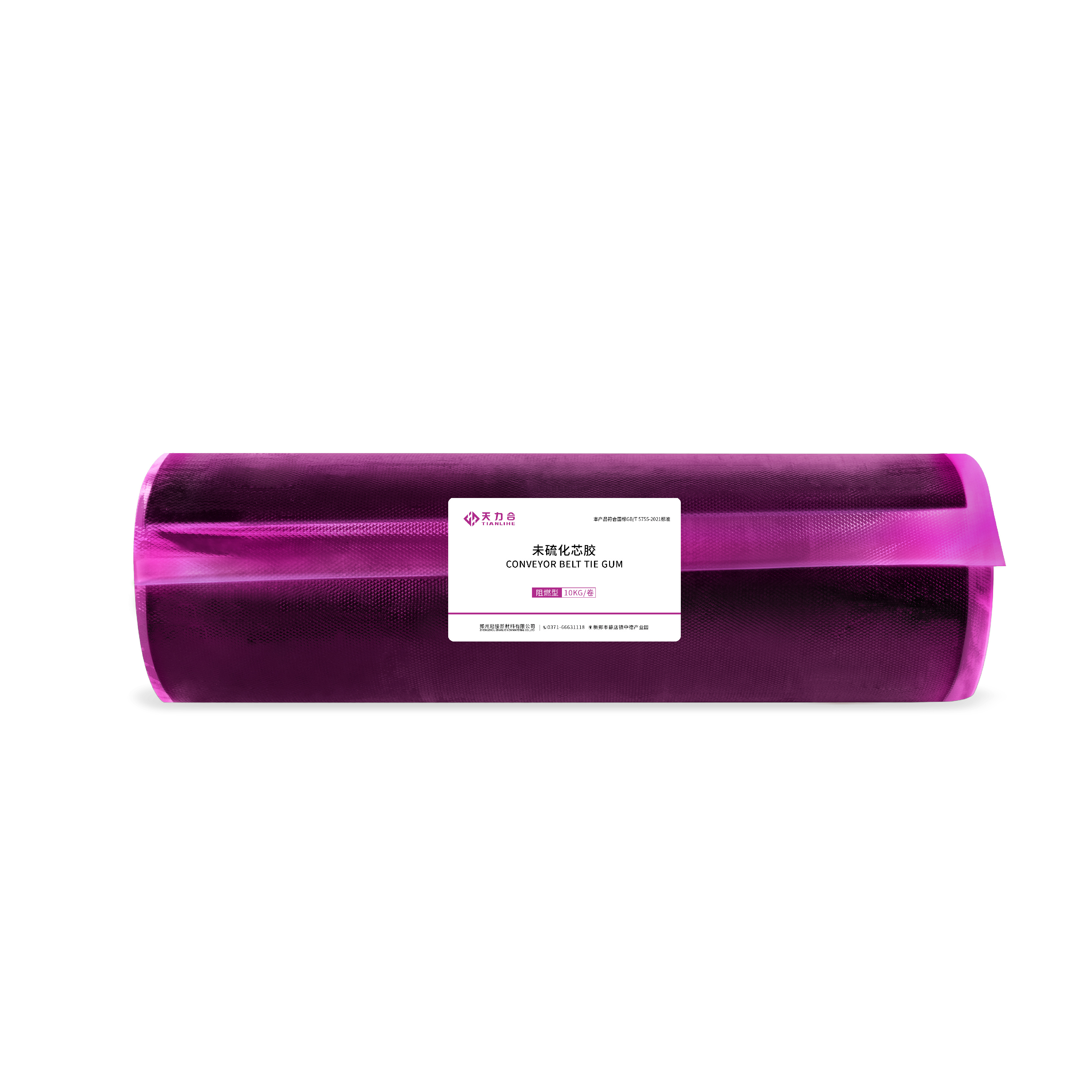

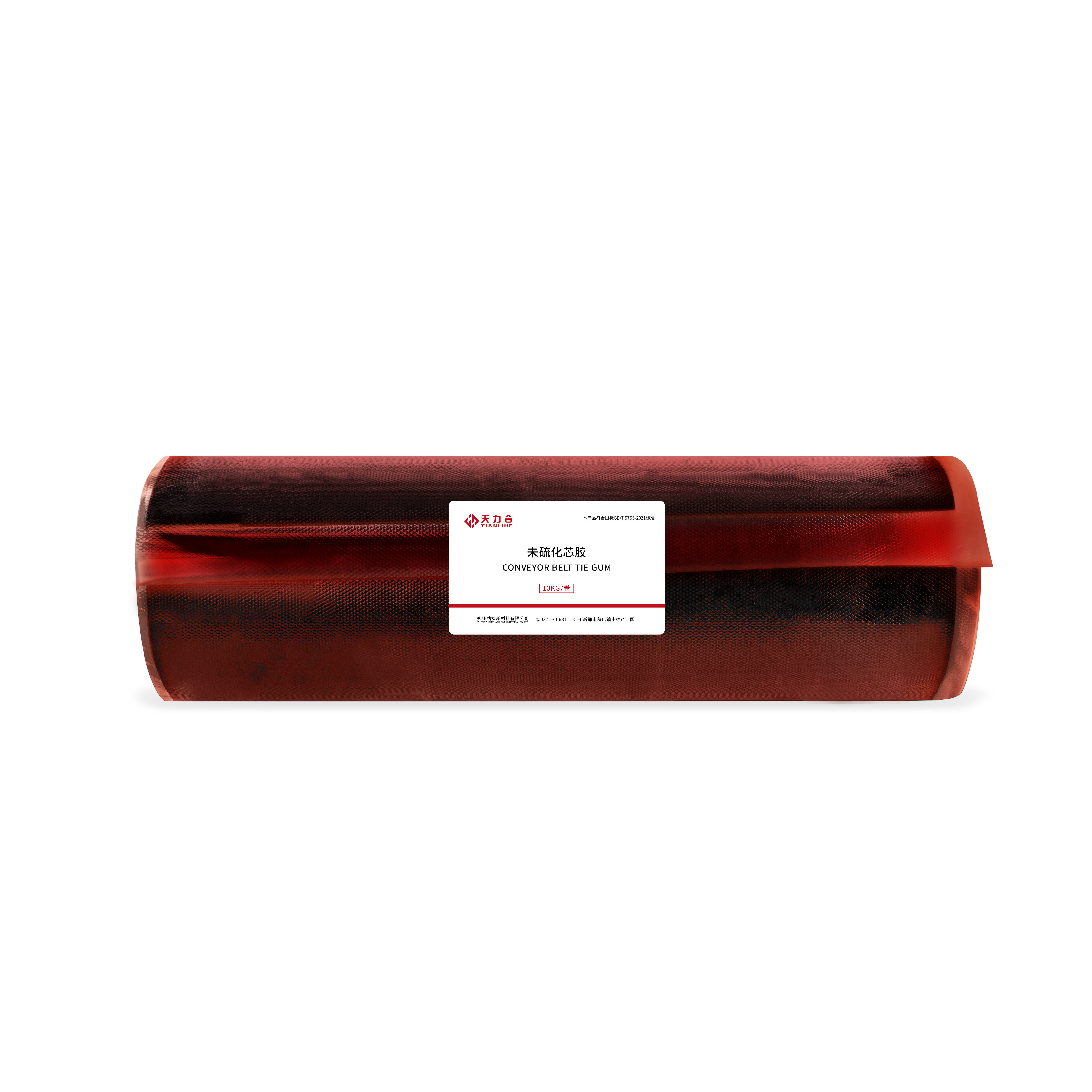

Conveyor Tie Gum (ZJ-FTG/STG)
Tie Gum is an uncured rubber for hot vulcanized belt splicing. It is designed to use as an inter-core cord splicing steel cord conveyor belts or a tie gum in fabric belts.

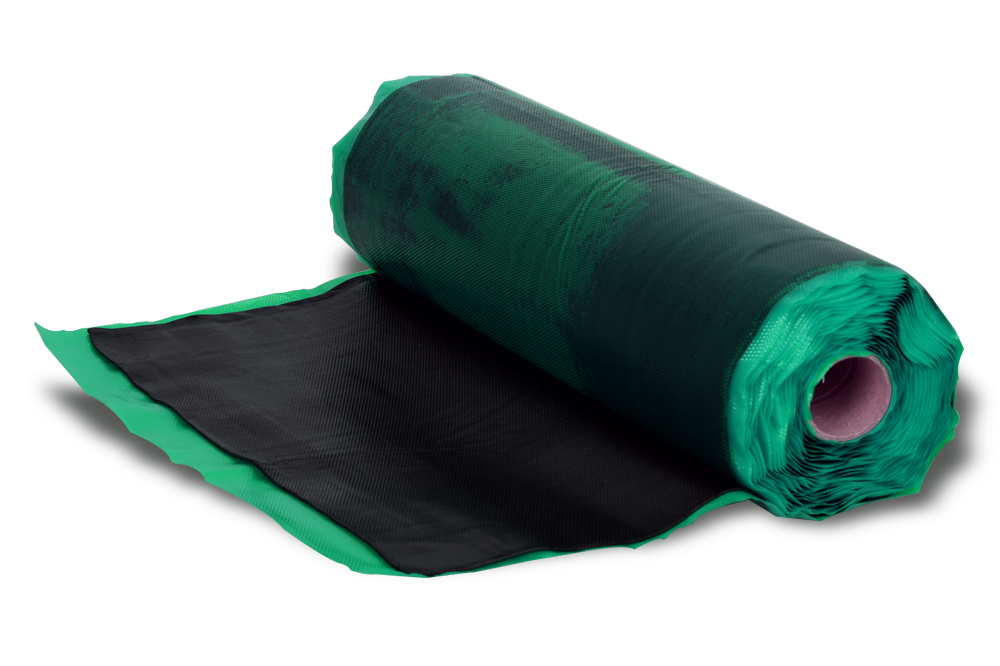

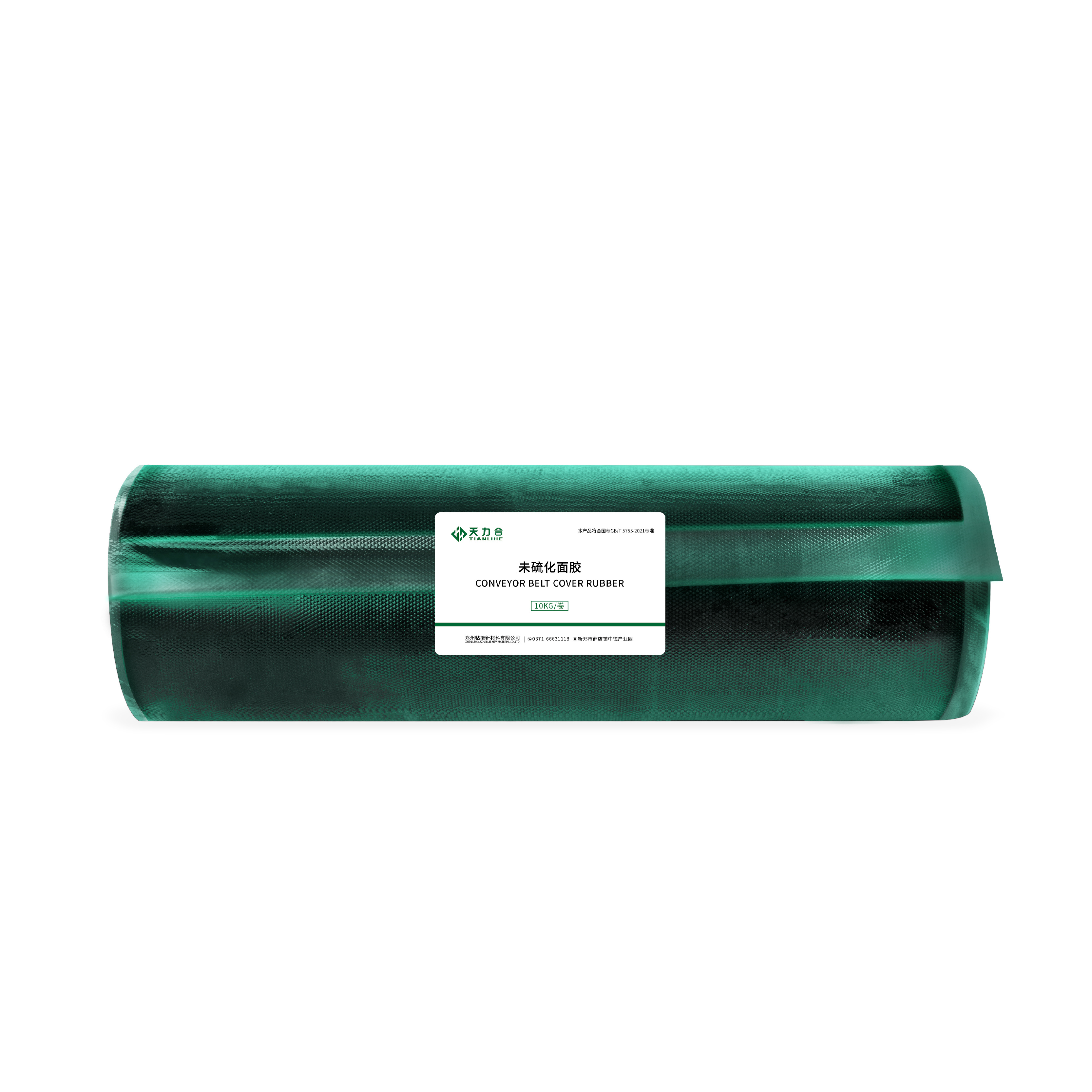

Cover Rubber (ZJ-STB/ ZJ-PVG)
Cover rubber is designed for use as a cover rubber replacement material in splicing steel cord and fabric conveyor belts. The material is designed to bond to cured cover rubber in all standard grades of steel cord and fabric conveyor belts.

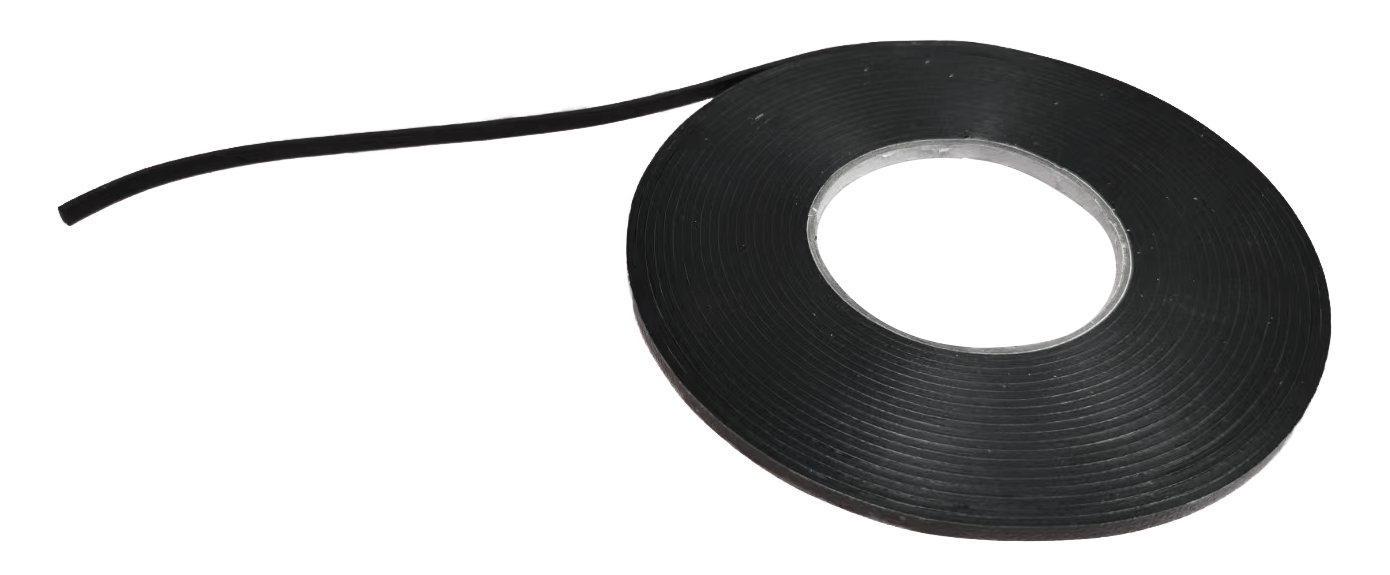

Belt Noodle Gum (ZJ-TNG)
Wire rope conveyor belt hot splicing using gap filing adhesive, can effectively enhance the strength of the conveyor belt hot splicing, so that the splicing effect is better.
This product needs to be used as a complete set to avoid negative reaction with different brands of glue heating and mixing!
Usage Notes
1、Nylon canvas conveyor belt is laid on the working surface and non-working surface step part at the interface of conveyor belt after stripping and swinging.
2、Wire rope conveyor belt is laid on the top and bottom of the wire rope after the steel wire is arranged.
Product Specification
Uncured tie gum rubber for fabric conveyor belt
| Order No. | Product Name | Dimension(mm) | Weight(kg) | Package |
| ZJ-FTG-0508 | Uncured Tie Gum Rubber | 0.8*500 | 10 | 1 Roll / Carton |
| ZJ-FTG-0501 | Uncured Tie Gum Rubber | 1*500 | 10 | 1 Roll / Carton |
| ZJ-FTG-1001 | Uncured Tie Gum Rubber | 1*1000 | 20 | 1 Roll / Carton |
Uncured tie gum rubber for steel cord conveyor belt
| Order No. | Product Name | Dimension(mm) | Weight(kg) | Package |
| ZJ-STG-0502 | Uncured Tie Gum Rubber | 2*500 | 10 | 1 Roll / Carton |
| ZJ-STG-0503 | Uncured Tie Gum Rubber | 3*500 | 10 | 1 Roll / Carton |
| ZJ-STG-0504 | Uncured Tie Gum Rubber | 4*500 | 10 | 1 Roll / Carton |
| ZJ-STG-1002 | Uncured Tie Gum Rubber | 2*1000 | 20 | 1 Roll / Carton |
| ZJ-STG-1003 | Uncured Tie Gum Rubber | 3*1000 | 20 | 1 Roll / Carton |
Parameters
| Brand | BAI-OTT / OEM |
| Main ingredient | NR |
| Model | ZJ-FTG / ZJ-STG |
| colour | Black |
| Dimension | 0.8/1/2/3/4/5mm*500/1000mm |
| Application | NR/SR/SBR/BR Conveyor Belt Vulcanization |
| Feature | Safe and High Strength |
| Hardness | 65-75 Shore A |
| Density | 1.15-1.21g/cm³ |
| Tensile | 17-22Mpa |
| Elongation at break | 300-500% |
| Sample | Provide |
| Product Inspection | Available |
| Lead time | Ready to ship in stock |
| MOQ | 1 Roll |
| Warranty | 24 Months |
| Supply capacity | 5000 rolls/month |
| Certification | ISO9001;ISO14001;ISO45001;CE;UPEM |
| Packing | Pallet, wooden case |
| Delivery Time | 50～100 Rolls, 3-5 days/ 200～500 Rolls, 7-10 days |
FAQ
1、How long will your rubber sheets last?
Each conveyor system transports different materials, so the friction coefficient generated can not be determined, you can tell me your requirements and transport materials, we help you to develop a solution.
2、How can I get some samples?
We will finish the samples within 3 days after you confirm our quotation and send us the sample fee. You can ask the courier company to pick up the samples from our company, or you can send us the collect account number of DHL, FedEx or UPS, we can send the samples to you through your account.
3、Can I visit your factory?
Yes, you are welcome to visit our factory anytime, we are near Henan Xinzheng Airport, only 15 minutes drive, we can arrange a car to pick you up.
